PRO1200 COMPONENT CAT5 EXTENDER + IR

PRO1200 COMPONENT CAT5 EXTENDER + IR
Code: 39894072

Additional Images

39894072398940723989407239894072398940723989407239894072

COMPONENT OVER CAT5 WITH IR KIT

Send component signals over long distances using economical CAT5 cable and control your AV devices remotely.

Specifications

  • 3x RCA (Y/Pb/Pr) female connectors
  • UTP: 110-type rear punchdown
  • Impedance: 100 ohm unbalanced
  • Bandwidth: Video: DC~60 MHz
  • Distance: Over Category 5e/6 UTP cable:
    • 480p video, up to 100 meters
    • 720p video, up to 75 meters
    • 1080i video, up to 50 meters



Infrared Component

  • Receive Frequency: 34kHz to 40kHz
  • Transmit Frequency: 38kHz
  • Range: On Axis – 50ft 30º Off Axis – 40ft



Kit includes

  • Component Video Transmitter and Receiver
  • PRO1178 IR receiver
  • PRO1142 Dual IR emitter
  • Power: 12VDC 200mA




Downloads

Sell Sheet

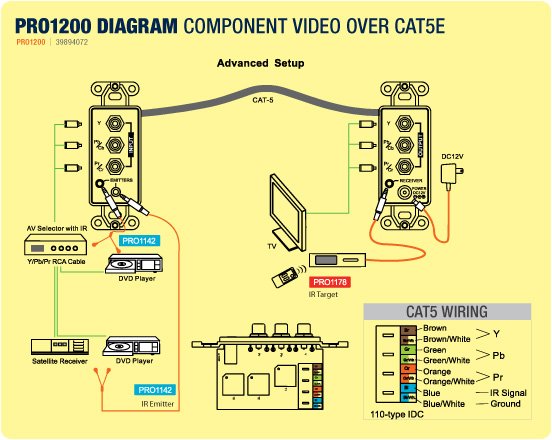

Wiring diagram

Manual
