HDMIIPLR HDMI OVER IP CAT6 EXTENDER

HDMIIPLR HDMI OVER IP CAT6 EXTENDER
Code: 07351012

Additional Images

07351012073510120735101207351012073510120735101207351012

Discontinued


The HDMIIPLR HDMI over CAT6 Extender will send 1080p@60Hz HDMI signals with Deep Colour over a single CAT6 cable to a distance of up to 100 metres.

Use the HDMIIPLR and the HDMIIPLRS Spare Receiver to create a system with up to 16 Sources (Transmitters) and 200 Outputs (Receivers)! IR Pass-through means no more running a separate IR extender system to control your sources.

Demonstration Video



{tab=Features}

  • HDCP Compliant
  • Distribute HD signals in 576p/720p/1080p using a CAT6 cable
  • 1080p resolution up to 100m/330ft
  • Create a transmitter/ receiver cascade to extend distance and build up a HDMI splitter system
  • Easy installation via a single CAT6 cable
    – no need to adjust gain or equalizer settings
  • IR pass-through function to switch HDMI source device, IR frequency range: 38-56kHz
  • High quality metal chassis
  • No video quality loss
  • VESA compatible mounting holes
  • LED source input display
  • IR Remote control for changing receiver source



{tab=Specifications}

Video Amplifier Bandwidth 225 MHz
Video Output 1080p/60 and 1920×1200 max. res
Input DDC Signal 5 Volts p-p (TTL); Input Video Signal: 1.2 Volts p-p
HDMI Connector Type A, 19 Pin Female
Link Connector RJ45 Shielded
Power Supply 5V DC / Power Consumption: 5 Watts max.
Operating Temperature 0°C – 40°C
PERFORMANCE
Accepted HDTV Resolutions 480p, 576p, 720p, 1080i, 1080p
Standard TV Resolution 480i
Maximum HDMI Cable Length Input: 15 feet Max, Output: 180 feet Max
Video Bandwidth 6.95Gbps
Input Video Signal 1.2 Volts P-P
Input DDC Signal 5.0 Volts P-P
I/O CONNECTORS

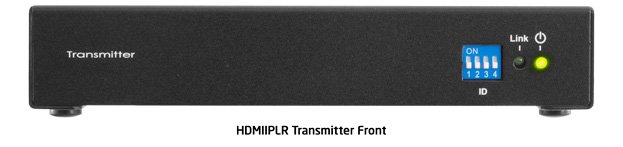

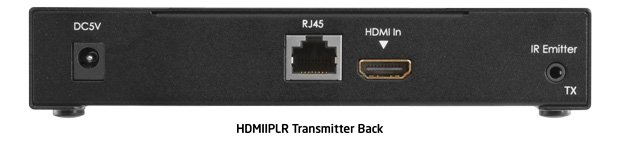

Transmitter
Inputs 1 HDMI-A 19PIN Socket
Outputs 1 RJ45 Jack
1 3.5mm Jack-IR Emitter
Receiver
Inputs 1 RJ45 Jack
1 IR Receiver Module
Outputs 1 HDMI-A 19PIN Socket
MECHNICAL
Transmitter
Dimensions (H-W-D) 162.3×114.85x30mm
Weight 0.5kg
Receiver
Dimensions (H-W-D) 162.3×141.85x30mm
Weight 0.5kg
WARRANTY
Limited Warranty 1 Year Parts and Labor
ENVIRONMENTAL
Operating Temperature 0° to 40°C (32°to 104°F)
Operating Humidity 10% to 85% (Non-condensing)
Storage Temperature -20°to +60°(+20°to +140°F)
Storage Humidity 10% to 85% (Non-condensing)
REMOTE CONTROL
Infrared Yes (Sensor on front of receiver)
Pass-through Yes; 38-56kHz frequency range
POWER REQUIREMENTS
External Power Supply 5VDC@2A
Power Consumption 10 Watts (Max.)
SAFETY
Certificate FCC, CE, RoHS
Power Adapter UL, CE, CSA, CEC, RoHS
ACCESSORIES
AC Power Adapter x 2
IR emitter x 1
IR sensor/receiver x 1
Remote Control (IR) x 1
Instruction Manual x 1



{tab=Connection Diagrams}

One-to-One System
Connection diagram: One-to-One

One-to-Many System
Connection diagram: One-to-Many

Many-to-Many System
Connection diagram: Many-to-Many



{tab=FAQs}

I’m inputting 1080i resolution from my Foxtel IQ2, yet my display is receiving 720P. Is this correct?
The HDMIIPLR will output in 576P, 720P or 1080P. If your signal is 1080i, it will output 720P on the display.

What was our measured current draw for the transmitter and receiver?
The max. current draw that we measured was 1.1a (5v) for the transmitter and 0.9a (5v) for the receiver.

Is there 3D support?
Please note that the HDMIIPLR does not support 3D

{/tabs}
