PRO1303 ACTIVE VGA & AUDIO OVER CAT5

PRO1303 ACTIVE VGA & AUDIO OVER CAT5
Code: 07350103

Additional Images

0735010307350103

Discontinued

Perfect for conference room installations, bars / clubs and function spaces, restaurants, and advertising. Enables long runs (up to 300m) of VGA+Audio (analogue) with little loss of quality, no delay, and low cost!

Features

  • Extend VGA+Audio (analogue) up to 300m using a single CAT5 / 5e / 6 UTP cable
  • 350MHz signal transmission bandwidth
  • Adjustable Sharpness (EQ) and Brightness (GAIN)
  • "Local" VGA+Audio output from transmitter
  • Dual VGA+Audio output from receiver
    • Active outputs from built-in Distribution Amplifier
  • 12VDC / 1.2A Power supplies



Package Contents

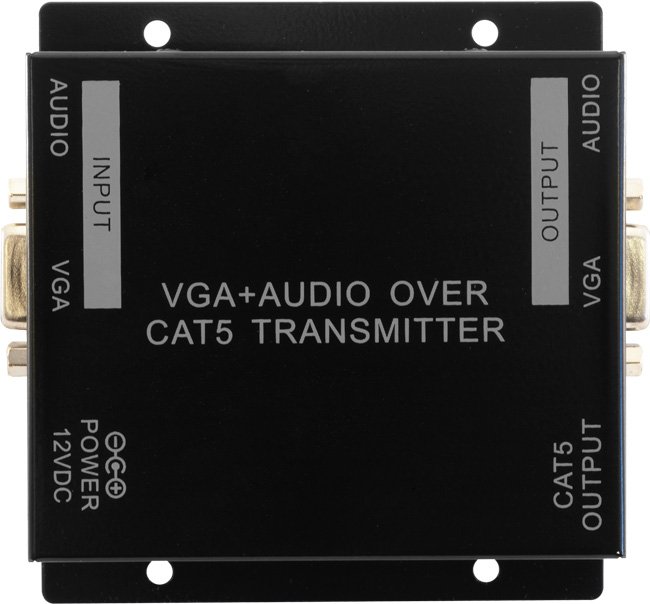

  • 1x Transmitter unit

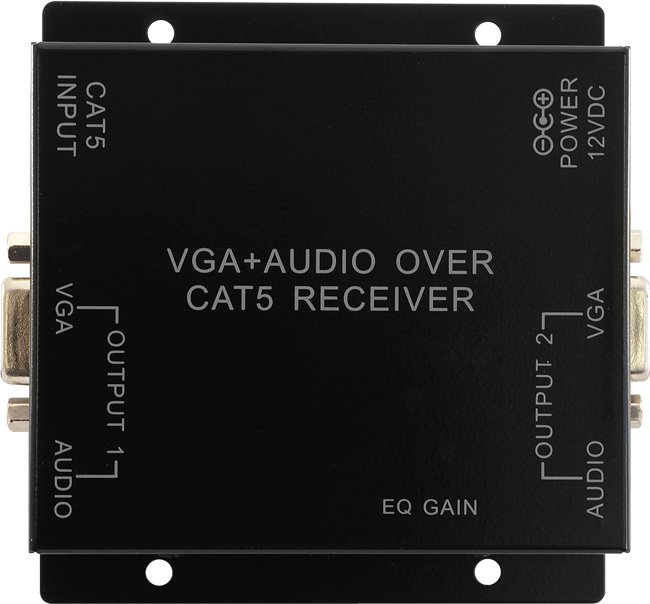

  • 1x Receiver unit
  • 2x 12VDC / 1.2A Power supplies
  • 8x Mounting screws
  • 1x User Manual



Specifications

Recommended run lengths based on input resolution

640×480 (VGA) 300 metres
800×600 (SVGA) 200 metres
1024×768 (XGA) 180 metres
1280×1024 (SXGA) 120 metres
1600×1200 (UXGA) 100 metres
Note: based on CAT5 cable
