RFMX3IR 3 INPUT RF MODULATOR

RFMX3IR 3 INPUT RF MODULATOR
Code: 37400052

With Analogue TV broadcasts shutting off very soon, upgrade your existing TV and AV distribution system without buying new TVs or having to install multiple Digital STBs. Simply install and configure one digital receiver, and distribute it to your existing analogue TVs.

With room for two more AV sources, you can connect a DVD player and Digital Media Player—perfect for home installations—or a further two digital receivers for commercial installations where each STB can provide one digital channel for each modulated analogue channel.

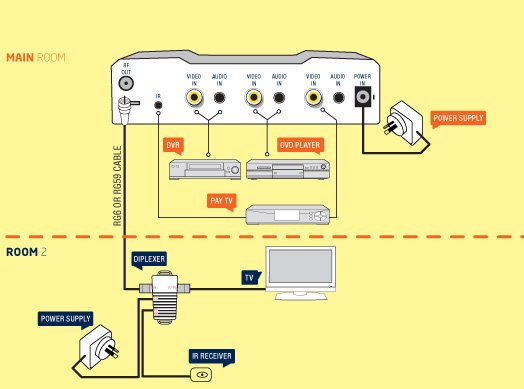

With the correct know-how it is also possible to connect multiple TVs and even multiple modulators via DC+IR passing Splitters/Combiners. You can even inject the modulator output into your existing antenna feed if you use the correct combination of splitters/combiners and DC/IR blockers. Please seek advice if you are intending to use the RFMX3IR in this way.

Features

Features

  • Convert and transport 3x Analogue AV sources over RF
  • IR Return allows you to control your source devices from the viewing rooms
    • Works with Foxtel iQ2
  • Each source transmitted on individually configurable UHF Channels



Specifications

Specifications

  • TV system: PAL G/I/K and NTSC
  • Frequency range: 470~862MHz, NTSC: 470~885MHz
  • Max. Output level: 85dBuV
  • RF output channel: CH21-CH69
  • Video Input Port: RCA Jack
  • Audio Input Port: 3.5mm Stereo Jack
  • RF Out Port: F-(f)
  • Remote Control Frequency: 10.7MHz
  • IR Carrier Frequency: 32~38KHz
  • Power Supply: 7.5V DC 300mA
  • Small and compact aluminium housing design
  • High stability PLL technology
  • Remote control the A/V source with IR extender
  • Convert audio/Video signal into TV signal
