Code: 64600210

Additional Images



Keep your messy and sometimes noisy HD video sources in another room or hidden away in a cabinet on the other side of your entertainment room, wirelessly connecting them in their Full HD glory to your TV or Projector.

Easy plug-and-play system that requires no setup – no ugly cables – no loss of video or sound quality – and so simple anyone can set it up.

The WHDMI2 Wireless HDMI AV Sender Kit consists of a wireless transmitter and receiver that work together to transmit HDMI video at distances of up to 20m. The kit supports 1080p resolution with less than 1ms latency for smooth video playback.

The compact transmitter is a great choice for sending HDMI sources to any one location without the hassle of wires. The device is completely plug-and-play, so there are no drivers or software to install.

The WHDMI2 Wireless HDMI AV Sender Kit also enables remote control IR signals to return to the Transmitter sources, allowing full control of remote sources using their original remotes.

WHDI™ (Wireless Home Digital Interface) revolutionizes the home multimedia experience by wirelessly delivering interactive HD video.

The technology enables wireless delivery of uncompressed HDTV throughout the home with video rates of up to 1080p in the 5Ghz unlicensed band. It surpasses competitive technologies by providing outstanding and consistent picture quality equivalent to wired HDMI cable, low latency, multi-room availability and low power consumption.

The WHDMI2 Wireless HDMI AV Sender Kit uses WHDI™ technology so you can rest assured performance conforms to the new industry standard!

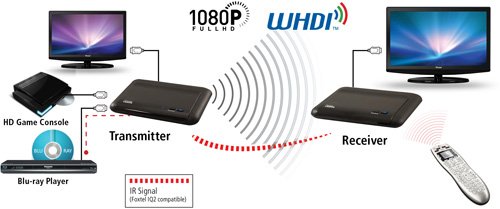

  • Wirelessly send and switch between two HDMI sources using new WHDI™ technology
  • Full HD 1080p uncompressed HDMI transmission*
  • Send up to 20metres, through walls and floors
  • IR Remote control extender built-in
  • Very low latency – less than 1ms – ideal for no lip sync issues and responsive console/video gaming.
  • Supports HDMI CEC and HDCP

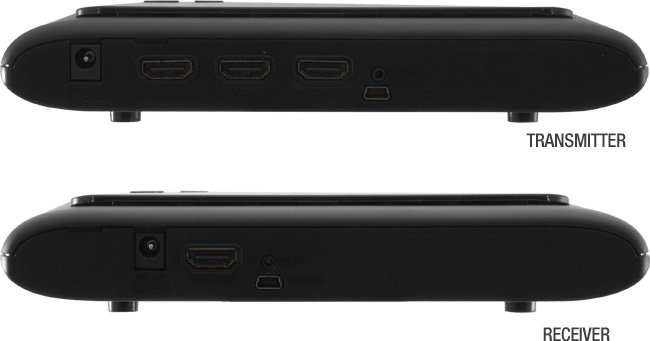

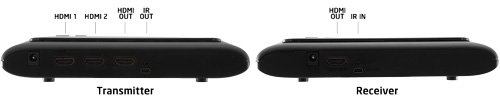

  • HDMI output at transmitter for HDMI Switcher functionality and local viewing of video.

* Does not support 3D video formats


  • Supported resolutions: 1080P, 1080i, 720p, 576p, 480p
  • Up to 6Mbps AC-3 and DTS audio transmission
  • System Latency: Less than 1ms
  • Supported IR blasting frequency: 36KHz/38KHz
  • Power Supply: 100~240V AC in, 5V DC out power adapter
  • Operating temperature: 0 ~ 40C

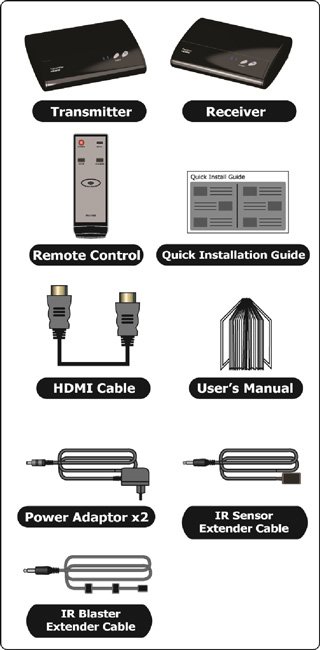

{tab=Package Contents}

  • 2x 5V power supplies
  • 1x 1m HDMI Cable
  • Quick Start Guide
  • User Manual
  • IR sensor extender cable
  • IR blaster extender cable

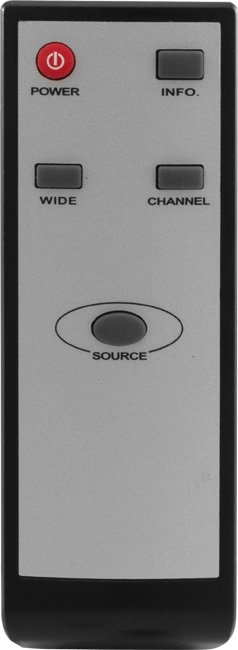

  • Remote control unit with batteries



WHDMI2 Sell Sheet (700kb)

WHDMI2 Install Guide (3mb)

WHDMI2 manual (908kb)
