HDMI4AVR 4 WAY SWITCH WITH ARC AND 3D

HDMI4AVR 4 WAY SWITCH WITH ARC AND 3D
Code: 64538014

Additional Images

6453801464538014

Plus Toslink and Coaxial audio output

HDMI4AVR Switcher can expand HDMI input of your HDMI display device up to 4 HDMI inputs. The Switcher offers single cable connection solution to TV; instead of connecting 4 HDMI cables to your HDTV. You will find this is a useful application when you try to hang a TV on wall.

The feature designed SPDIF digital audio output (Coaxial & Optical) makes users easily share the digital audio of the 4 source devices by connecting one coaxial or optical audio cable to an audio system which does not support HDMI connection. Moreover, the new added feature of supporting 3D video format also helps you enjoy the true 3D content more easily.

Audio Return Channel (ARC) function
Enables a TV to send audio data through a single HDMI cable to an amplifier; which can eliminate the need to connect an additional cable to the amplifier.

Features

  • Audio Return Channel (ARC) function supported
  • HDMI 3D video format supported
  • Expand 4 HDMI sources on your HDTV devices or home theater system
  • Support 1080P/12-bit deep color HDTV; Support Pixel clock rate up to 225 MHz
  • HDCP compliant
  • Support digital S/PDIF audio output (coaxial & optical)
  • DTSHD, Dolby TrueHD lossless compressed digital audio compliant
  • Gold plated connectors
  • Specified modes selection for audio format setting

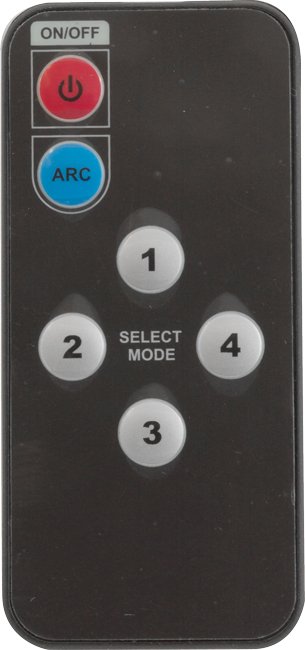

  • IR remote control
  • Switch box ARC function enable/disable control
  • HDMI CEC functions supported



Specifications

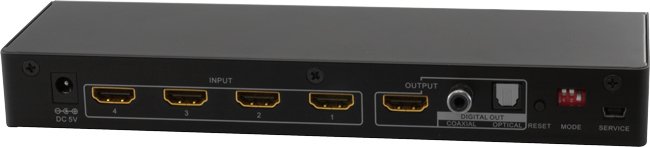

  • Input ports
    • HDMI Receiver (Type A 19-pin female)
  • Output port
    • Port 1 HDMI Transmitter (Type A 19-pin female)
  • Operation pixel frequency range: 25MHz – 225MHz
  • Single link range: 1080P Max
  • Toggle button manual select/Remote control
  • Power Supply: DC input 5V / 2A Adapter(regulated)



3D Formats supported


Frame Packing

  • 1920x1080P@23.98/24Hz
  • 1280x720P@59.94/60Hz
  • 1280x720P@50Hz

Side-by-side(half)

  • 1920x1080i@ 59.94/60Hz
  • 1920x1080i@ 50Hz

Top and Bottom

  • 1920x1080P @ 23.98/24Hz
  • 1280x720P @ 59.94/60Hz
  • 1280x720P@ 50Hz




Downloads

HDMI4AVR manual (560kb)
