HDMIMX44 4 IN 4 OUT HDMI MATRIX

HDMIMX44 4 IN 4 OUT HDMI MATRIX
Code: 64510320

Additional Images

645103206451032064510320


HDMIMX44 is a true 4-by-4 HDMI matrix. It allows any source (Bluray player, satellite receiver, HD game consoles etc.) to be shown on any of the four displays connected simultaneously, no matter whether the source is HDCP or not.

HDMIMX44 also has the ability of equalisation and amplification to ensure that there is no quality loss though transmission.

Features

Features

  • Easy to use: installs in seconds
  • Allows up to four HDMI audio/video devices to be independently switched to four HDMI monitors, HDTVs, or projectors
  • The four outputs can show the same or different source simultaneously no matter whether the source is HDCP or not
  • Supports high definition resolutions (1080p / 1080i/ 720p), 3D video, and other standard video formats
  • With extra infrared receiver extension (not Foxtel IQ compatible)
  • Two switching modes: panel buttons, local IR



Package Contents

Package Contents

  1. Main unit
  2. 5VDC 3A Power Supply

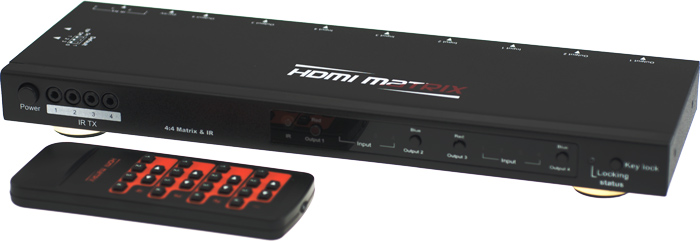

  3. 1x Remote
  4. 4x IR-TX extension cable
  5. 4x IR-RX extension cable
  6. 4x IR receiver cable extender jacks
  7. Operating Instructions



FAQs

FAQs

Q. You indicate that 3D is supported but I can’t get any 3D to work – how do I get 3D on my TV?
A. HDMI 3D through-put is possible only via Input 1 and Output 1; however the following steps will need to be followed to enable it (you will only need to do this once!):

  1. Ensure all devices are powered off (including HDMIMX44).
  2. Connect your HDMI 3D Source device (ie Bluray player) to Input 1
  3. Connect your HDMI 3D Display (ie Projector or 3D Capable TV) to Output 1

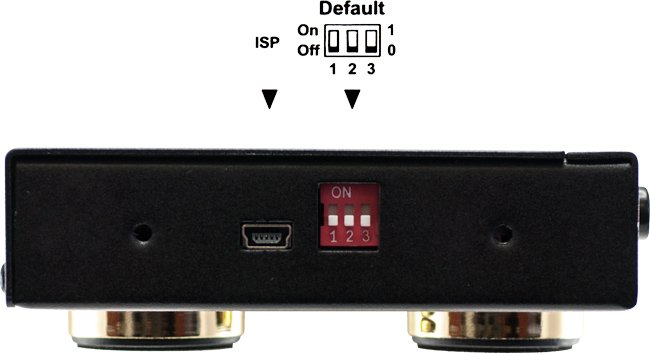

  4. On the rear of the HDMIMX44 there are 3 DIP switches; set them all to “On” (or all to “1”)
  5. Next, turn on the HDMIMX44
  6. Press both [Output 1] and [Key lock] buttons together
  7. Now turn on the Display (ie Projector or TV)
  8. And then your Source device (ie Bluray player)




Downloads

HDMIMX44 manual (1.7mb)
