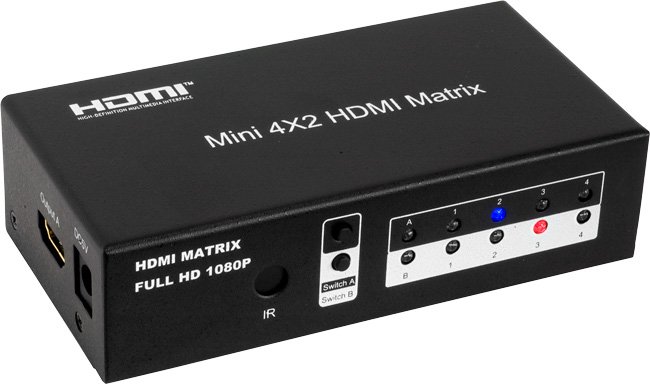

HDMIMX42 MINI HDMI MATRIX SWITCHER

HDMIMX42 MINI HDMI MATRIX SWITCHER
Code: 64510300

Additional Images

64510300645103006451030064510300

Discontinued


Great for Home Theater, AV installation, data center, information distribution, conference room presentation, churches, and school and corporate training environments.

Features

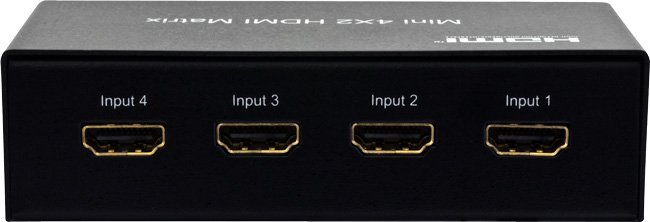

  • Switch 4 HDMI inputs between 2 HDMI outputs (4:2)
    • Can show the same input on both outputs; splitter function
  • Supports Resolutions up to 1080p/24fps
  • Supports Deep Colour (10/12-bit), x.v.Colour (xvYCC)
  • Support High Definition Audio: Dolby TrueHD / DTS-HD Master Audio
  • Supports 3D Video
  • Change sources with IR Remote Control or Input Buttons on unit
  • Easy to install and operate
  • Supports switching DVI signal when DVI-HDMI cable or adapter is used
  • Auto Signal Boosting improves signal quality before or after long distance transmission



Package Contents

  • 1x HDMIMX42 4:2 Matrix Switcher unit

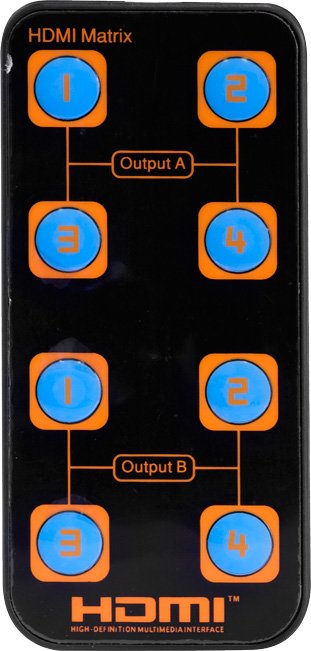

  • 1x IR Remote control
  • 1x 5VDC / 2A Power Supply
  • 1x User Manual



Specifications

Operating Temperature Range -5 to +35°C (+23 to +95°F)
Operating Humidity Range 5 to 90%RH (No Condensation)
Input Video Signal 0.5-1.0 Volts P-P
Input DDC & Signal 5 volts p-p (TTL)
Video format 1080P / 1080i / 720P / 576P / 576i /
480P / 480i / 3D Video
Video Colour Format x.v.Colour (xvYCC) / Deep Colour (10/12-bit)
Support Audio Format DTS-HD Master Audio /
Dolby True-HD / etc
Data transfer speed rate 6.75Gbps (Maximum)
Power consumption 5 Watts (Maximum)
Transmission Distance 15 metres (Maximum)
Dimension (L×W×H) 115 × 60 × 32mm
Net Weight 245g
Gross Weight 570g




Downloads

HDMIMX42 Product Manual
