The HDMI switcher is designed to make your A/V equipment use simpler, more productive, and at the same time save you space and money for redundant expensive equipment. The HDMI switcher offers solutions for Home Theater, AV installation, data center, information distribution, conference room presentation, churches, and school and corporate training environments.

The HDMI switcher allows three (3) HDMI source devices to share an HDMI compatible monitor, HDTV and/or projector. The HDMI switcher will equalize the HDMI signal and supports long length cable (up to 120 ft) applications. HDMI switch and HDMI signal booster/extender in one!

{tab=Features}

• Connects up to 3 HDMI sources to one HDTV display divide
• Maintains 480p, 720p, 1080i and 1080p video formats
• Maintains highest HDMI single link video resolution and digital audio signal
• Supports HDCP compliant devices
• Both HDMI-HDMI and DVI-HDMI cables can be used to connect the inputs and switcher output
• Inputs can be selected from either the IR remote controller (included) or through the front panel “INPUT SELECT” button.

{tab=Specifications}

• Video Amplifier Bandwidth……………………………………2.25GBps
• Input Video Signal Specification…………………………….v1.3b

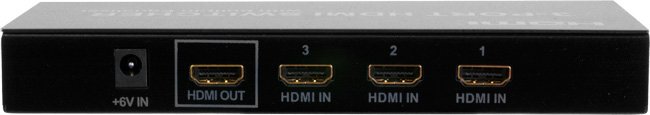

• Input Connector type……………………………………………3 HDMI 19pin female
• Output Connector type………………………………………… 1 HDMI 19pin female
• Total Cable Length Supported.………………………………Up to 120 ft
• Power Consumption……………………………………………..3.0W Max
• Power Supply……………………………………………………….6V DC, 1A
• Dimensions (mm)…………………………………………………181.6(L) x 77.1(W) x 23.7(H)
• Product Weight (Net)……………………………………………360g

{/tabs}

Downloads

HDMI3S Manual
