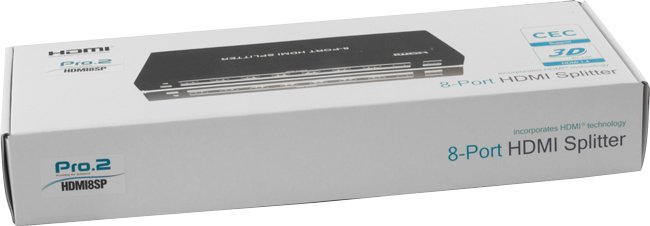

HDMI8SP 8 WAY HDMI SPLITTER 1 IN 8 OUT

HDMI8SP 8 WAY HDMI SPLITTER 1 IN 8 OUT
Code: 64510030

Additional Images

64510030


Pro2’s high quality HDMI splitters take a single signal input — Bluray, HD TV, PayTV (Foxtel), Xbox 360, PlayStation 3 etc. — and split them to multiple outputs without any signal loss.

Our range provides an ideal solution from a simple home installation to a massive 16 monitor commercial installation. All models come in a robust metal case that is made up of a solid construction that is built to last.

The Pro2 HDMI splitters are also powered, meaning they also help you extend your cable runs by equalising your signals and reclocking them before passing them onto the displays.

Model HDMI2SP HDMI4SP HDMI8SP HDMI16SP
Code 64510010 64510020 64510030 64510040
Description 2-WAY SPLITTER 4-WAY SPLITTER 8-WAY SPLITTER 16-WAY SPLITTER
HDMI Inputs 1 1 1 1
HDMI Outputs 2 4 8 16
3DSupport Yes Yes Yes
4K x 2K   Yes Yes
HDCP Compliance HDCP Repeater v1.1 v1.2
HDMI Resolutions 480p /
720p /
1080i /
1080p @ 60 Hz
480p /
720p /
1080i /
1080p@ 60 Hz /
4K x 2K @ 24 Hz
480i /
576i /
480p /
576p /
720p @ 120 Hz /
1080i @ 120 Hz /
1080p @ 60 Hz /
4K x 2K @ 24 Hz
480i /
480p /
576i /
576p /
720p /
1080i /
1080p @ 60 Hz
Audio Formats LPCM /
Dolby-AC3 /
DTS 7.1 /
DSD
LPCM /
Dolby-AC3 /
DTS 7.1 /
DSD
Dolby TrueHD /
DTS-HD Master Audio
Dolby TrueHD /
DTS-HD Master Audio
Data Transfer Speed 6.75 Gbps
HDCP Compatibility HDCP v1.4
Input Video signal 5.0 Volts P-P (TTL) Single Link 5.0 Volts P-P (TTL) Single Link 0.5-1.0 Volts P-P
DDC Signal: 5 Volts P-P (TTL)
0.5-1.0 Volts P-P
Video Amplifier Bandwidth 140 MHz 140 MHz 140 MHz 140 MHz
Transmission Distance 15 metres using standard 26AWG cable
Power Supply (included) 5V 1A DC 5V 2A DC 5V 3A DC 5V 4A DC
Dimensions 88 x 47 x 25 mm 115 x 62 x 25 mm 320 x 120 x 35 mm 320 x 140 x 42 mm
Weight 135g 190g 1120g 1450g
Power Consumption 3.5 W 5 W 10 W 20 W
Operating Temp. Range -15°C to 55°C (23°F to 95°F)
Operating Humidity Range 5 to 90% RH (no condensation)
