HVY01 HDMI TO VGA COMPONENT CONVERTER

HVY01 HDMI TO VGA COMPONENT CONVERTER
Code: 30251944

Additional Images

302519443025194430251944

Convert HDMI Input to VGA (RGBHV) or Component (YPbPr / YCbCr)
Your new laptop only has HDMI out but you want to use that old VGA monitor you have lying around? Convert your HDMI source to VGA with the HVY01. With dual HDMI input you can also connect a STB to your old monitor or display, and switch between inputs with ease.

Features

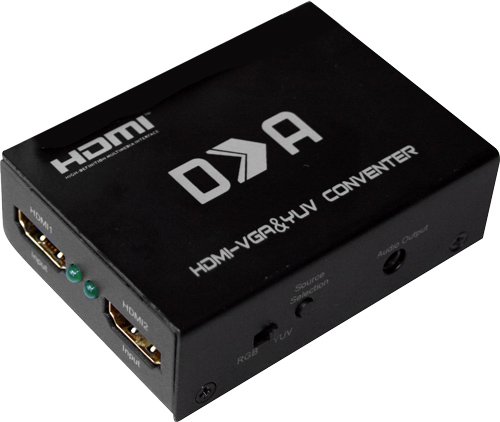

  • Dual HDMI Input
    • Switch between two inputs with button on unit
  • Option to output RGBHV or Component (YPbPr/YCbCr) via switch
  • Supports HD format from 480i to 1080p
  • Green LEDs indicate the connection status of inputs
  • High-quality stereo analog or optical audio output (S/PDIF format)
  • HDCP Compliant & DVI 1.0 Compliant
  • Supports 1.5Gbps signaling rate



Specifications

Colour Support Input: RGB 4:4:4 (8-bit digital)
Output: YPbPr 4:4:4 or YCbCr 4:2:2
Connectors Inputs:
2x HDMI 19p Sockets
1x DC Power Socket
Outputs:

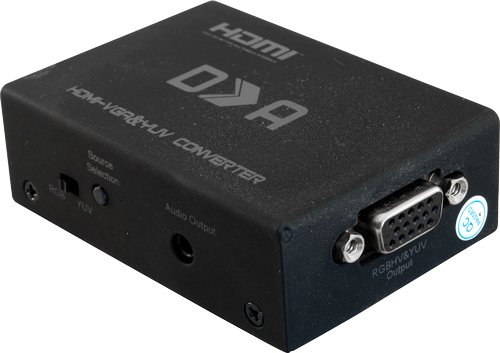

1x VGA 15p Socket
1x 3.5mm Analogue Stereo + mini-TOSLINK Socket
Video Amplifier Bandwidth 165MHz (Max)
Input video signal 5 Volts p-p (TTL)
Power Consumption 10W (Max)
Power Supply 5VDC / 1A
Storage temperature range -15 to +55ºC(-41 to +95°F)
Operating temperature range -5 to +35 ºC (-41to +95°F)
Operating humidity range: 5 to 90 % RH (no condensation)
Dimensions 72(W) × 50(H) × 23(D) mm
Mass 0.36 Kg
