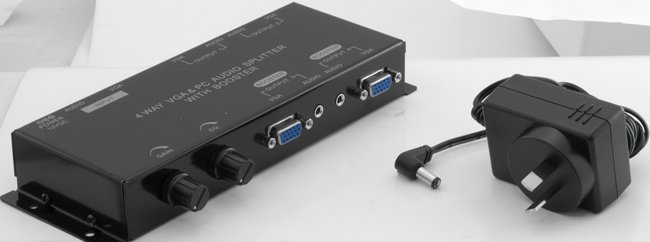

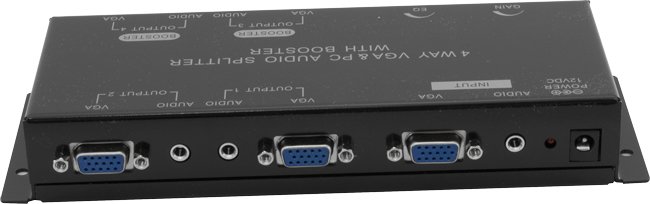

PRO1296 4 WAY VGA + PC AUDIO SPLITTER

PRO1296 4 WAY VGA + PC AUDIO SPLITTER
Code: 00760650

Additional Images

007606500076065000760650

Discontinued

SPECIFICATIONS

VGA:

  • Video Bandwidth: >500MHz
  • Supported Resolutions: VGA, SVGA, XGA, SXGA,UXGA, QXGA, WUXGA, WQXGA
  • Supports the DDC,DDC2,DDC2B. (For VGA Output1)
  • Extended Distance:60 Meters(VGA Output 1,2) / 100 Meters(VGA Output 3,4)
  • Gain and EQ Adjustments. (For VGA Output 3,4)
  • Input/Output Connector:HD-15 Female
  • Can be cascaded.

Audio:

  • Operation Frequency:50Hz~15KHz
  • Input Impedance: 47K ohms
  • Max. Audio Input:5Vp-p
  • Extended Distance:100 Meters
  • Input/Output Connector:3.5mm Mini-stereo Jack
  • Can be cascaded.

Power & Dimensions:

  • Power Consumed: 100mA Max
  • Power Source: DC 12 Volts
  • Size (LxWxH): 205 mm x 93.5 mm x 31 mm
  • Net Weight (Unit only): 0.46 Kg
