HD41QMV 4-WAY HDMI QUAD MULTI VIEWER

HD41QMV 4-WAY HDMI QUAD MULTI VIEWER
Code: 64510370

Additional Images

6451037064510370

The high performance 4×1 quad multi-viewer supports four high definition input contents be displayed on one screen simultaneously, and five multi-viewer display modes can be selected. The product can be controlled via the front panel button, remote control and RS-232.

Features

  • HDMI 1.4b, HDCP 1.4 and DVI compliant
  • Up to 1080P@60Hz video resolutions
  • Audio supports LPCM 2/5.1/7.1CH, Dolby 5.1CH, Dolby True HD, DTS-HD
  • Quad multi-viewer with five display modes supported

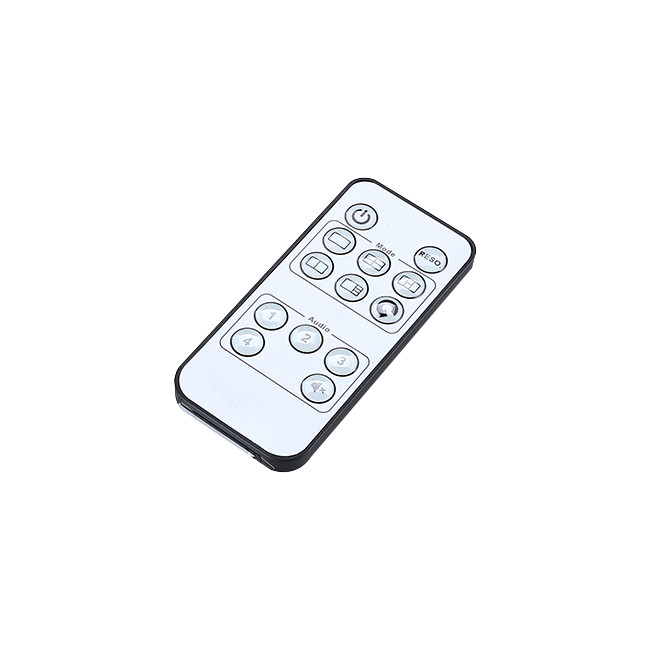

  • IR remote and RS-232 control

Specification

Technical

HDMI Compliance

HDMI 1.4b, compliant with DVI 1.0

HDCP Compliance

HDCP 1.4

Video Bandwidth

6.75Gbps

Video Resolutions

1080P@60Hz, 720p@60Hz, 480P@60Hz

Color Space

RGB, YCbCr 4:4:4, YCbCr 4:2:2

Color Depth

10-bit, 12-bit

HDMI Audio Formats
(Pass-through)

LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X

ESD Protection

Human body model ±8kV (air-gap discharge) & ±4kV (contact discharge)

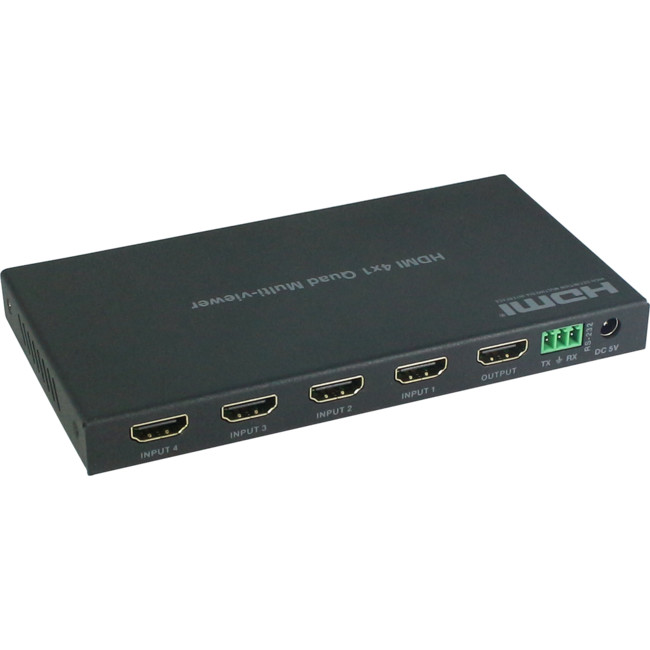

Connections

Inputs

4x HDMI Type A [19-pin female]

Output

1x HDMI Type A [19-pin female]
1x RS-232 [3.81mm Phoenix connector]

Mechanical

Color

Black

Dimensions

160.2mm [W] x 84mm [D] x 15.5mm [H]

Weight

337g

Power Supply

Input: AC100 – 240V 50/60Hz
Output: DC 5V/2A (US/EU standards, CE/FCC/UL certified)

Power Consumption

6W(Max)

Operation Temperature

0 – 40°C
