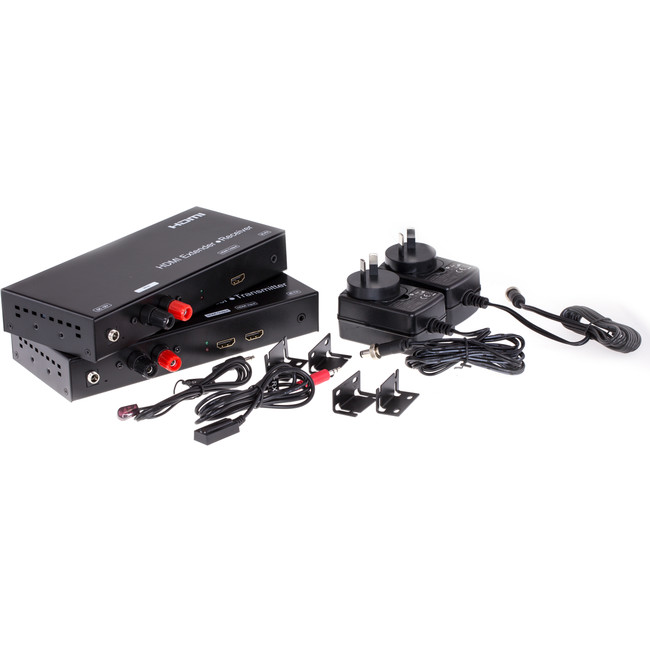

HDMIAW HDMI EXTENDER OVER ANY WIRE UP TO 3.8KM

HDMIAW HDMI EXTENDER OVER ANY WIRE UP TO 3.8KM
Code: 64510347

Additional Images

64510347

Features

Warning: This product is NOT ‘HDMI over AC’!

Please ensure you do not establish a direct connection between the transmitter and the receiver using an active AC power outlet. Doing so will damage your unit and will be dangerous!

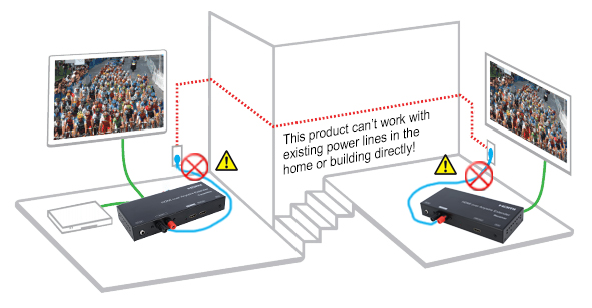

HDMIAW product cant work with existing power lines Warning

HDMIAW can extend your HDMI source over any 2-conductor cable including twisted cable, telephone cable or CAT5/6 etc. The transmitter compresses/converts the HDMI signals into a serial data stream, which is then encoded for transmission over any copper media. It is an ideal HDMI extender over your existing cable.

Foxtel iQ2 and iQ3 compatible

Features

  • With 1x Loop HDMI output at transmitter
  • Transmit HDMI signal up to 3.8 Km
  • Supports Multi-level cascading
  • HDMI resolution up to 1080p
  • HDCP compliant
  • IR pass-through control
  • Power supply DC 12V


Note: This product can not be connected to 220V/380V high voltage.

Wiring Configurations

HDMIAW wiring configurations



Specifications

Operating Temperature Range -5 to 35°C
Operating Humidity Range 5 to 90%RH (No condensation)
Compression Rate H.264 compression
Bit Rate 15Mbps
Latency From TX to RX is about 200ms to 450ms
Supported Audio Format LPCM audio format
Transmission Distance 3800m via 2-conductor cable; NOTE: This distance is tested on 18AWG UL2468, stranded 2 core cable. Longer distances could be achieved with greater quality cables
Supported Video Format DTV/HDTV: 480i/ 480p/ 576i/ 576p/ 720p/ 1080i/ 1080p
VESA: 800×600, 1024×768, 1280×768, 1280×960, 1280×1024
1680×1050, 1920×1080, 1280×720, 1360×768, 1400×1050, 1280×1024
Connections on TX 1x HDMI input, 1x HDMI loop out, IR-TX socket, 2x terminal post, power supply socket
Connections on RX 2x terminal post, 1x HDMI output, IR-RX socket, power supply socket
Power Consumption TX:6.5 Watts, RX:5.5 Watts
Dimension 206.2(L) x 110(W) x 33(H)mm
IR Frequency 38K-56KHz
Net Weight TX:545g, RX:548g
