HDMIKVMV2 HDMI USB2.0 KVM EXTENDER UP TO 60M W/USB OR 100M HDMI

HDMIKVMV2 HDMI USB2.0 KVM EXTENDER UP TO 60M W/USB OR 100M HDMI
Code: 07351029

Additional Images

07351029073510290735102907351029

Solid/FTP CAT5/6 cable required for best results

If you are running a cable 15 metres or more, make sure you use a SOLID CAT5/6 cable. This product may not work with standard stranded ethernet cable. See related items for cabling that will work this product. 60m distance has been tested fine on F/UTP solid cat6 cable.

FYI: Most of the pre-made cat5/6 leads on the market are stranded cable not solid.

Features

HDMIKVMV2 provides the solution to extending USB, HDMI or both over single CAT5/CAT6 cable.

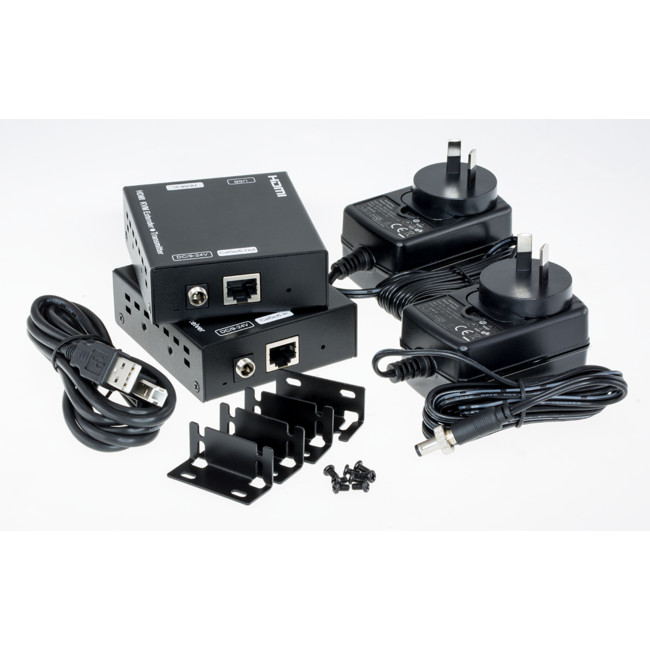

  • Each set includes one transmitter and one receiver

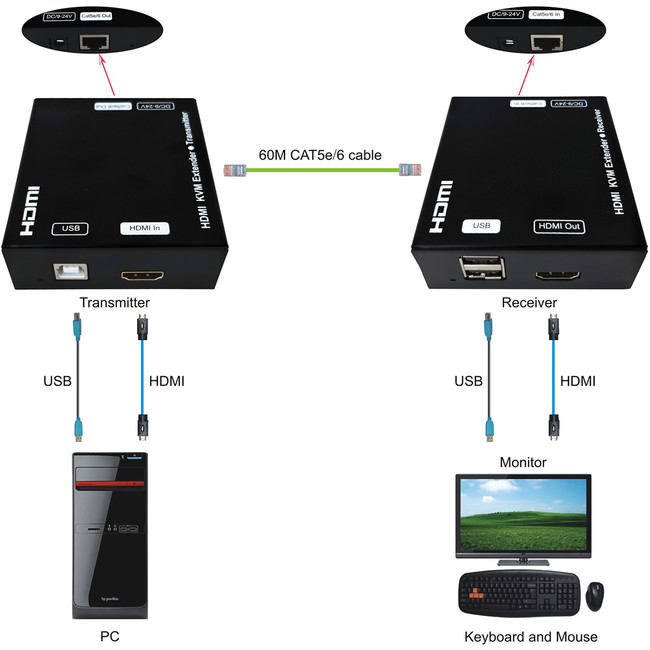

  • Extending USB through single CAT5/CAT6 cable up to 60m

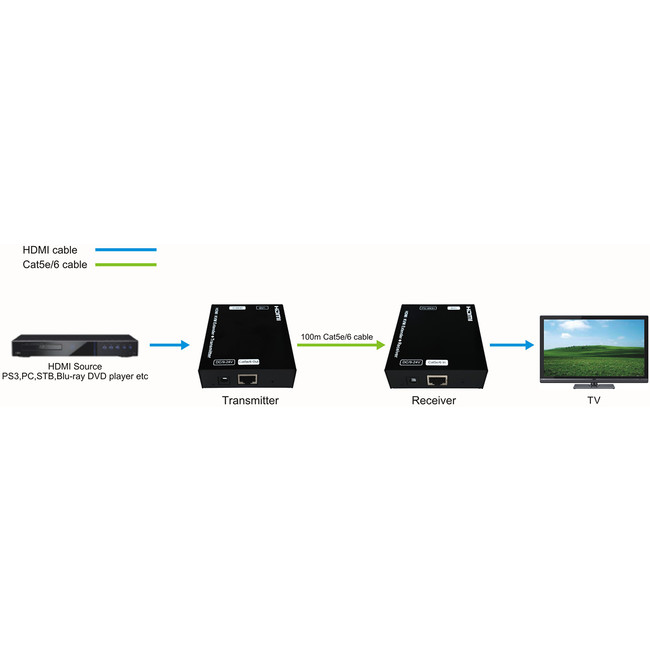

  • Extending HDMI through single CAT5/CAT6 cable up to 100m
  • One to one operation
  • Supports Full HD 1080p
  • Power supplies included



Specifications

Operating Temperature Range -10° to 50°C
Operating Humidity Range 5 to 90% RH (No condensation)
Supported Video Format DTV/HDTV: 480p/576p/720p/1080p
VESA: 640×480, 800×600, 1024×768, 1280×1024, 1680×1050, 1280×720, 1360×768

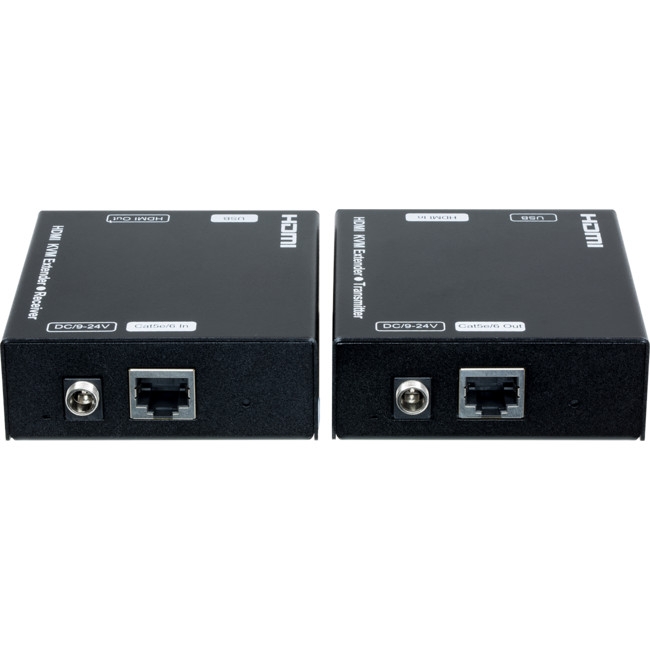

Connections On Transmitter 1x HDMI input, 1x USB-B type, 1x RJ45 socket
Connections On Receiver 1x RJ45 socket, 1x HDMI output, 2x USB A type
Transmission Distance Up to 100m for HDMI
Up to 60m for USB
Power Consumption 1.2W (TX)/ 2.6W(RX)
Net Weight Tx: 205g; RX: 205g
