PRO1254D INTEGRATED AUDIO VIDEO + IR CAT5 CLIPSAL EXTENDER KIT

PRO1254D INTEGRATED AUDIO VIDEO + IR CAT5 CLIPSAL EXTENDER KIT
Code: 39894091

Additional Images

3989409139894091

The PRO1254D is part of the “PRO2 CAT5 Extender Series” in clipsal style and is designed to be surface mounted in in-wall composite/ component video, and stereo audio/digital audio with IR control applications.

Distributes your AV signals via economical CAT5 cable.

Transmitter

  • Component video inputs (Y/ Pb/ Pr)
  • Coaxial digital audio input
  • Composite video input
  • Audio Left & Right inputs
  • 2x 3.5mm inputs for IR emitters
  • Interface:
    Video: 1x RCA jack
    Audio: 2x RCA jacks for Left and Right Audio
    UTP: CAT5e
  • Impedance:
    Video: 75 ? unbalanced
    Audio: 600 ? unbalanced
    UTP: 100 ? balanced
  • Bandwidth:
    Video: DC~12 MHz
    Audio: 50 Hz~15 KHz
  • Distance:
    Audio/Color Video:
    Category 5e UTP cable up to 300 meters



Receiver

  • Component video inputs (Y/ Pb/ Pr)
  • Coaxial digital audio input
  • Composite video input
  • Audio Left & Right inputs
  • 3.5mm input for IR receiver
  • Power input
  • Interface:
    Video: 3x RCA (Y/Pb/Pr) female connectors
    Digital Audio: 1x RCA female connector
    UTP: CAT5e
  • Impedance:
    Video: 75 ? unbalanced
    Digital Audio: 75 ? unbalanced
    UTP: 100 ? balanced
  • Bandwidth:
    Video: DC~60 MHz
    Audio: DC~25 MHz
  • Distance: Over Category 5e/6 UTP cable:
    720p video, up to 150 meters (total length, device-to-device)
    1080i video, up to 150 meters (total length, device-to-device)
    Digital Audio: up to 175 meters (total length, device-to-device)

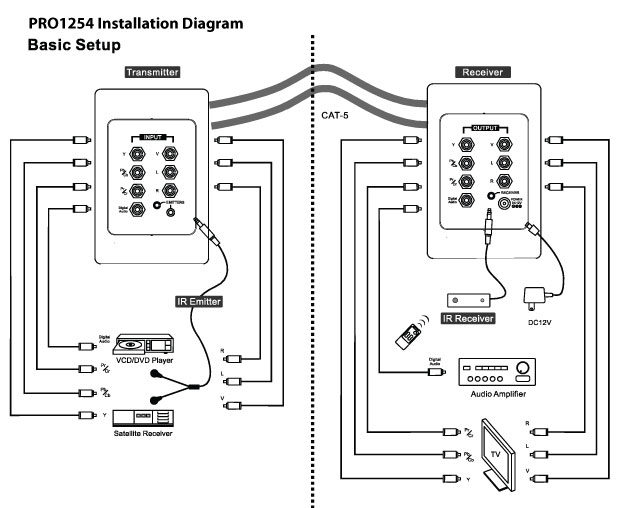

Connection between transmitter and receiver is established using RJ45 CAT5 patch cable.



IR receiver

  • Works in areas with compact fluorescent lighting
  • lue IR confirmation LED
  • Wide band IR receives IR from many types of remotes
  • Self-adhesive tape for quick and easy fixing on any flat surface
  • 3 meters cable with 3.5mm stereo mini-plug
  • Receive frequency range: 34 kHz to 40 kHz
    Transmit frequencies: 38 kHz
  • Range On Axis – 55ft to 80 ft (16.8m – 24.4m)
    30° Off Axis – 30ft to 55ft (9.1-16.8m)
  • Power:12VDC, 31mA max
  • Dimensions: 54L x 14W x 13H mm
  • Weight: 23 g



Specs

  • Delivery Distance:
    • Audio 300 meters
    • Component Video: 100Meters (max)
    • Composite Video : 300Meters (max
  • Dimension: 114mm x 70mm x 42mm (including blank wall plate)
  • Power supply: 12VDC, 200mA

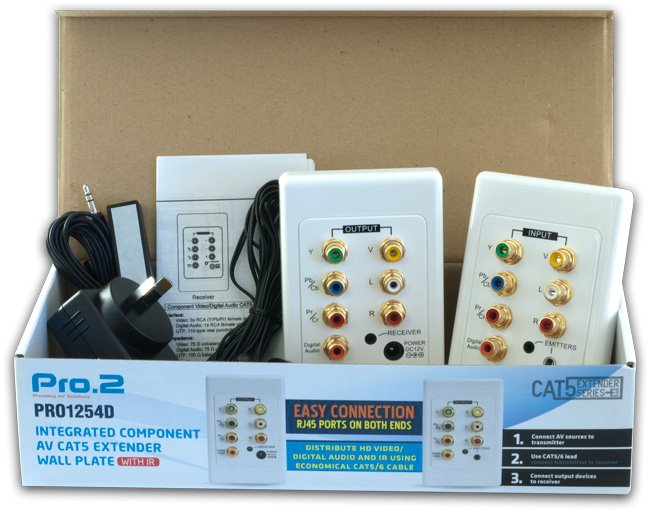

Kit

    • Transmitter and Receiver wall plates
    • Dual IR emitter
    • IR receiver stick
    • 12V DC 200mA power supply
