AV DISTRIBUTION, AV CONVERTERS

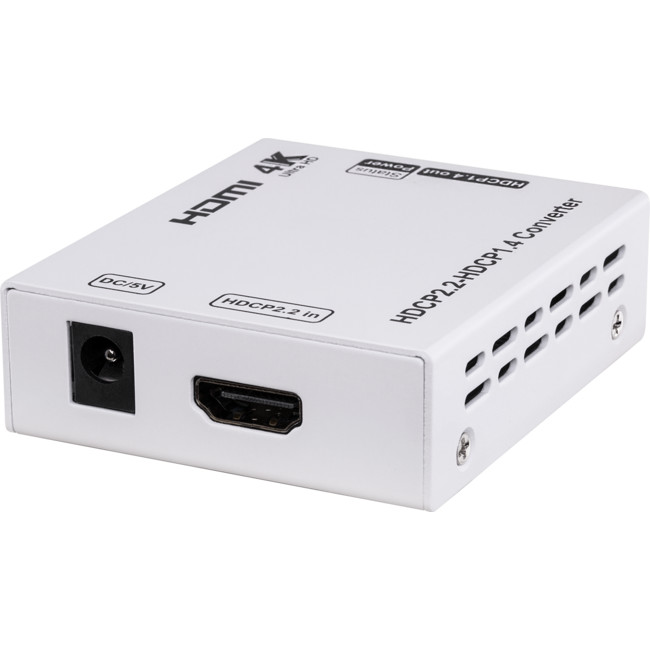

HDCP2.2 TO HDCP1.4 CONVERTER

64550157

HDCP2214V2

  • Support 4Kx2K@60HZ, YUV 4:2:0
  • Support audio format Dolby, DTS, LPCM
  • Description
  • Resources

    • DESCRIPTION

    Why do you need HDCP 2.2 to HDCP 1.4 converter?

    HDCP 2.2 is the new copy-protection standard for many modern source devices and streaming services, such as Netflix. This box is perfect for playing your HDCP2.2 content through your HDCP1.4 equipment!

    TVs must be HDCP 2.2 enabled to play content and everything in the video chain (including switches & receivers) must be compliant as well.

    If you have HDCP 1.4 equipment, you'll need a HDCP 2.2 toHDCP 1.4 converter to display content!

    Features

    • Compliant HDMI 1.4B.
    • Converts HDCP 2.2 to HDCP1.4
    • Supports 4Kx2K @ 60Hz / YUV 4: 2:0
    • Supports audio format Dolby / DTS / LPCM
    • Supports 3D / CEC
    • Power supply: 5V 1A (included)

    Wiring diagram

    Specifications

    Operating Temperature Range −5 to +35 °C
    Operating Humidity Range 5 to 90%RH (No Condensation)
    HDMI Input HDCP 2.2
    HDMI Output HDCP 1.4
    Video Format Supported DTV/HDTV:480i/576i/480P/576P/720P/1080i/1080P/4Kx2K
    3D video support
    Maximum video Format 4Kx2K@60Hz, YUV 4:2:0
    HDMI input 1xHDMI (Standard Type A connector)
    HDMI output 1xHDMI (Standard Type A connector)
    Support Video Color Format xv-YCC/deep color 36bit
    Support Audio Format DTS-HD Master Audio, Dolby true-HD. LPCM
    Power consumption 1.5 watts(Maximum)
    Dimension (LxWxH) 70.2*60.2*21.1mm
    Net Weight 120g
