HDMI 4K60 4X4 SEAMLESS MATRIX |

64538610

MX44VWCV2

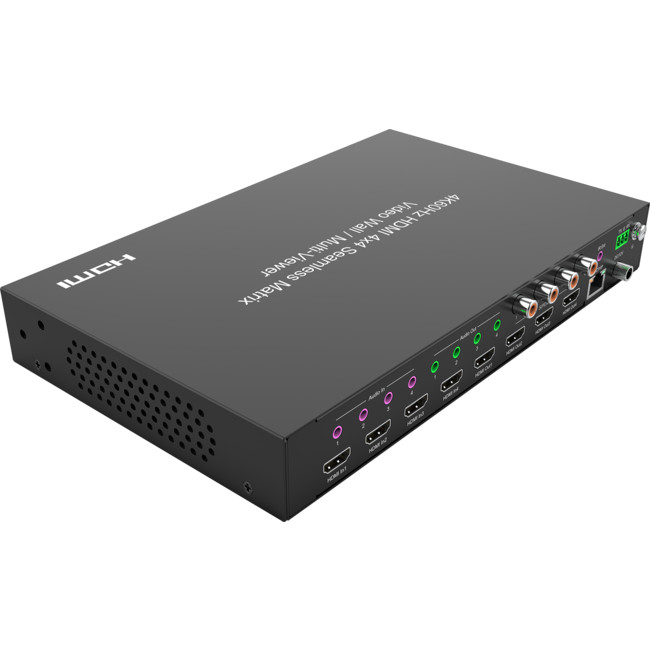

4K60Hz HDMI 4X4 Seamless Matrix Video Wall / Multi-Viewer

Description

Resources

DESCRIPTION

MX44VWCV2 4K60Hz HDMI 4X4 Seamless Matrix Video Wall / Multi-Viewer

4x HDMI Inputs, which can be independently routed to HDMI Outputs. No switching delay or picture loss during transitions
Supports resolution up to 4K@60HZ 4:4:4
Supports Video Wall up to 7 different modes with each monitor with 4K@60Hz 4:4:4 resolution.
It can display 4 pictures on the same screen and has multiple split display modes.
Supports HDMI audio formats including Dolby-5.1, DTS-5.1
Analog audio extraction, and the audio can be independently switching
Compliant HDCP 2.2 with EDID management
Control via panel button, Remote Control, RS232 Control, TCP/IP Control

Operating Temperature Range	-5 to +40°C(23 to + 104 °F)
Storage Temperature Range	-10 to +60°C(-14 to + 140 °F)
Operating Humidity Range	5 to 90 % RH (no condensation)
Input Video Signal	0.5-1.0 volts p-p
Input DDC Signal	5 volts p-p (TTL)
Bandwidth	18Gbit/s
Video Format Supported	4K@60Hz,YUV4:4:4 8bit 4k@30Hz/1080P/1080i/720P
Audio Formats Supported	HDMI digital audio DTS-5 . 1/Dolby-5 . 1
HDCP Compliant	HDCP 2.2 and HDCP 1.4
Input ports	4xHDMI
Output ports	4xHDMI
Matrix mode	4x4 seamless switching
Video wall mode	Multiple video wall modes
Multi-viewer mode	Multiple multi-viewer modes
Power Consumption	23 watts (Max.)
Dimensions	Matrix: L262 x W163 x H36 mm
Mass (Main Unit)	2710g
