4-WAY 18GBPS HDMI SWITCHER

64510382

HDMI4S18GV2

  • Description
  • Resources

    • DESCRIPTION

    Features

    Enjoy the ultimate in multimedia flexibility with the HDMI4S18GV2 4-Way HDMI Switcher.

    Effortlessly toggle between four HDMI sources using either the convenient front panel buttons or the included remote control. This feature-packed switcher comes with the latest HDMI technology including 4K video, 18Gbps bandwidth, HDMI version 2.0 and HDR10 support.
    In addition to its switching capabilities, the HDMI4S18GV2 serves as a versatile audio extractor, delivering either 2CH stereo or 5.1CH surround sound. Take advantage of the Audio Return Channel (ARC) for enhanced audio experiences, effortlessly extracting signals from your TV through S/PDIF or RCA outputs. Enjoy a seamless blend of convenience and high-quality audio and video with the HDMI4S18GV2.


    FEATURES

  • HDMI 2.0 version (Supports 4K@60Hz YUV4:4:4), with downscaler
  • Bandwidth up to 18Gbps
  • HDCP2.2/1.4 compliant
  • Supports Dolby Vision, HDR10

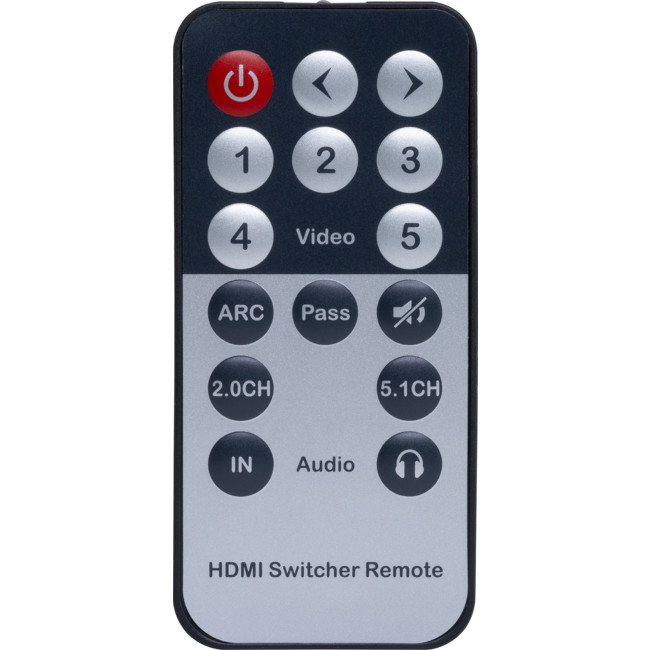

  • Includes 4x HDMI in & input switching using the panel button or remote control
  • Analogue audio 2.0 & S/PDIF 5.1 audio extraction
  • Analogue audio 2.0 embedding
  • CEC and ARC bypass to input
  • ARC audio return to S/PDIF output
  • Supports PCM2.0-7.1, 24-bit, 192K, Dolby True HD & DTS 7.1 audio

    • CONNECTIONS

    Back Panel

  • 4x HDMI Inputs
  • 1x (ARC) HDMI Output
  • S/PDIF optical input

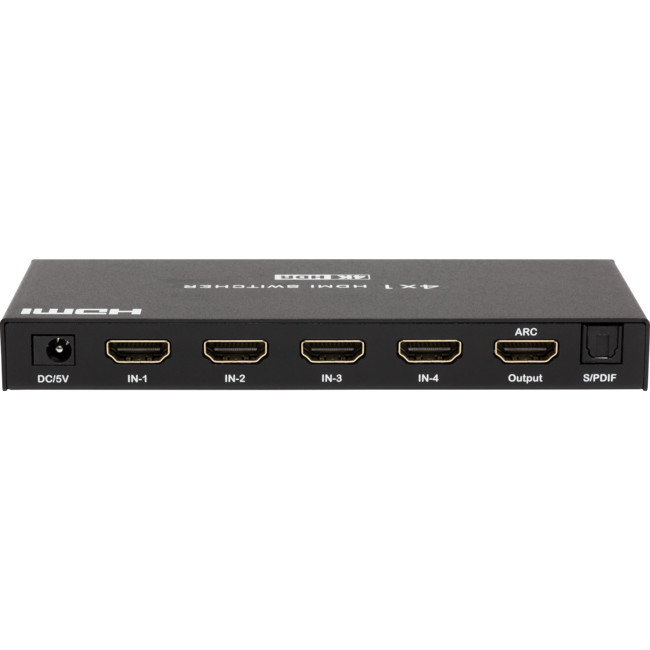

    • HDMI4S18GV2 Back Panel


    Front Panel
  • 3.5mm AUX input
  • IR window
  • LED indicators for HDMI input, 2.0 Audio, 5.1 Audio
  • Push buttons for source switching: ARC (2CH-5.1CH audio), Audio input (Aux, S/PDIF) & source switching (1-4)
    •

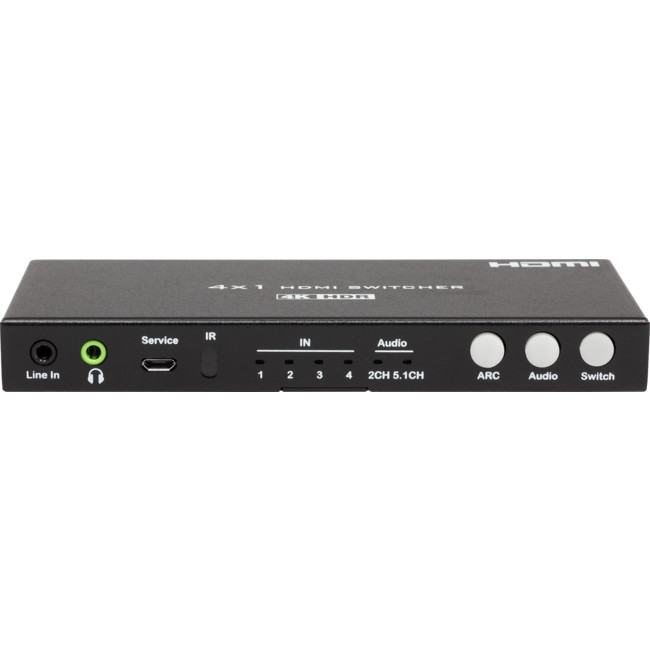

    HDMI4S18GV2 Front Panel

    Specifications

    Specifications

    Max Resolution

    4K @ 60hz YUV 4:4:4

    HDMI Features

    Dolby Vision, CEC, ARC, HDR10

    HDMI Version

    HDMI2.0

    HDCP Version

    HDCP2.2/1.4

    Audio Format Supported

    Analogue audio 2.0/SPDIF 5.1 extraction; Analogue audio 2.0 embedding

    Transmission Distance

    1080P 15m, 4K @ 30hz (input 10m, output 15m) or 4K @ 60hz under HDR (5m)

    3D Support

    Yes

    Transmission Distance

    60m (197ft) at 4K@60Hz

    Dimension (L×W×H)

    153.7mm × 63.6mm × 18mm

    Net Weight

    260g
