60KM HDMI EXTENDER OVER FIBRE

64510358

HDMIFIB18G

Support resolution up to 4Kx2K@60Hz, YUV4:4:4 HDR.

  • Transmit from 1m to 60km over Single/Multi mode, single/duplex fiber
  • Support bandwidth up to 18Gbps
  • Without latency
  • Support HDCP2.2 input, HDCP2.2 output
  • Description
  • Resources

    • DESCRIPTION

    This is Transmitter and Receiver base only!!!

    This product requires a pair of transceiver module to work. Please choose from related product at the bottom of the page. Compatible module part numbers are as follows. SM:SFP10G10KSMLC & MM: SFP10G300MMLC. Please note the modules used must be 10G modules, not 1G modules, even with the 1080P signal.

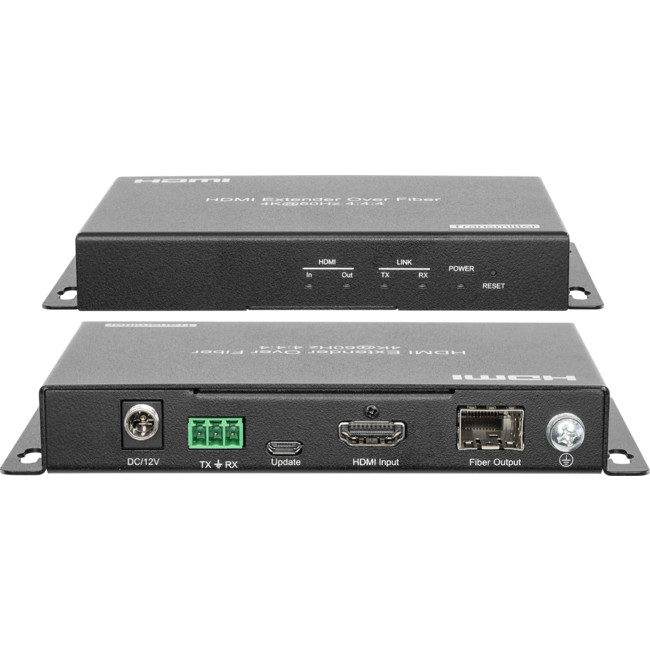

    The HDMIFIB4K is a long-range HDMI video extender kit that uses LC fibre optic cable to extend video/audio from anHDMI-equipped device to a remote display up to 60km away(60km transceiver fibre module required). The extender supports up to 4K resolution with 18Gps bandwidth includes both the transmitter and receiver base only.

    Features

    • Transmit from 1m to 60KM over Single/Multi mode, single/duplex fibre
    • Support resolution up to 4Kx2K@60Hz, YUV4:4:4 HDR
    • Support bandwidth up to 18Gbps
    • Without latency
    • Support HDCP2.2 input, HDCP2.2 output
    • Support HDCP1.4 input, HDCP1.4 output
    • Support RS232 Bi-direction pass through
    • With Automatic EDID for rapid integration of source and display
    • Support LPCM7.1, Dolby True HD, DTS-HD Master Audio
    • Locking power supplies
    • Surface-mountable

    SPECIFICATIONS


    Operating Temperature Range

    -5 to +40(+23 to +95)

    Operating Humidity Range

    5 to 90%RH (No Condensation)

    Video Input(Transmitter)

    1xHDMI Type A, 19-pin, female

    Video Output(Receiver)

    1xHDMI Type A, 19-pin, female

    Link(Transmitter/ Receiver)

    1m~60Km single
    Multi mode 300m single
    Duplex fibre optical cable

    Module type required?

    SFP Type, Single / Multi mode ,Single / Duplex fibre (optional)

    Video Format

    4K@60Hz YUV 4:4:4, 4K@60Hz, 1080P, 720P, 576P, 480P/
    VESA Resolution

    Audio Format

    Support LPCM 7.1, Dolby®True&n bsp;HD, DTS-HD Master Audio™ .

    HDCP

    HDCP 1.4 in, HDCP 1.4 out
    HDCP 2.2 in, HDCP 2.2 out

    Power consumption

    Transmitter: 3watts(Maximum)
    Receive: 3watts(Maximum)

    Dimension (L×W×H)

    Transmitter: 96*100*21mm
    Receiver: 96*100*21mm

    Net Weight

    475g (Pair)

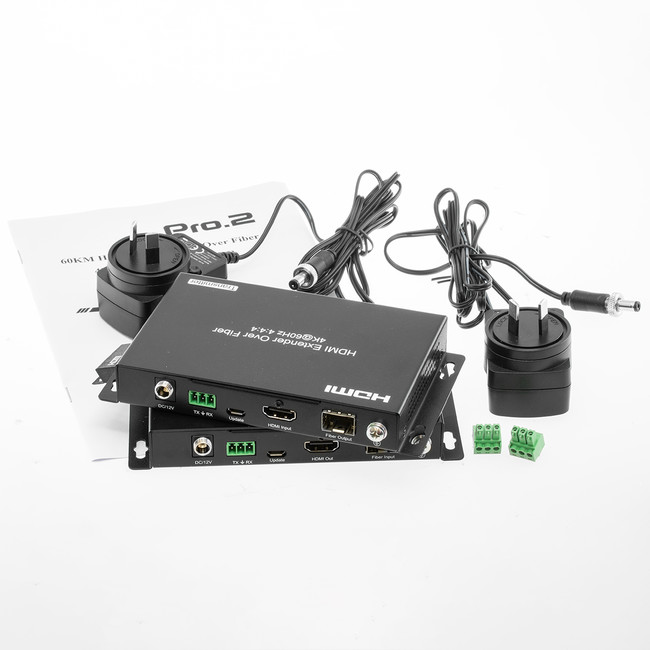

    PACKING CONTENTS
    1). Main Unit. HDMI Extender Over Fibre
    2). DC12V 1A Power Supply X2
    3). Operating Instructions
    *The Unit without Fibre Modules

    FAQ

    Q: Unit supports 18G bandwidth, using the fibre module only 10G?
    A: Unit converts 18G signal to 10G using CSC (color space conversion) to transmit from the source to the receiver, itthen converts back to 18G at the receiver.
