DESCRIPTION

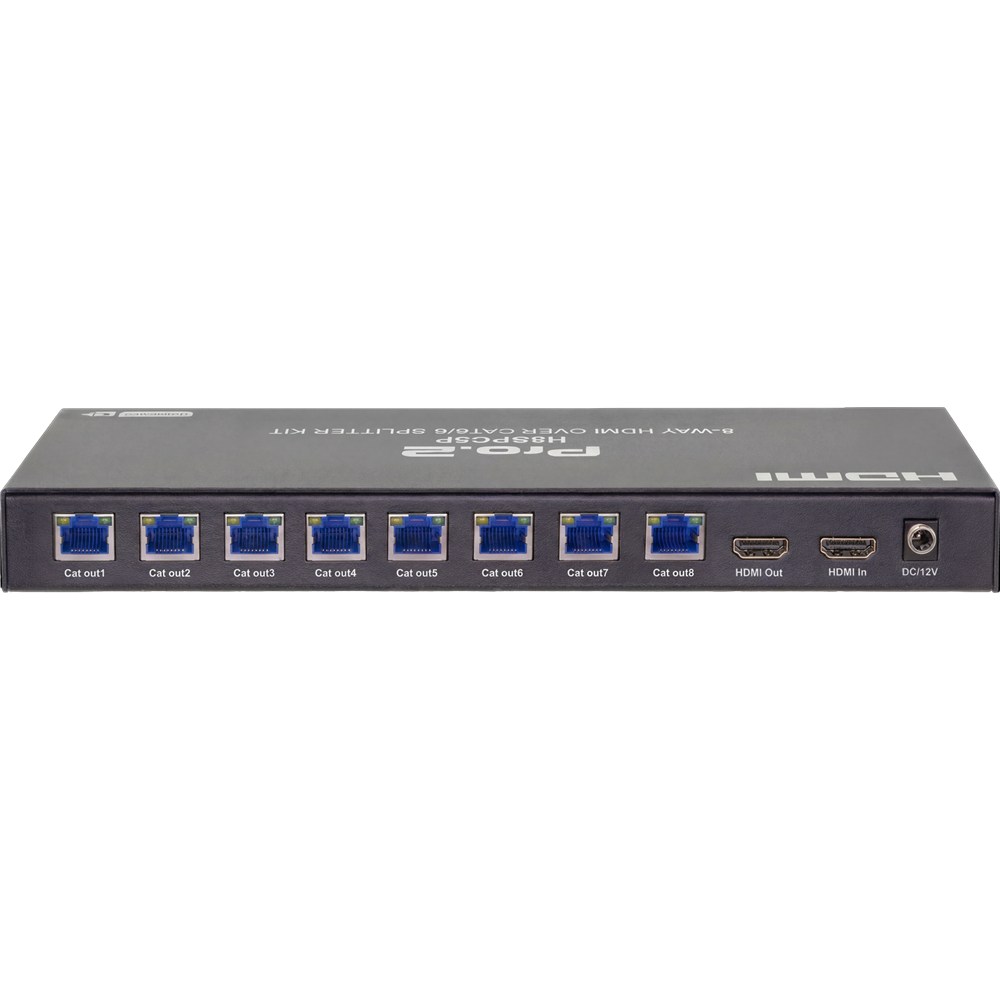

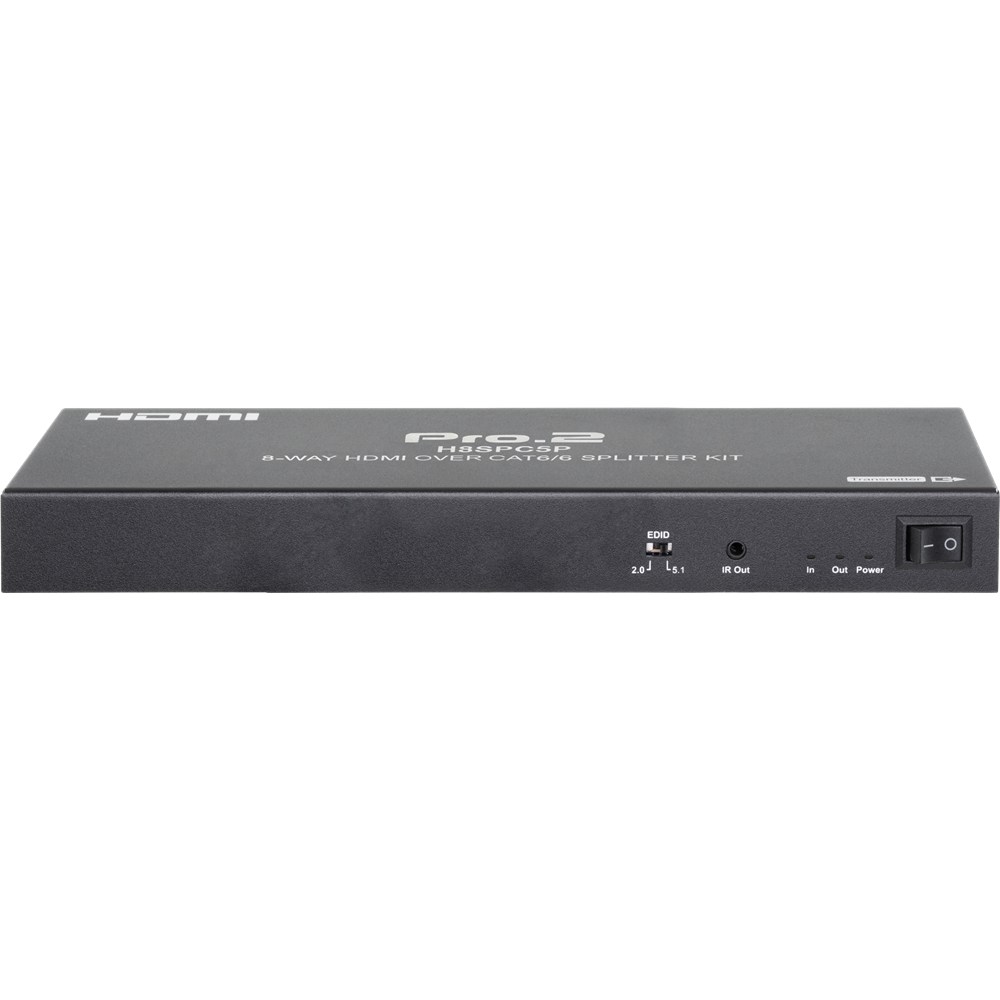

8-Way HDMI over CAT5E/6 Splitter Kit

Distribute a single HDMI source to up to eight displays with ease. Ideal for Blu-ray players, HD TVs, Pay TV (Foxtel) and other HDMI source devices.

Transmit a high-quality HDMI signal up to 50 metres using a single Cat5e or Cat6 cable, providing a reliable and cost-effective solution for multi-room installations.

• HDMI Loop-Out
  Allows the HDMI signal to be extended over Ethernet while maintaining a direct connection to a local display at the source.

• Expandable & Cascadable Design
  Supports cascading up to 4 transmitter layers, enabling connection of up to 32 receivers for larger distribution setups. Simply connecting the loop-out from the transmitter into the HDMI input of the next transmitter allows you to extend to further receivers!

• Full HD Performance
  Supports video resolutions up to 1080p Full HD, including 3D content.

• Advanced Audio Support
  Compatible with stereo and 5.1-channel audio, with EDID control for easy audio format selection.

• Power over Cable (PoC)
  Receivers are powered directly from the transmitter, reducing the need for additional power supplies.

• One-Way IR Control
  Includes 8× IR receivers and 1× IR emitter, allowing remote control of the source device from the transmitter location.

In the Box

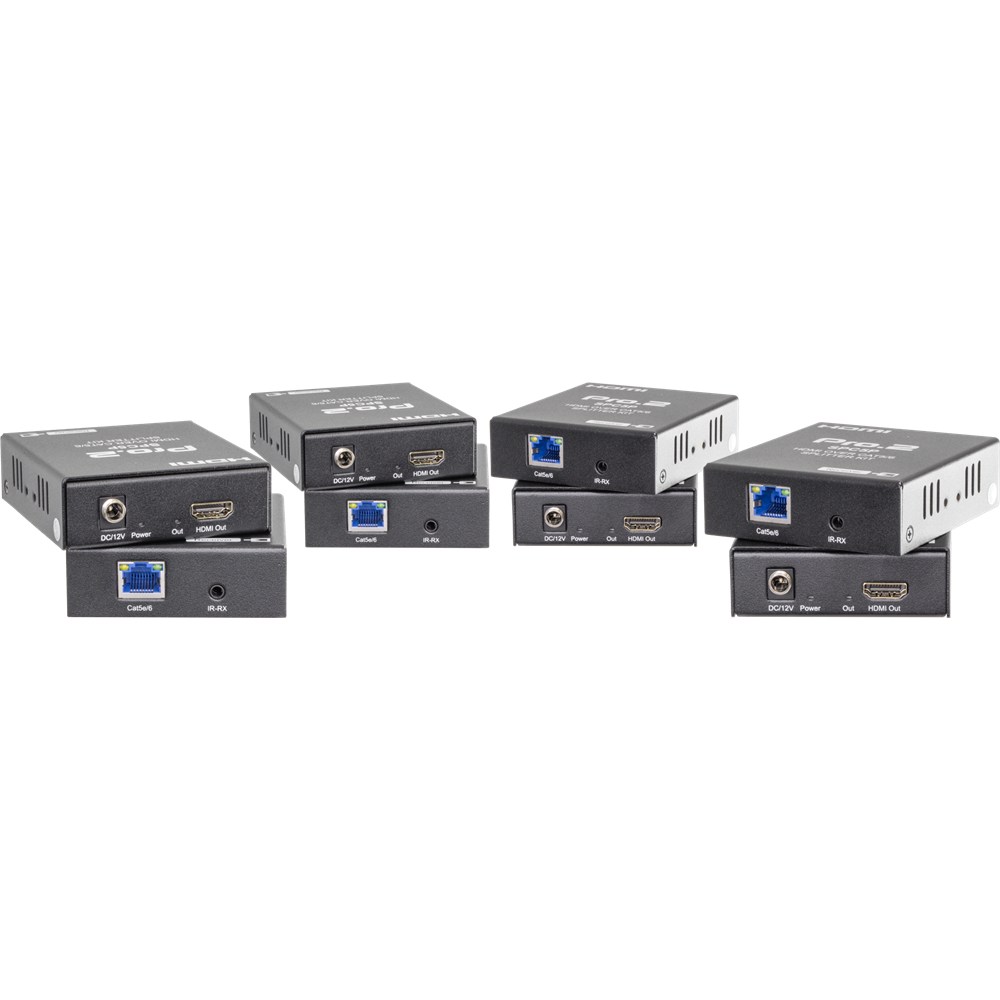

• 1 x HDMI Splitter & 8 x HDMI receivers

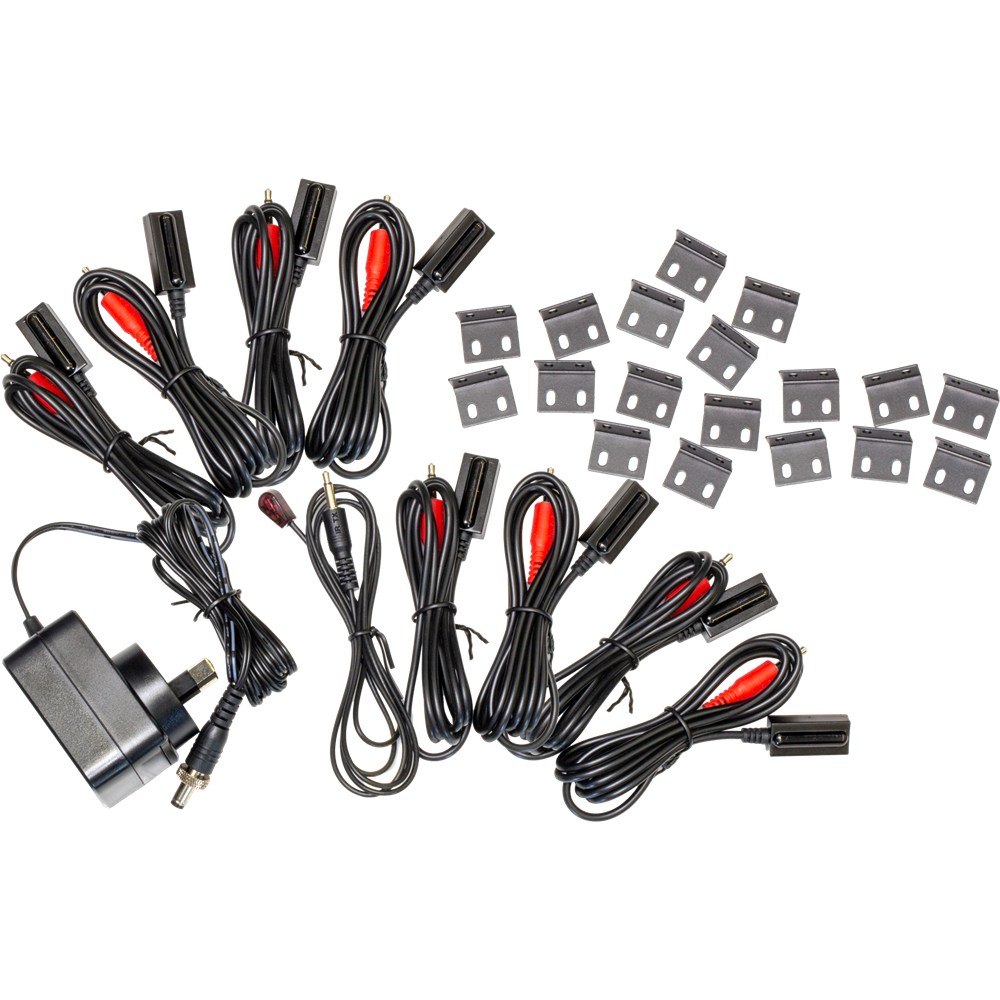

• 1 x 12V DC Adapter (for transmitter)
• 1 x User Manual
• 1 x IR-TX cables & 8x IR-RX cables
• 18 x mounting ears

Specifications
