DESCRIPTION

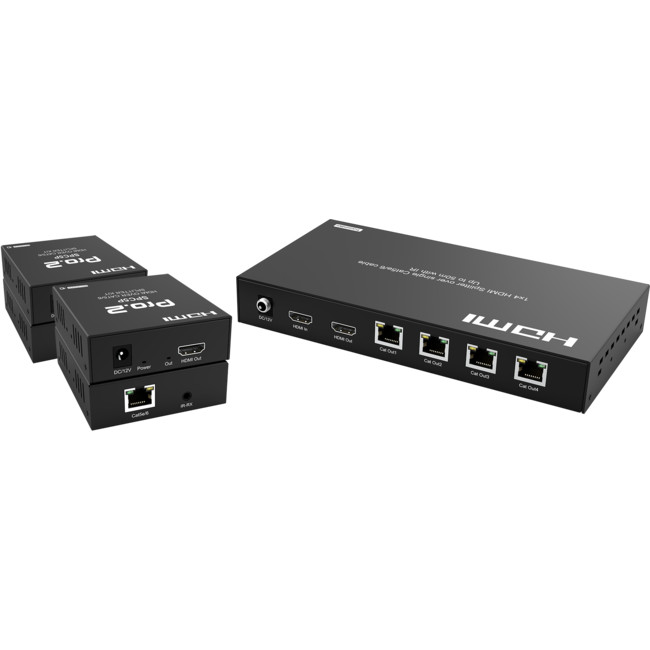

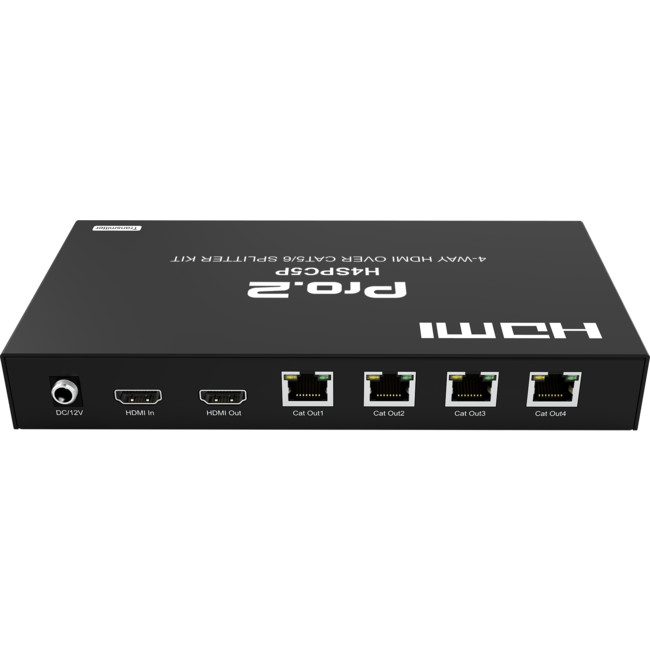

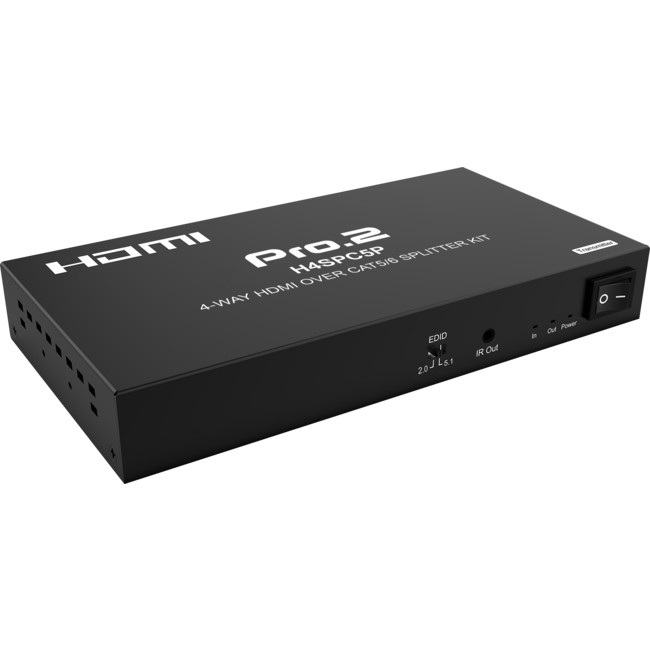

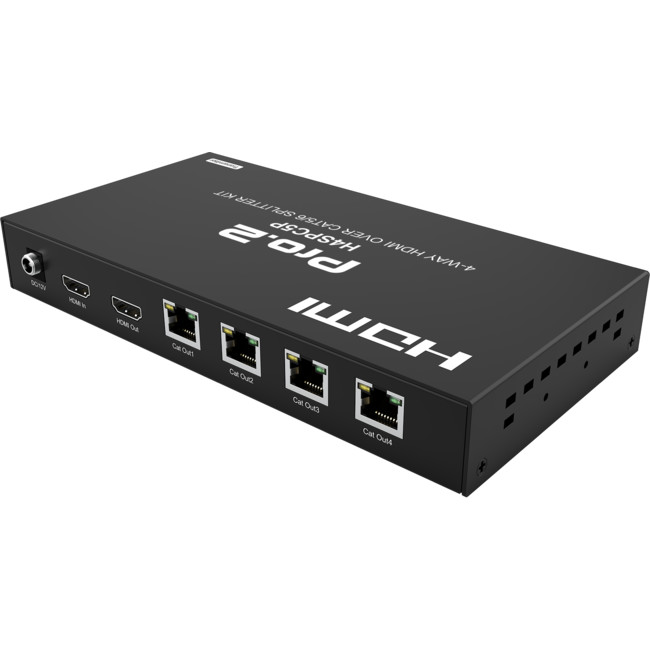

4-Way HDMI over CAT5E/6 Splitter Kit

Distribute a single HDMI source to up to four displays with ease. Ideal for Blu-ray players, HD TVs, Pay TV (Foxtel) and other HDMI source devices.

Transmit a high-quality HDMI signal up to 50 metres using a single Cat5e or Cat6 cable, providing a reliable and cost-effective solution for multi-room installations.

Key Features:

• HDMI Loop-Out
  Allows the HDMI signal to be extended over Ethernet while maintaining a direct connection to a local display at the source.

• Expandable & Cascadable Design
  Supports cascading up to 4 transmitter layers, enabling connection of up to 16 receivers for larger distribution setups. Simply hook up the loop-out from one transmitter to the input of another!

• Full HD Performance
  Supports video resolutions up to 1080p Full HD, including 3D content.

• Advanced Audio Support
  Compatible with stereo and 5.1-channel audio, with EDID control for easy audio format selection.

• Power over Cable (PoC)
  Receivers are powered directly from the transmitter, reducing the need for additional power supplies.

• One-Way IR Control
  Includes 2× IR receivers and 1× IR emitter, allowing remote control of the source device from the transmitter location.

In the Box

• 1 x HDMI Splitter & 4 x HDMI receivers
• 1 x 12V DC Adapter (for transmitter)
• 1 x User Manual
• 1 x IR-TX cables & 4x IR-RX cables
• 10 x mounting ears

Specifications
