AV DISTRIBUTION, MULTIROOM AV DISTRIBUTION

8K 48GBPS 2 WAY HDMI SPLITTER

64510016

HDMI2SP8K

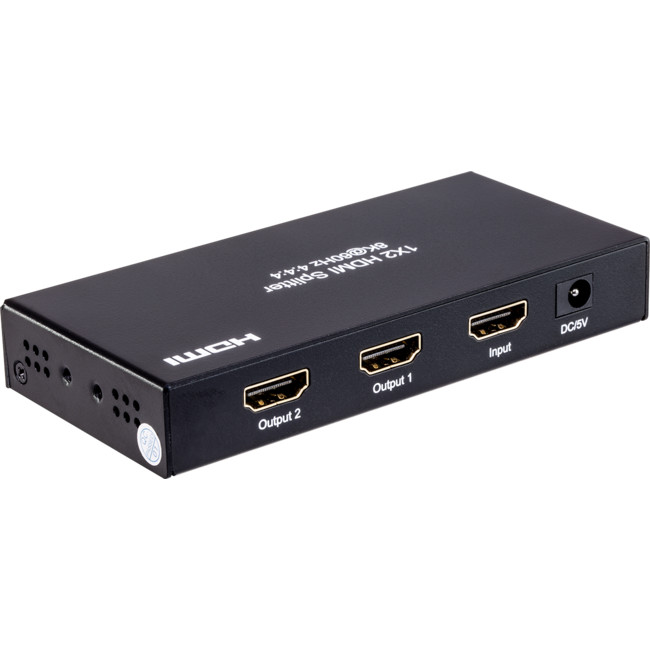

8K 48GBPS HDMI 1 IN 2 OUT SPLITTER

  • 8K@60Hz YUV 4:4:4
  • HDCP2.2 HDR10 10 bit deep colour
  • 48Gbps
  • 3 EDID modes
  • Downscaler
  • Rack ear mountable
Discontinued
  • Description
  • Resources

    • DESCRIPTION

    Features

    • Support resolutions up to 8K 7680x4320@60Hz YUV 4:4:4 ultra high definition
    • Simultaneously displays an 8K ultra HD source on two ultra HD displays
    • Support Bandwidth up to 48Gbps

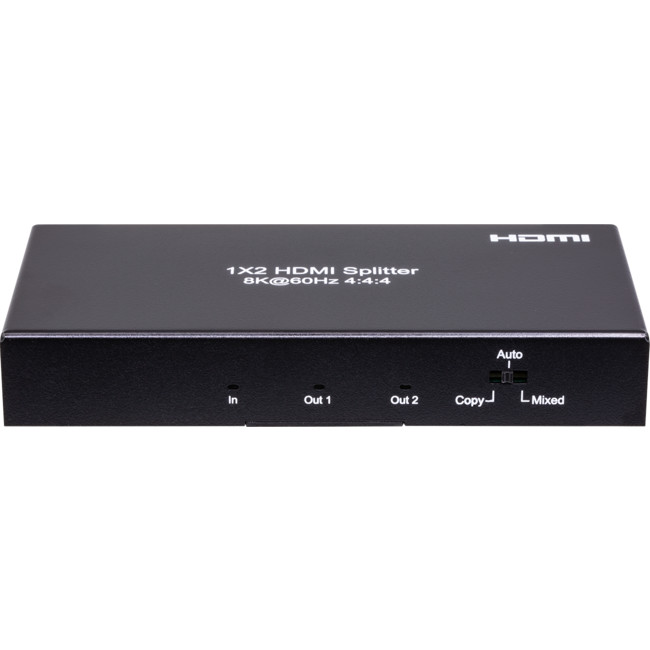

    • Three EDID settings, Copy, Auto, Mixed
    • HDCP2.2/ 1.4 Compliant
    • Support 10-bit Deep Color
    • Support LPCM 7. 1/ 24-bit/ 96 kHz, Dolby Atmos and Dolby/ DTS-7. 1
    • Support Dolby Vision, HDR10, HDR10+, HLG
    • Support Downscaler function (HDMI output 1)

    Specifications

    Operating Temperature Range

    -5 to +40C(+23 to +104°F)

    Operating Humidity Range

    5 to 90%RH (No Condensation)

    Bandwidth frequency

    48Gbps

    HDCP

    HDCP2.2/ 1.4

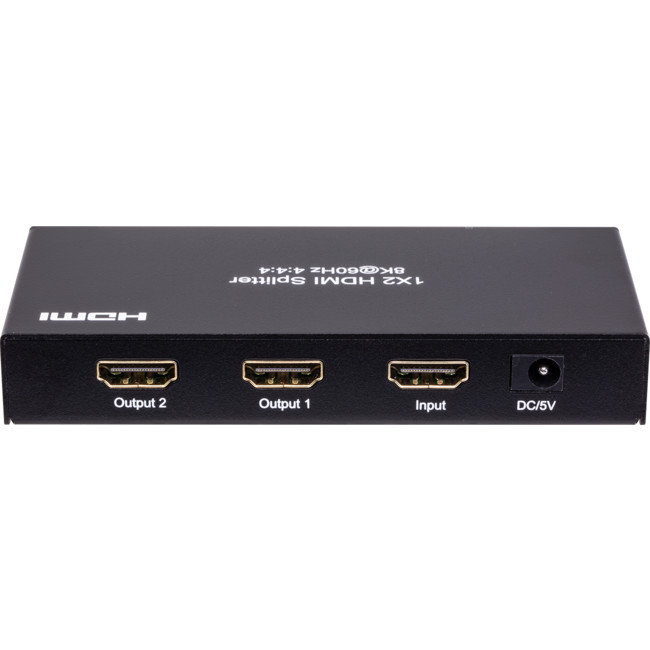

    Input ports

    1xHDMI(female)

    Output ports

    2xHDMI outputs(female)

    Resolution outputs

    up to 8K(7680x4320@60Hz YUV 4:4:4)

    Dimensions(LxWxH)

    120.3x57.2x 19mm

    Power consumption

    5W(MAX)

    Audio format

    LPCM 7.1/ 24-bit/ 96 kHz, Dolby Atmos and Dolby/DTS-7.1

    Net Weight

    191.7g

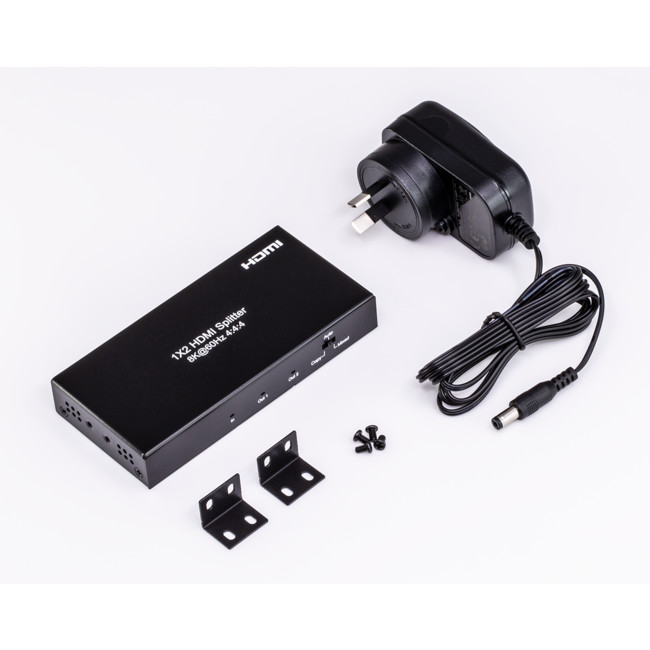

    Package contents

    • 1 x HDMI2SP8K Splitter
    • 1 x 5V/2A DC Adapter
    • 2 x Mounting ears
    • 1 x User Manual

    EDID applications:

    • Output 2 is a priority port, downscale will be enforced in some applications.
    • If there is only 1 TV, always connect to the output2 and EDID set to Auto or Copy, the output will be up to 8K60YUV444, but not Mixed (8K60YUV420 only).
      When connecting to output 1, which is not suggested in this application, it will output up to 1080P60 on the EDID Copy, 8K60YUV444 on the EDID Auto, and 4K60 on the EDID Mixed.
    • If both TVs are the same resolution, EDID should be set to either Auto or Copy, both output will be up to 8K60YUV444, but not Mixed (output 1 up to 4K60 and output 2 up to 8K60YUV420 only).
    • If two TVs are different resolutions, the higher resolution TV should connect to output 2.
      EDID Auto will output the lowest resolution of the two TVs,
      EDID Mixed, Output 2, up to 8K60YUV420 (not 444), Output 1, up to 4k60 only
      EDID Copy, Output 2, up to 8K60YUV420 (not 444), Output 1,up to 4k60 only
