IT NETWORK & DATA, USB ACCESSORIES

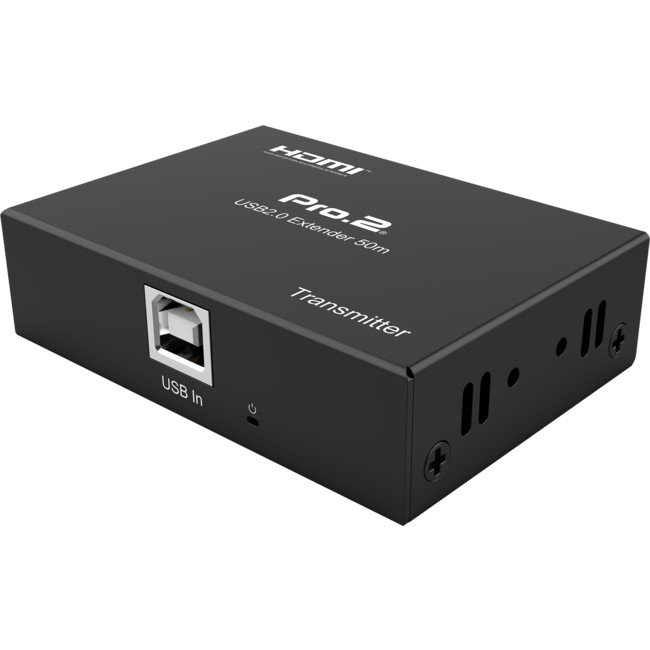

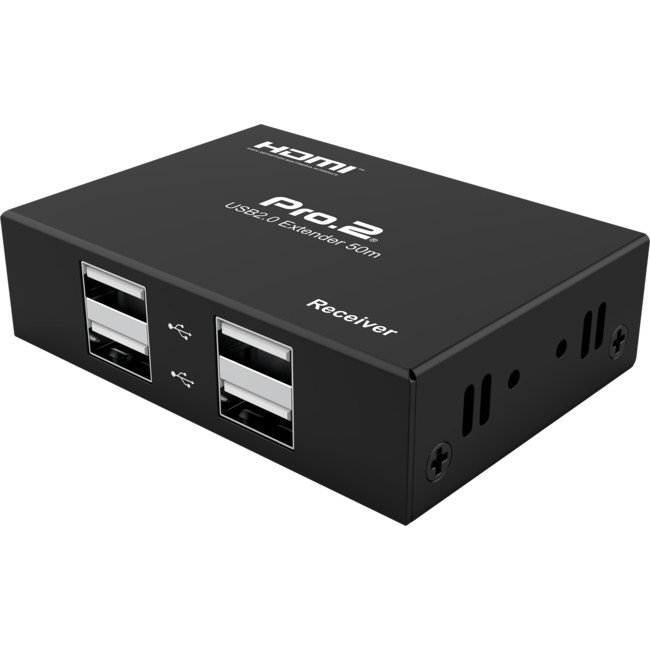

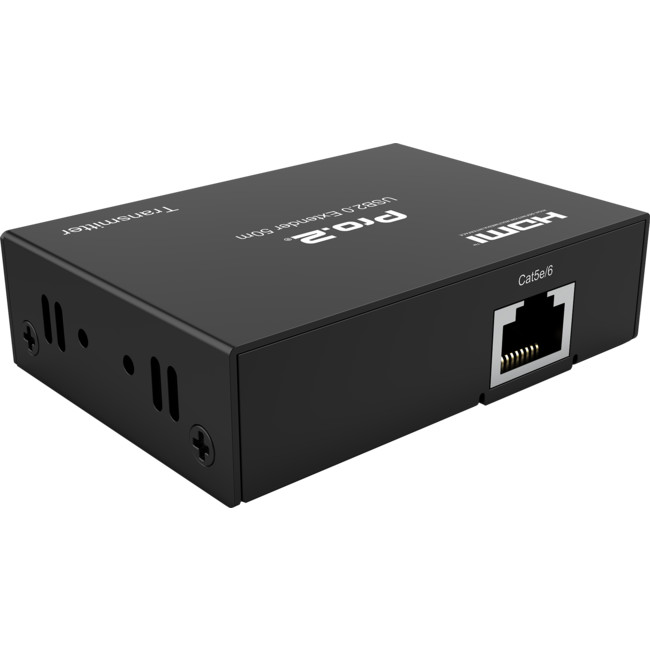

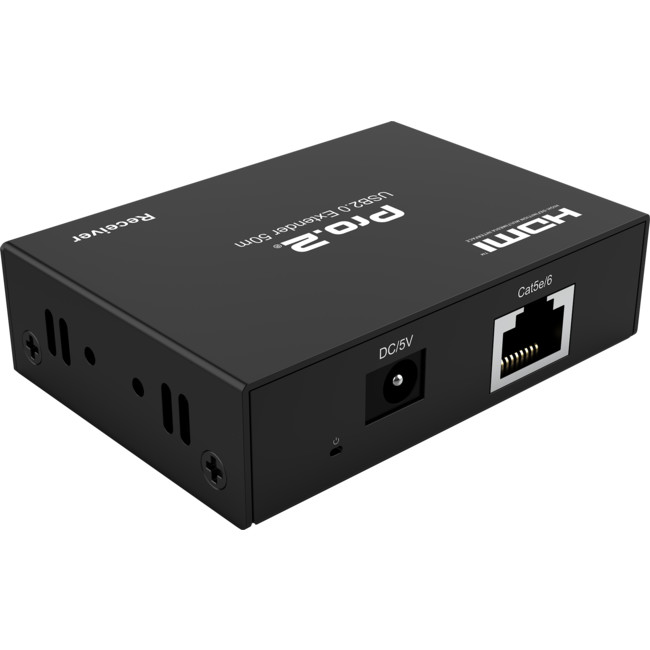

USB2.0 OVER CAT5 EXTENDER 50M

09051747

USBCAT14V2

1 in 4 out USB2. extender over a single Cat5e/6 cable

  • USB2.0 standard
  • 1 in 4 out USB
  • Hot plug no driver required
  • Up to 50m distance
  • Only one power supply required
  • Description
  • Resources

    • DESCRIPTION

    USBCAT14 PRO2 50M USB2.0 OVER CAT5 EXTENDER

    1 in 4 out USB2.0 extender over single CAT5e/6 cable

    Extend a USB port to a 4-port USB hub over a single CAT5e/6 cable

    Features

    • 1 in 4 out USB2.0 extender
    • Data transmission up to 50m over a single CAT5e/6 cable
    • Built-in USB2.0 concentrator, backward compatible
    • Support various operation systems, such as Windows7/8/10, Mac OS V8.6, and above, Linux
    • Low power consumption. One power supply is required on the receiver end only
    • Supports hot plug, no need to install the driver
    • Supports keyboard/mouse hibernate or awaken PC in along distance
    • Mini compact size

    Specifications

    Operating Temperature Range0°C to +40°C (32°F to +104°F)
    Operating Humidity Range 5 to 90 % RH (no condensation)
    USB port at transmitter 1 × USB type B
    USB port at receiver 4 × USB2.0 type A
    Support Operating Systems Windows 7/8/10, Mac OS v8.6 and above, Linux system
    USB Standard USB2.0
    Transmitter USB Electric Current Less than 0.1A
    Data Transmission Distance 50m over CAT5e/CAT6 cable
    Receiver Power Consumption 4W (Maximum)
    Dimensions (L×W×H) 70mm × 53.2mm × 22mm
    Weight 140g (pair)
    Power Supply 5V DC 1A

    What's In The Box?

    • Transmitter × 1pc
    • Receiver × 1pc
    • 5V DC 1A Power Supply × 1pc
    • USB B plug to USB A plug cable × 1pc
    • Manual
