DESCRIPTION

Overview

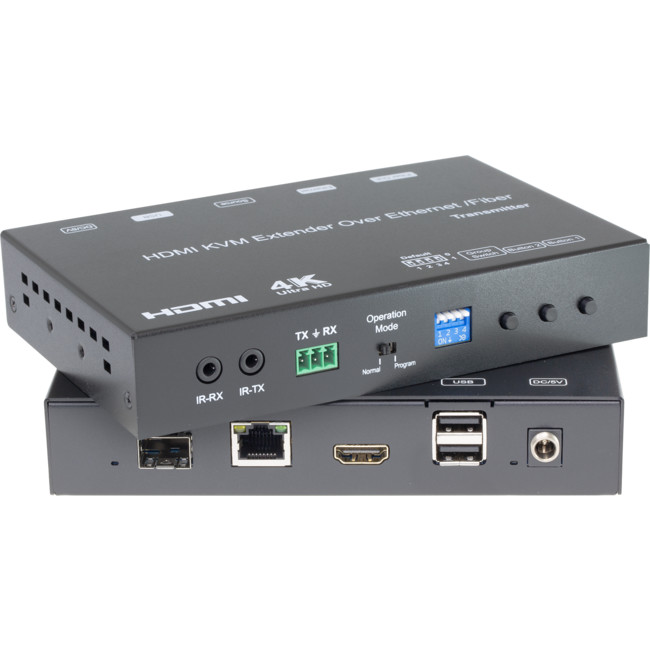

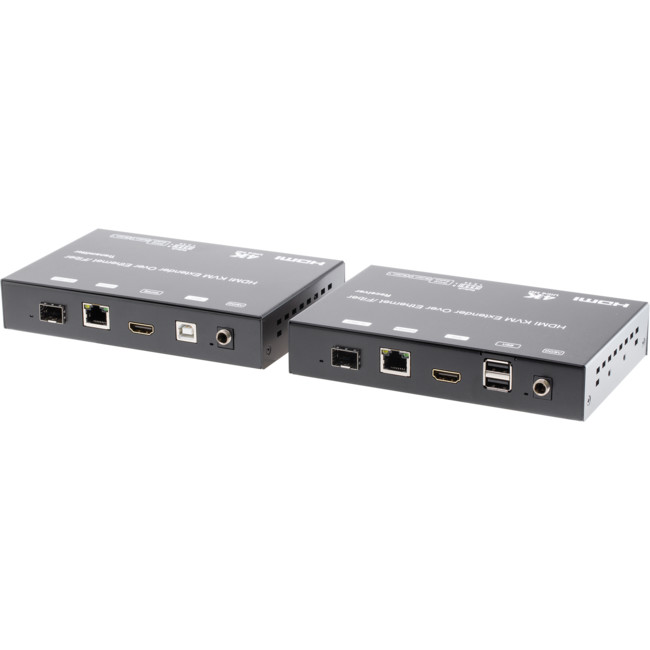

PRO2 HDMIKVMIP 4K HDMI & USB Over IP Extender

This extender transmits high-quality audio, video, and USB signals over a Local Area Network (LAN). Designed for KVM extension, it supports multiple configurations, including point-to-point, point-to-multipoint, and multipoint-to-multipoint setups, as well as video wall broadcasting. Simple installation using a Gigabit Ethernet switch (with IGMP support) and CAT5e/6 cables for extension. It is managed via USB, RS232, IR, or web browser to deliver UHD high-resolution video extension over an IP network.

• 4K UHD HDMI over IP extension.
• USB 2.0 over IP extension.
• RS232 bi-directional extension and RS232 control.
• 4-bit switch for 16 stream channel selection.
• Supports Dolby True HD, DTS-HD Master Audio.
• Supports 2-way Wide Band IR extension (38kHz~56kHz).
• Transmit over single CAT5e/6 cable up to 120m.
• Transmit over Fiber Optical cable up to 60km (Single Mode).
• Networking environment under Giga Ethernet switch and CAT5e cable.
• Point to point extension, Unicast, Multicast and Video Wall system (Max 8×16).
• Output video rotation.
• Output video partial enlargement.
• HDCP 1.4 compliant.

Note: When transmitted over Fiber, 4K×2K requires a minimum 3.125G module.
