4-WAY HDMI QUAD MULTI-VIEWER |

AV DISTRIBUTION, AV SELECTORS

4-WAY HDMI QUAD MULTI-VIEWER

07350815

HD41QMV2

HDMI 4 in 1 out Seamless Multi-viewer Switch

Seamless HDMI 4 way switch
Multiviewer in one screen
Video resolution up to 1080P 60Hz
Audio switching
IR remote and button control

Description

Resources

DESCRIPTION

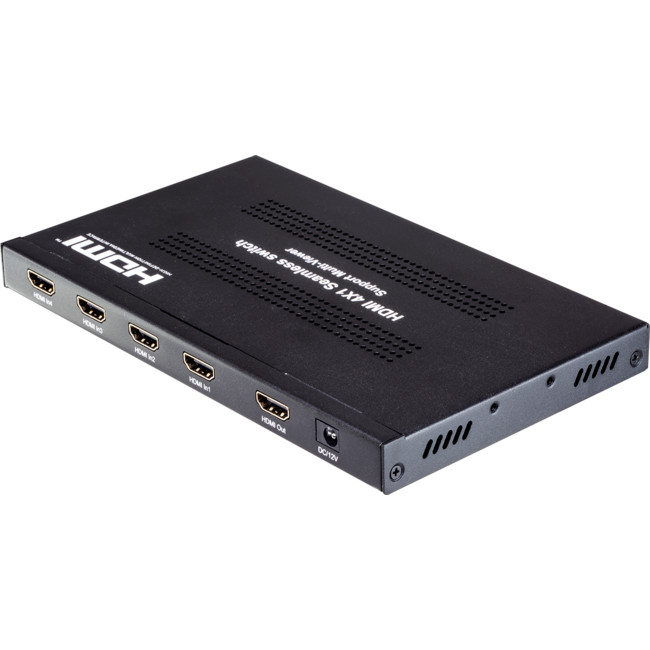

HD41QMV2 PRO2 4-WAY HDMI QUAD MULTI-VIEWER

This HD41QMV2 quad multi-viewer with a seamless switching feature allows you simultaneously and synchronously monitor/view 4 different HD video sources on a single display. Easily switch from the 5 display modes via the IR remote control or the button at the front panel.

Supports 4 × HDMI input, 1 × HDMI output, up to 1080p 60hz resolution
View 4 × HD video sources simultaneously on a single display
Seamless switching 4 × HD video sources between 5 display modes
Supports Audio Switching

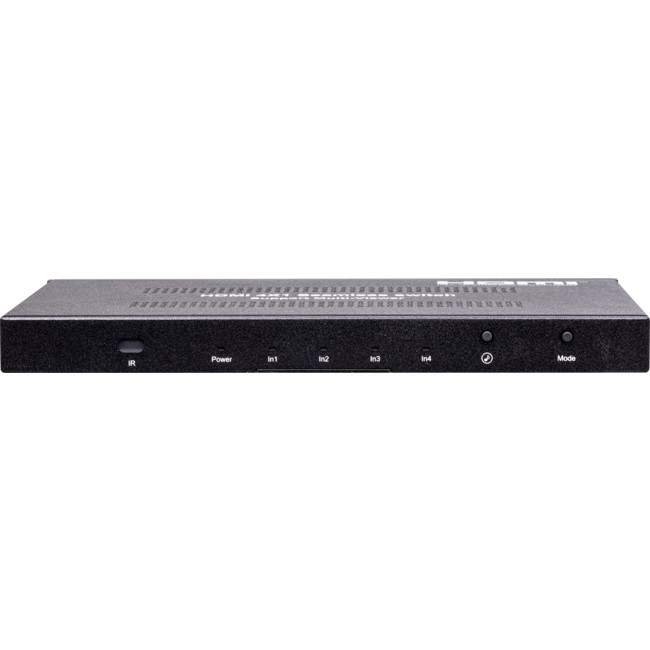

IR remote control and Panel Button Control
Support audio output format: PCM2.0
Easy to mount with the mounting ears supplied

Specifications

Operating Temperature Range	0°C to +40°C (32°F to +104°F)
Operating Humidity Range	5 to 90%RH (No Condensation)
Bandwidth Frequency	4.95Gbps
HDCP	HDCP1.4

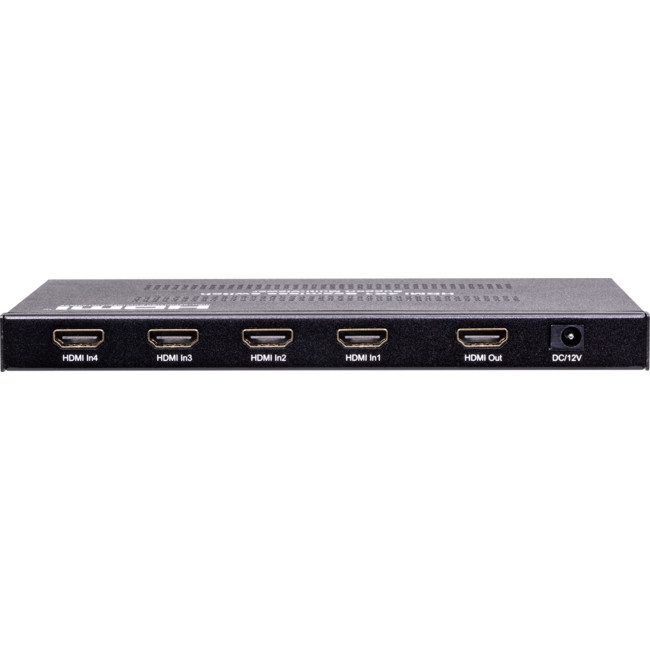

Input Ports	4 × HDMI (socket)
Output Ports	1 × HDMI outputs (socket)
TV Resolution	50Hz: 576i; 576p; 720p; 1080i; 1080p 60Hz/59.94Hz: 480i; 480p; 720p; 1080p 30/29.97/24/25Hz: 1080p

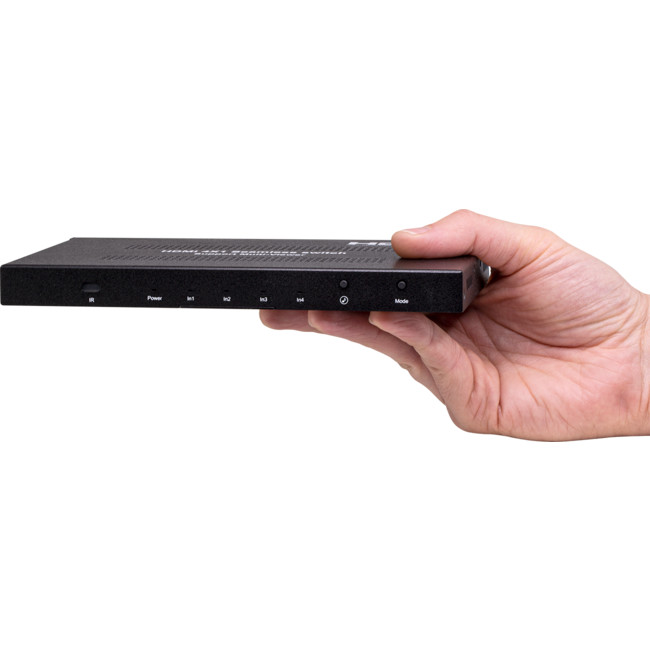

Dimensions (L×W×H)	190.4mm × 113mm × 17mm
Power Consumption	7W (Max), 12V DC 1A, power supply included
Transmission Distance	Input 8m, Output 15m (Maximum) over standard HDMI cable/26AWG
Net Weight	480g
IR Remote Control Battery	CR2025 button cell

Display modes

What's In The Box?

HD41QMV2 × 1pc
12V 1A DC Power supply × 1pc
IR remote controller × 1pc
Instruction manual × 1pc
Mounting ear × 1 pair
