IT NETWORK & DATA, HARDWARE

4RU HINGED WALL MOUNT CABINET 600X550MM

04855402

WMC4U55H

PRE-ASSEMBLED 4RU HINGED WALL MOUNT CABINET 600X550MM

  • Hinged swing frame
  • Removable side panels
  • Top/Bottom cable entry knock-out plate
  • Tempered glass front door
Discontinued
  • Description
  • Resources

    • DESCRIPTION

    4RU HINGED WALL MOUNT CABINET – 600mm × 550mm

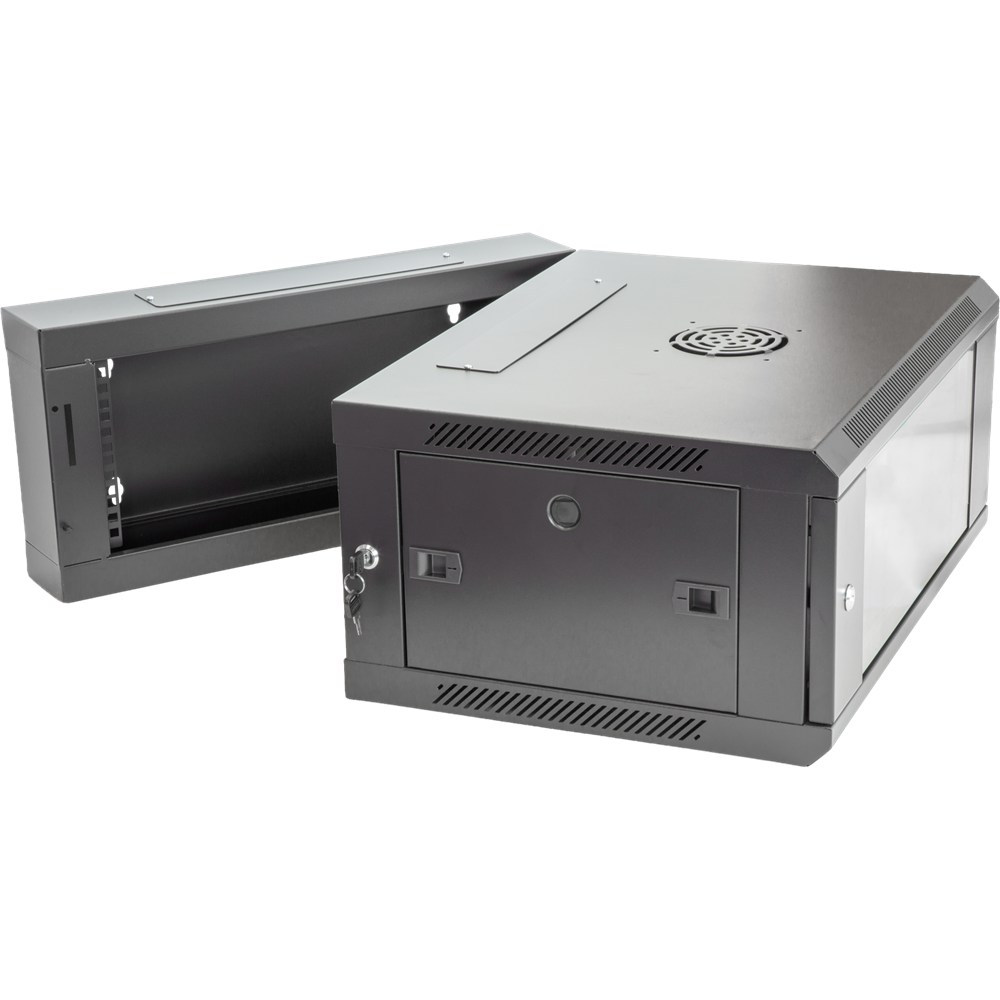

    The hinged swing-open design provides easy access to the back of the cabinet, making equipment installation and maintenance simple and convenient.

    Features

    • Pre-assembled 4RU wall mount cabinet: 280mm height

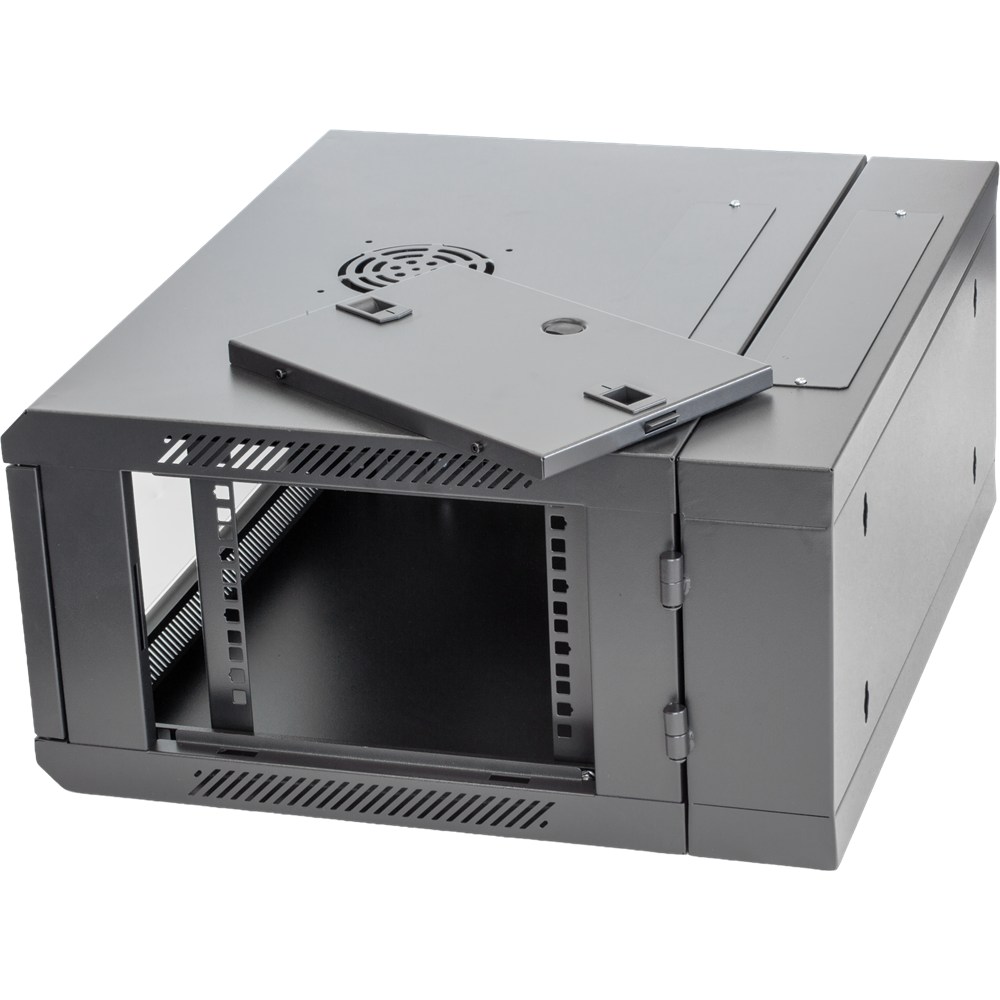

    • Swing frame
    • Welded frame and stable structure
    • Standing or wall mounting installation
    • Easy wall mounting bracket installation
    • 19″ EIA-compliant standard rack frame
    • Quick removable side panels
    • Top/Bottom cable entry knock-out plates

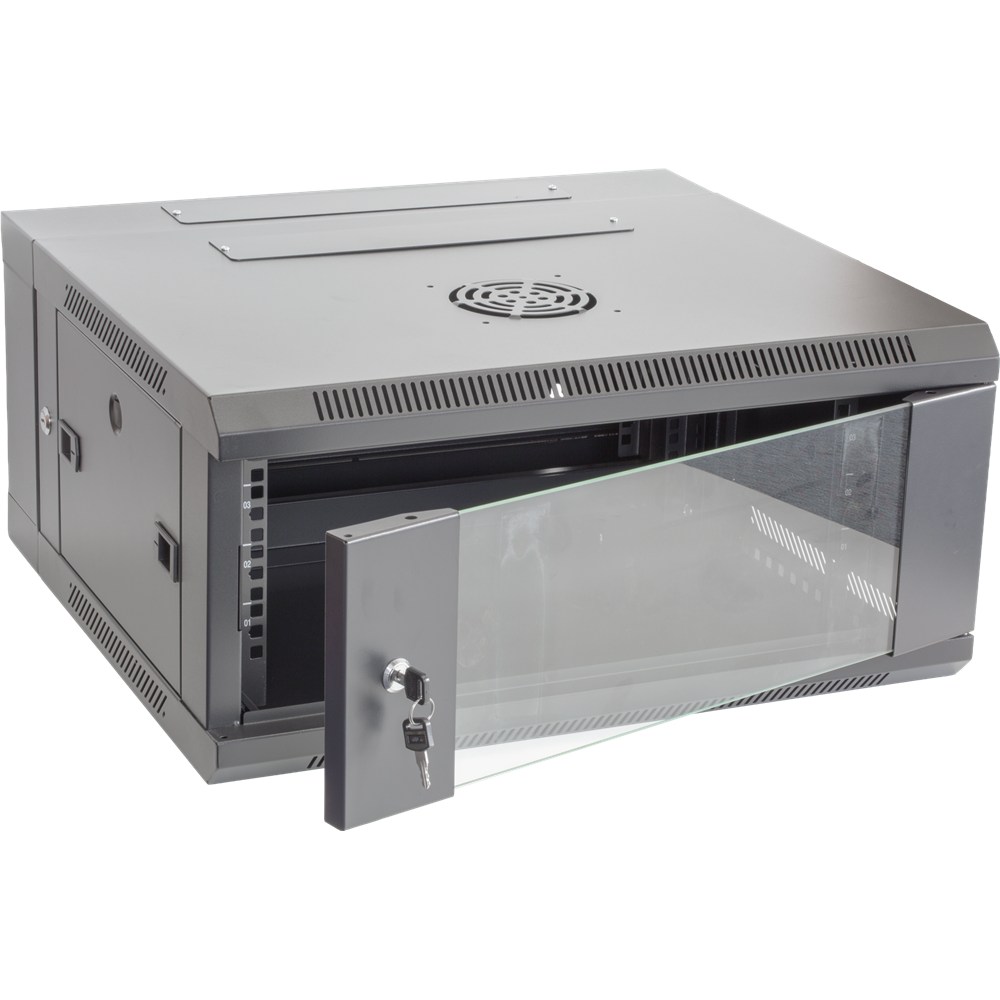

    • Tempered glass front door with over 180 degrees of turning angle
    • Easy fan installation with the fan cutout on the top cover
    • Removable hinges to change the front door swing direction
    • L-shaped mounting profile, easy to adjust on the mounting rail
    • A wide range of optional accessories allows you to adjust the cabinet to your own needs
    • Supplied with 10 sets of screws & nuts
    • Supplied with 2 door keys

    Specifications


    MaterialQuality SPCC cold-rolled steel
    Thickness1.0mm
    Width600mm
    Depth550mm
    Height280mm (4RU)
    Rail Width19″ EIA-compliant
    Loading Capacity60kg
    Protection ClassIP20
    Surface FinishingDegreasing, Pickling, Phosphating, Powder-coated
    Fan Size Suits120mm × 120mm
    Tempered Glass Thickness5.0mm
    ComplianceANS/EIA RS-310-D, IEC297-2, DIN41494, Part 1, DIN41491, Part 7, GB/T3047.2-92
