IT NETWORK & DATA, HARDWARE

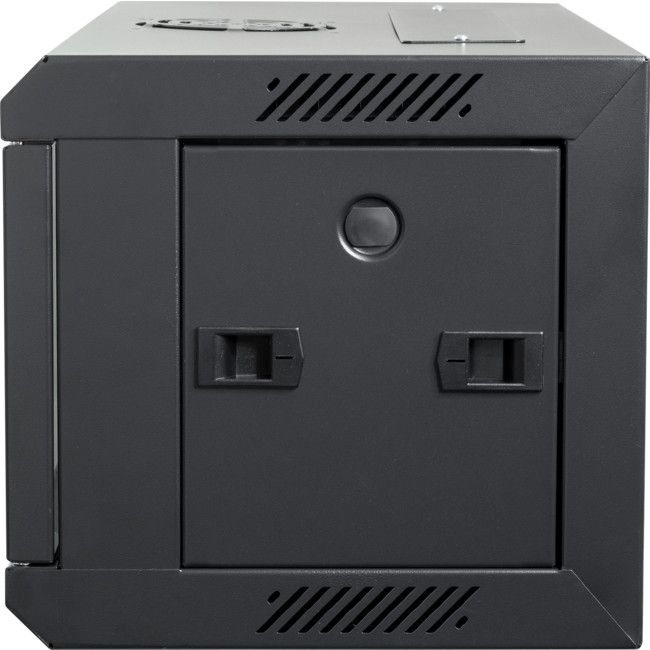

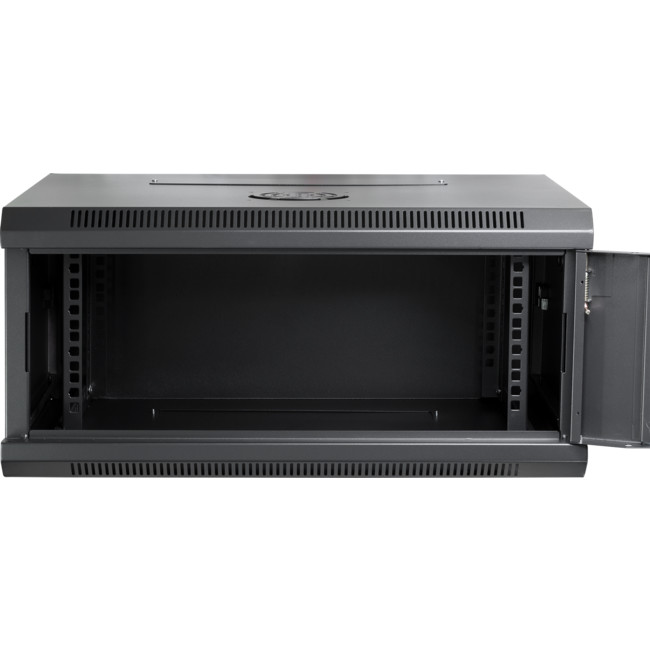

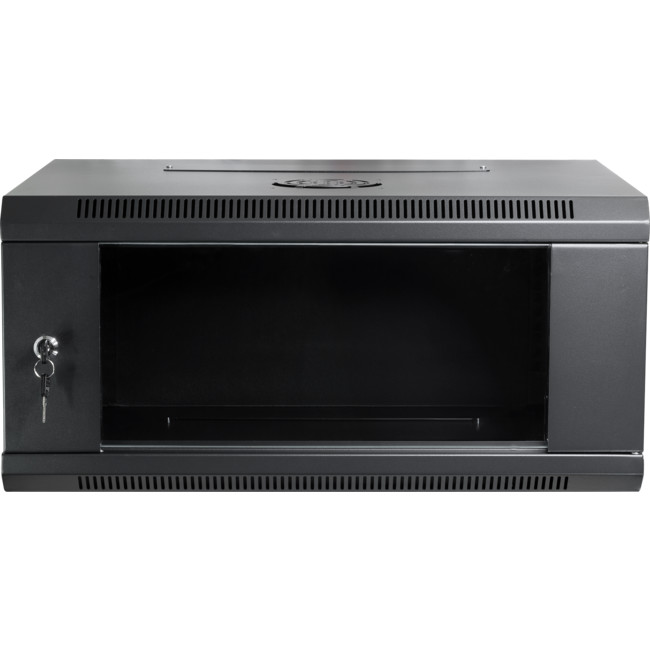

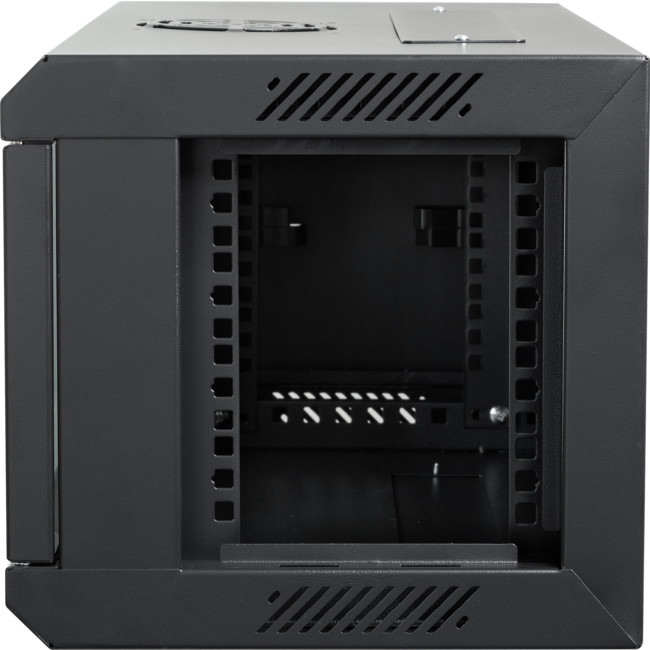

4RU WALL MOUNT CABINET 600X300MM

04855395

WMC4U30

PRE-ASSEMBLED 4RU WALL MOUNT CABINET 600X300MMX280MM

  • Removable side panels
  • Top/Bottom cable entry knock-out plate
  • Tempered glass front door
  • Front door swing direction changeable
  • Description
  • Resources

    • DESCRIPTION

    4RU WALL MOUNT CABINET – 600mm × 300mm

    • Pre-assembled 4RU wall mount cabinet: 280mm height
    • Welded frame and stable structure
    • Standing or wall mounting installation
    • Easy wall mounting bracket installation
    • 19″ EIA-compliant standard rack frame
    • Quick removable side panels
    • Top/Bottom cable entry knock-out plates
    • Tempered glass front door with over 180 degrees of turning angle
    • Easy fan installation with the fan cutout on the top cover
    • Removable hinges to change the front door swing direction
    • L-shaped mounting profile, easy to adjust on the mounting rail
    • A wide range of optional accessories allows you to adjust the cabinet to your own needs
    • Supplied with 10 sets of screws & nuts
    • Supplied with 2 door keys

    Specifications


    Material Quality SPCC cold-rolled steel
    Thickness 1.0mm
    Width 600mm
    Depth 300mm
    Height 280mm (4RU)
    Rail Width 19″ EIA-compliant
    Loading Capacity 40kg
    Protection Class IP20
    Surface Finishing Degreasing, Pickling, Phosphating, Powder-coated
    Fan Size Suits 120mm × 120mm
    Tempered Glass Thickness 5.0mm
    Compliance ANS/EIA RS-310-D, IEC297-2, DIN41494, Part 1, DIN41491, Part 7, GB/T3047.2-92
    • Resources not found.
