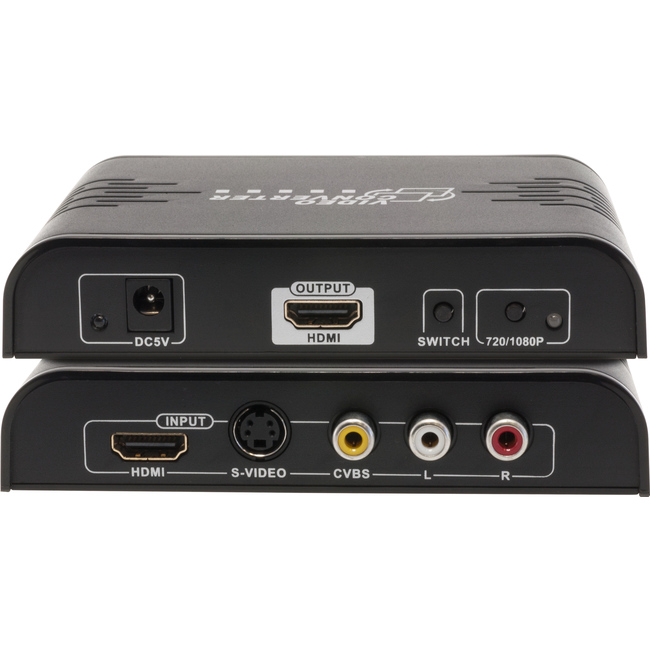

CSH01 COMPOSITE SVIDEO TO HDMI CONVERTER/UPSCALER

CSH01 COMPOSITE SVIDEO TO HDMI CONVERTER/UPSCALER
Code: 64550055

Discontinued

The CSH01 RCA Composite video and S-video to HDMI Scaler takes either Composite Video or S-Video as input and converts it to HDMI 1080P. It allows older analog devices to be integrated into an HD home theater system. Plug and Play, no software driver is needed. Perfect for connecting old composite video devices to a modern computer monitor via HDMI!

{tab=Features}

  • Up-scales Composite Video or S-Video up to full HD 1080P
  • HDMI output is optional at 720P or 1080P
    • HDMI Signal includes Stereo PCM Audio
  • Input video systems – NTSC and PAL is automatically detected and adjusted
  • HDMI Input enables switcher functionality and means no HDMI input on your TV is lost!
  • HDMI, Composite Video and S-Video can remain connected at the same time, and be switched by a button push!
  • Composite Video and S-Video share the same audio input

{tab=Specifications}

HDMI input resolutions supported
  • 480i/60
  • 480p/60
  • 576i/50
  • 576p/50
  • 720p/50
  • 720p/60
  • 1080i/50
  • 1080i/60
  • 1080p/50
  • 1080p/60
PC/DVI(HDMI) input resolutions supported
  • 640×480/60
  • 800×600/60
  • 1024×768/60
  • 1280×720/60
  • 1280×768/60
  • 1280×1024/60
  • 1360×768/60
  • 1366×768/60
  • 1400×1050/60
  • 1440×900/60
  • 1680×1050/60
  • 1920×1080/60
CVBS input Detect NTSC/PAL automatically
1.0Vp-p Impedance: 75Ω
S-Video input Detect NTSC/PAL automatically
Y: 1.0Vp-p lmpedance 75Ω
C: 0.6Vp-p Impedance: 75Ω
HDMI DOC signal 5Vp-p (TTL)
HDMI TMDS signal 0.5~1.0Vp-p
HDMI output Signal Switchable:

  • 720P@50/60
  • 1080P@50/60
Power Consumption 3.5W
Power supply 5VDC / 2A
Dimension 129 x 85 x 25.5mm

{/tabs}

Downloads

User's Manual

Pro.2 HDMI Converters sell sheet (pdf)
