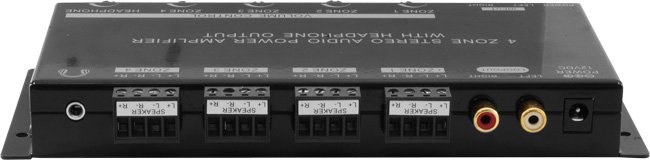

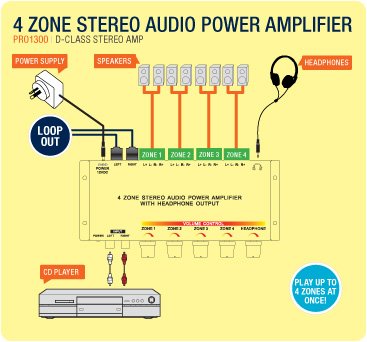

4 Zone Stereo Audio Power Amplifier With Headphone Output

SPECIFICATIONS

Speaker Audio Power Amplifier (x4)

• Amplifier Type:Stereo D-Class
• Output power:15W(rms) per channel
• THD+N :0.06 % (@ RL=8 ohm, f = 1 kHz)
• Minimum Load Resistance :4 ohm
• Includes Speaker Protection circuit.

Earphone Audio Power Amplifier

• Output power:105mW(rms) per channel
• THD+N :0.05 % (@ RL=16 ohm, f = 1 kHz)
• Minimum Load Resistance :16 ohm

Power & Dimensions

• Power Consumed: 9A Max

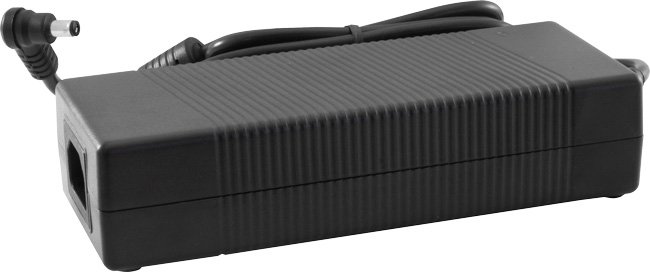

• Power Source: DC 12 Volts
• Size (LxWxH): 205 mm x 108 mm x 26 mm
• Net Weight (Unit only): 0.48 Kg
