4 ZONE VGA+AUDIO OVER CAT5 DISTRIBUTION HUB

Features:

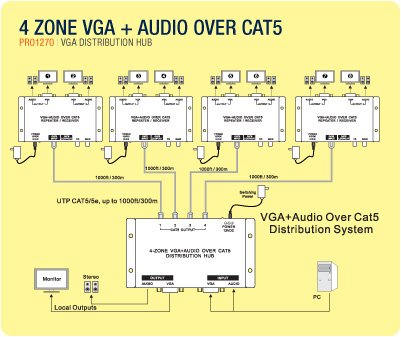

• Distribute your VGA+Audio signal via single UTP CAT5/5e to up to 4 zones (8 outputs), each receiver has 2 outputs
• Transmission Distance up to 1000ft / 300m via UTP CAT5/5e
• With the loopout function on the receiver, it can be set up more than 4 zones.
• 350 MHz signal transmission bandwidth
• Provides 4 ports RJ45 outputs for transmission
• With local VGA & audio outputs
• 12VDC switching mode power supply included
• 1x VGA + 1x 3.5mm stereo audio input
• 1x VGA + 1x 3.5mm stereo audio output
• 4x CAT5 outputs
• Distance via CAT5 Cable:
  640*480 pixels    (VGA)—300M
  800*600 pixels   (SVGA)—200M
  1024*768 pixels   (XGA)—180M
  1280*1024 pixels (SXGA)—120M
• 1600*1200 pixels (UXGA) —100M
