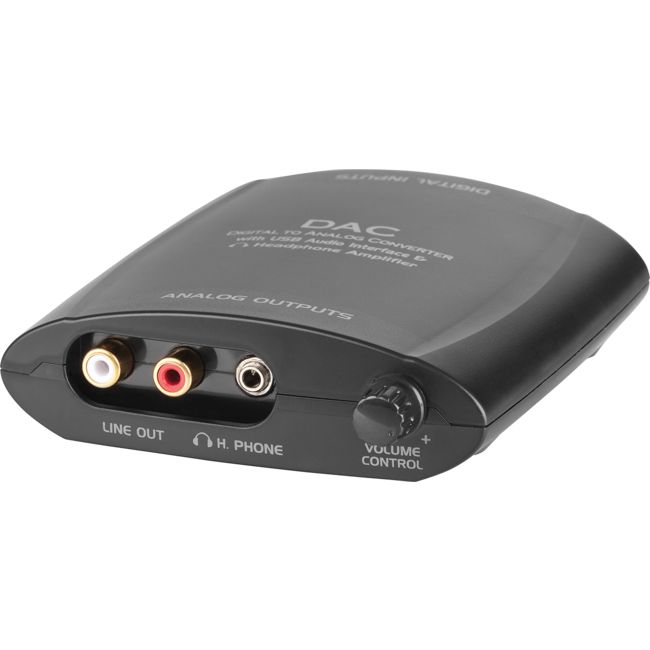

DAC32 DIGITAL AUDIO CONVERTER

This converter takes a Toslink optical, SPDIF coaxial or USB digital audio source and converts it to standard analogue left and right stereo audio. Allows for digital audio devices to be interfaced to analogue components such as a power amplifier, receivers, powered speakers or headphones via standard RCA line level output. It has a built in OP amp with adjustable volume control for personal listening through earphones or headphones.

Applications

  • TV optical output to external analog input speakers
  • Computer to external speakers with L&R RCA inputs
  • CD players to analog input sound system

Features

  • Built-in Op-amp with adjustable level control
  • Bridge legacy sound system with digital sources
  • Support up to 24bit / 192kHz via to slink optical andSPDIF coaxial and USB interface
  • Plug and play with Windows 7, Windows XP and Windows Vista
  • Requires no additional drivers or software

Specifications

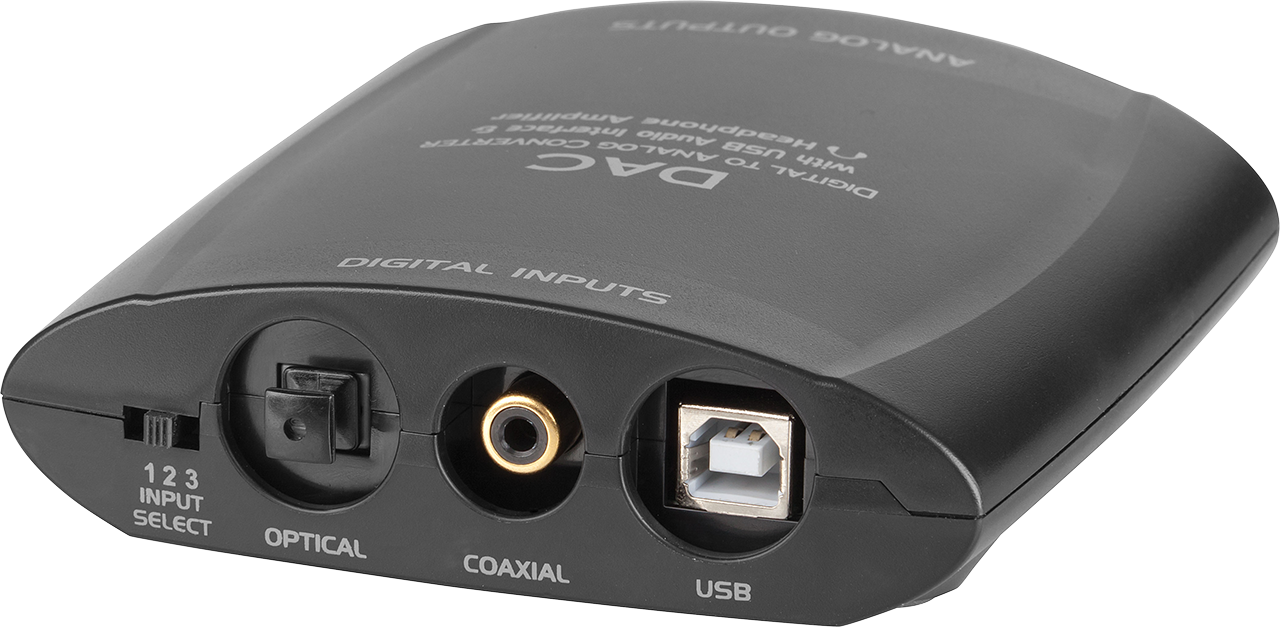

  • Inputs: USB / Toslink (Optical) / S/​PDIF coaxial (Switchable)

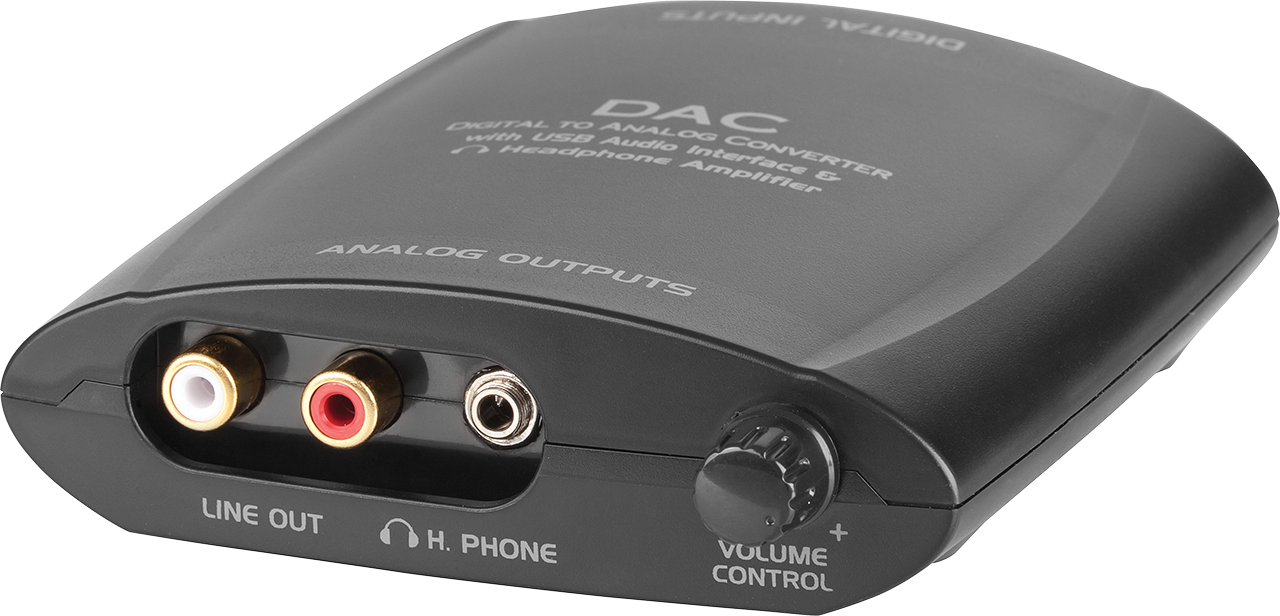

  • Outputs: left and right stereo audio RCA and 3.5mm stereo headphone jack (Built-in OP headphone amplifier)
  • Bit Rate: 16-bit to 24-bit
  • Sample Rate: 32kHz / 44.1kHz / 48 kHz / 96kHz / 192kHz (via toslink.optical)
  • 32kHz / 44.1kHz / 48 kHz / 96kHz (via USB)
  • Power supply: 5VDC 1A SM510USB (NOT included)
  • Dimensions: 111 (W) x 105 (D) x 30 (H) mm

* Note: This DAC accepts 2 channel digital audio only, and works with any PCM stream with DolbyDigital or DTS disabled.
