PRO1376 TOSLINK DIGITAL AUDIO SWITCH

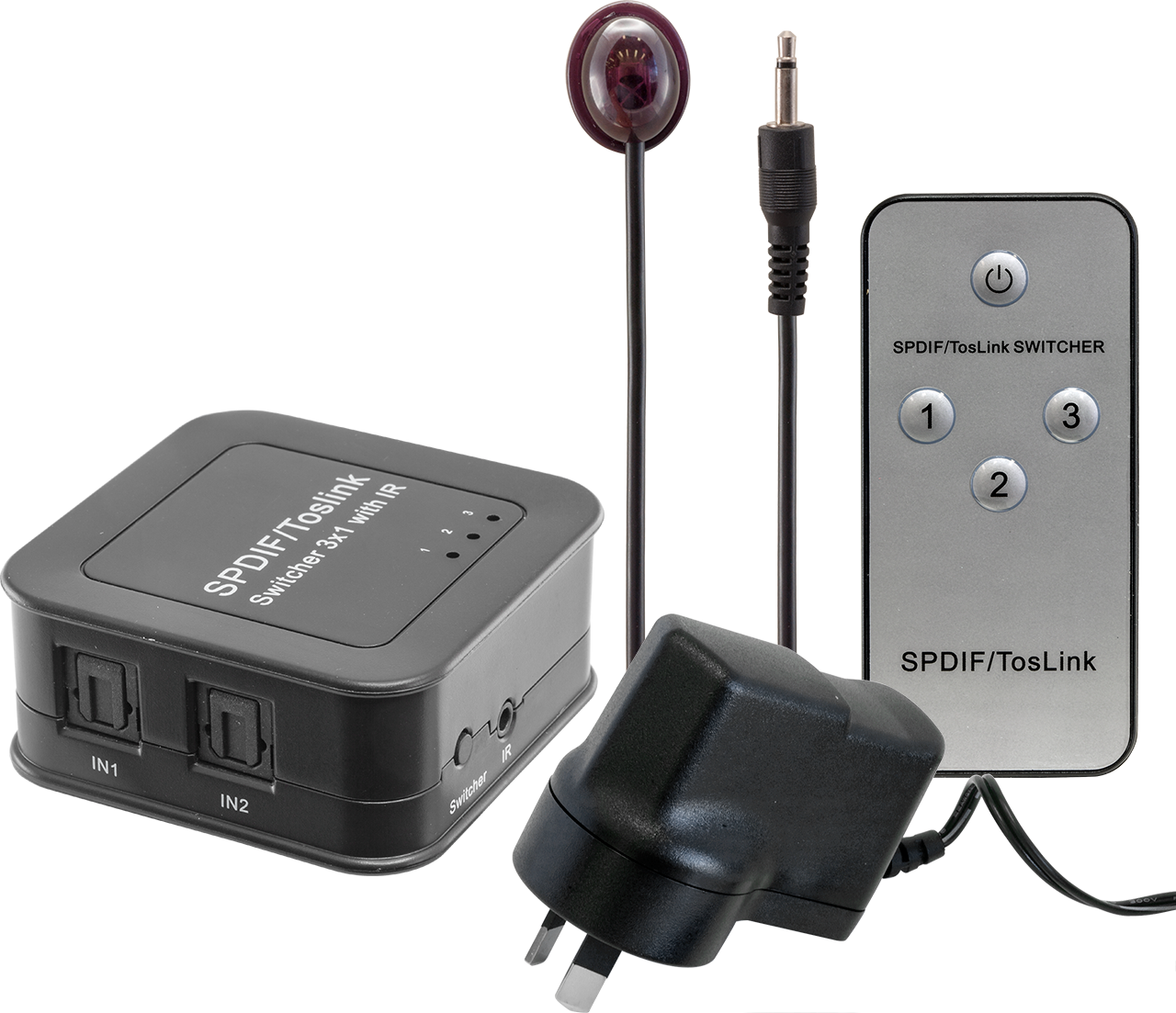

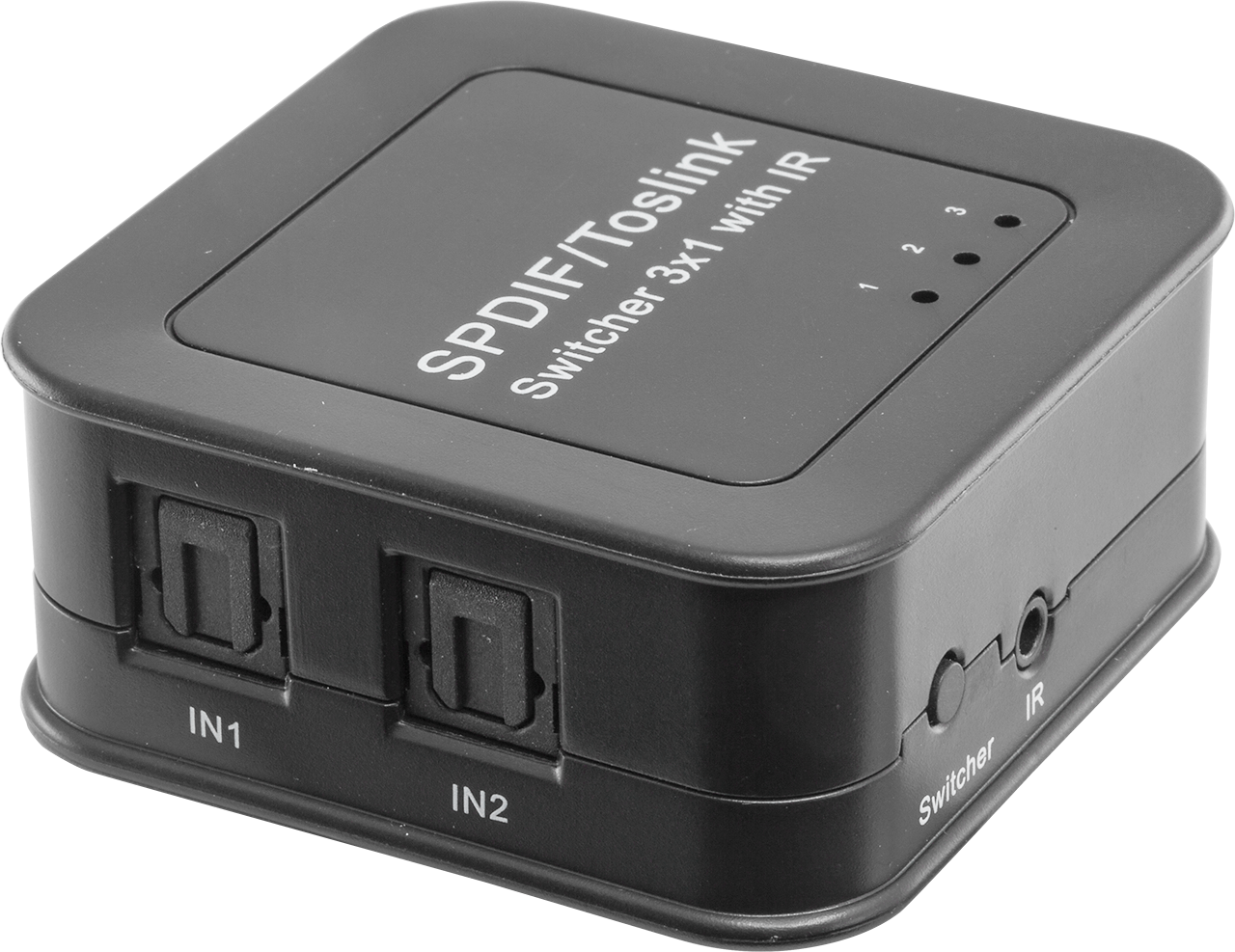

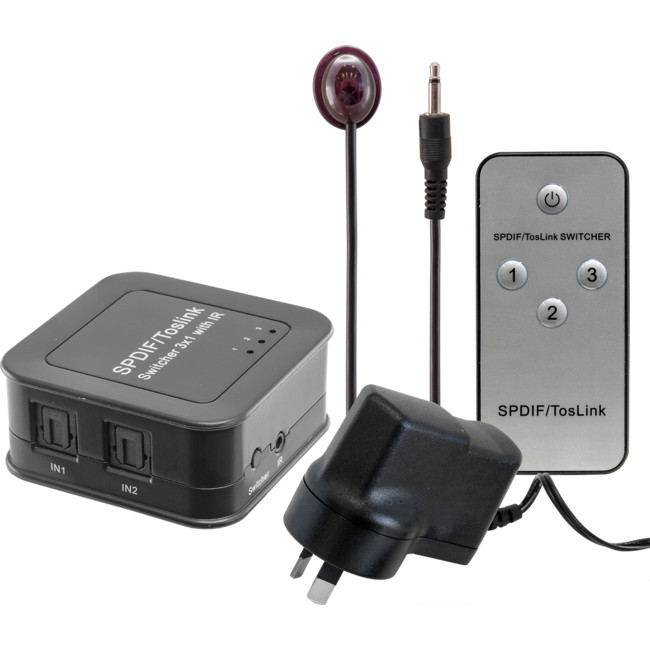

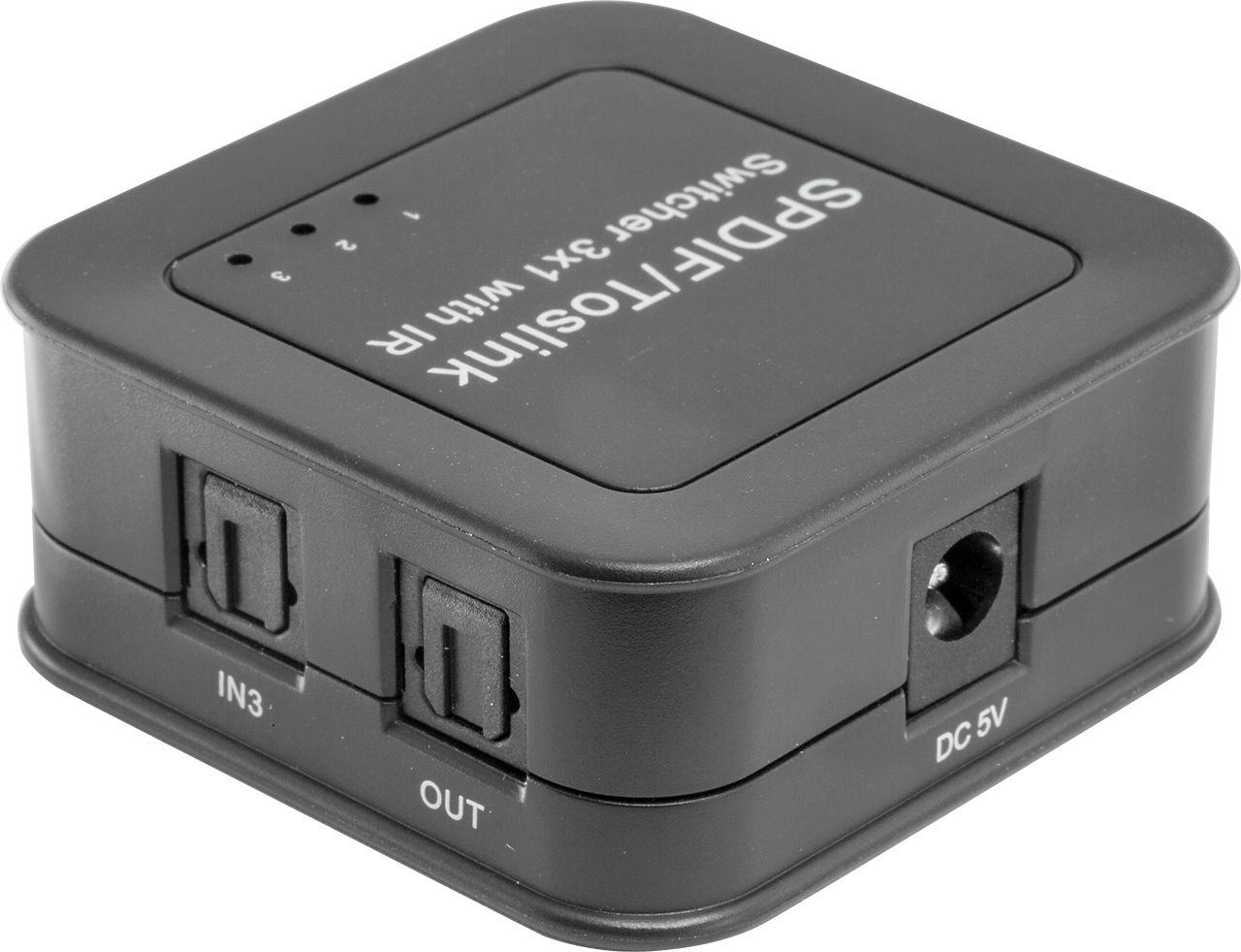

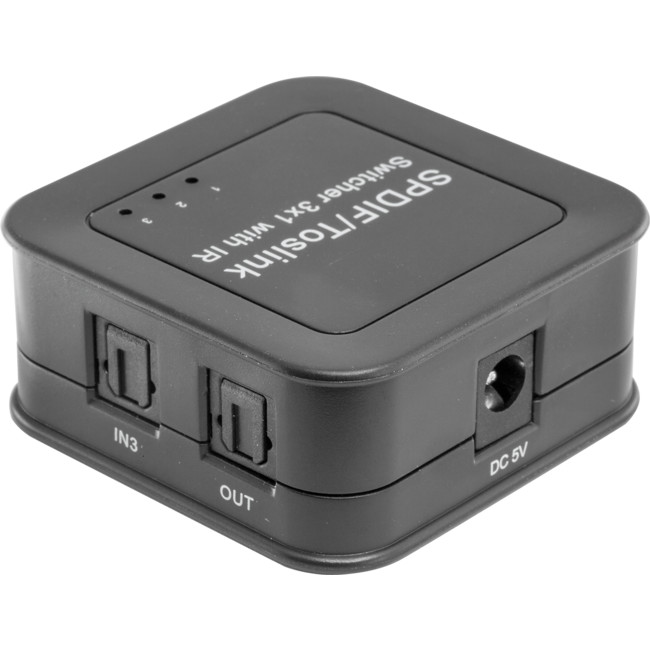

3-input, 1-output Powered TOSLINK Switch with Remote Control. This Powered TOSLINK Switch is one of the most convenient ways to deliver perfect audio around your home theatre. Unfortunately, not all AV receivers and amplifiersat the home theatre are able to accept multiple optical inputs. When you’re stuck with too many devices and not enough sockets, it’s time to bring in a switch. This 3 x 1 optical switch can connect up to three inputs from source devices such as Blu-Ray players, personal computers and gameconsoles, then send them through to your TV or sound system.

Features

  • Switch between three input optical fibre channels
  • Audio format support: LPCM2.0 / DTS / Dolby – AC3
  • Support signal retiming
  • Signal loss of optical fibre cable less than 0.2dB/​m, output distance is up to 40m

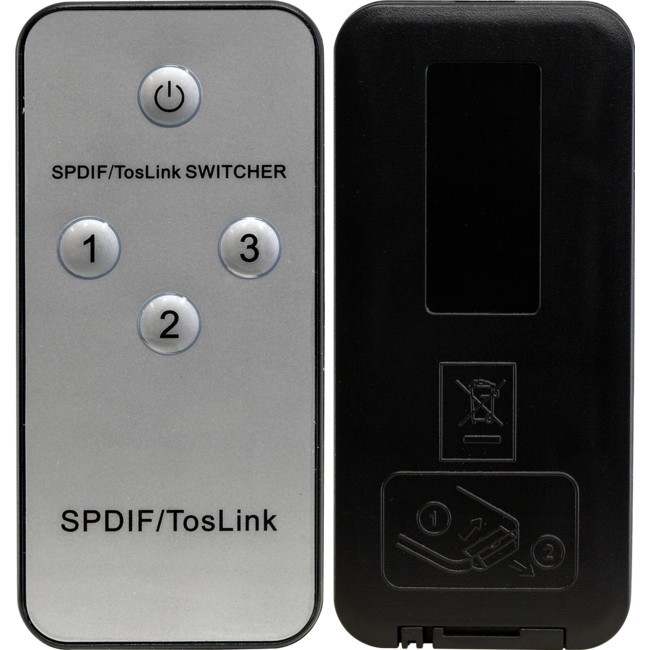

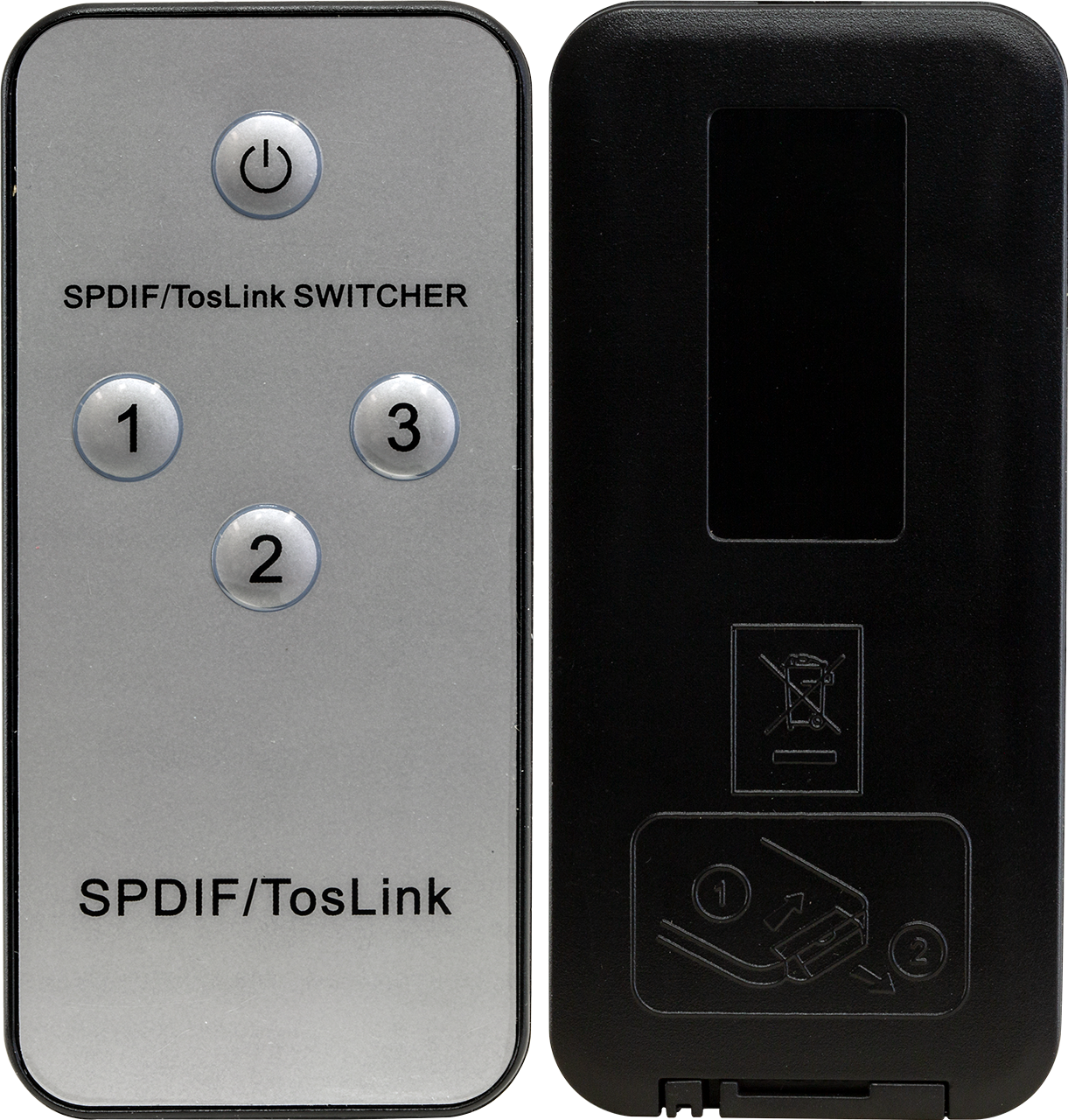

  • The input control can etither by remote or directly press the button
  • Support last time working state memory when power off
  • Over-voltage protection
  • LED status indication
  • No loss of image and sound quality
  • Easy to install

Specifications

Support audio format LPCM2.0/​DTS/​Dolby-AC3
Max baud rate 16Mbps
Output cable distance ≤40m (Use the optical fibre cable loss less than 0.2Db / m)
Peak wavelength 650nm
Power Supply DC5V / 500mA (included)
