Features
Features
-
Audio Return Channel function
- Toslink and Coaxial audio output
- 3D mandatory format supported
- Supports digital coaxial+optical audio output for non-HDMI sound system

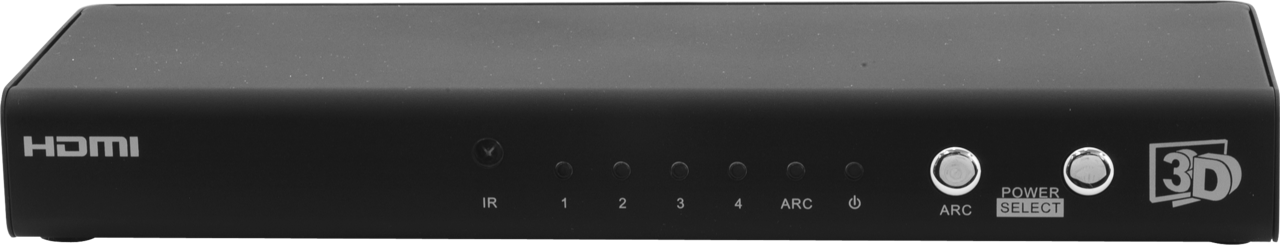

- Expand 4 HDMI sources to your HDTV
- Supports 1080P/12-bit deep colour HDTV
- Supports pixel clock rate up to 225MHz
- HDCP compliant
- DTS-HD, Dolby TrueHD loss less compressed digital audio compliant
- Gold plated connectors
- IR remote control
Specifications
-

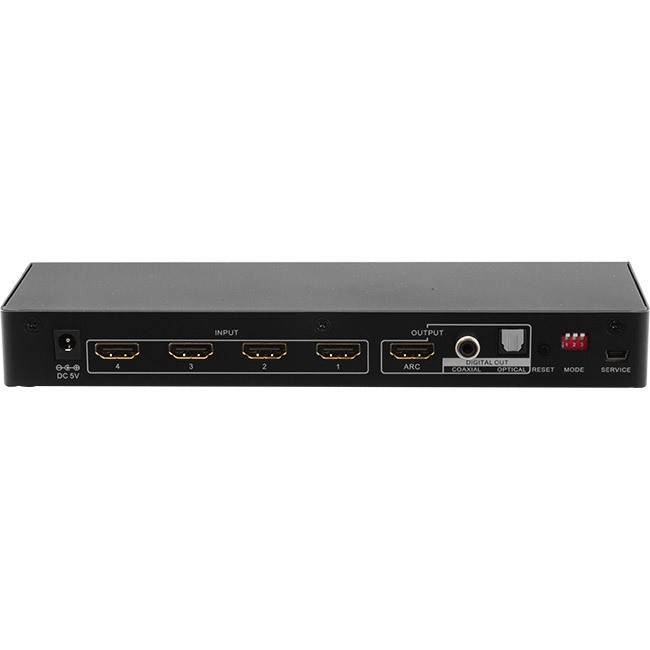

Input ports
- HDMI Receiver (Type A 19-pin female)
-
Output port
- Port 1 HDMI Transmitter (Type A 19-pin female)
- Operation pixel frequency range: 25MHz – 225MHz
- Single link range: 1080P Max
- Toggle button manual select/Remote control
- Power Supply: DC input 5V / 2A Adapter (regulated)
Supported Formats
Frame Packing
- 1920x1080P@23.98/24Hz
- 1280x720P@59.94/60Hz
- 1280x720P@50Hz
- 1920x1080i@ 59.94/60Hz
- 1920x1080i@ 50Hz
- 1920x1080P @ 23.98/24Hz
- 1280x720P @ 59.94/60Hz
- 1280x720P@ 50Hz
