HDMI3SM 3-WAY MINI HDMI SELECTOR


Switch between three HDMI Inputs with IR Remote Control without the need for a power supply.

By adding a power supply (not included), signal can be boosted for longer cable lengths. The product has been tested without a power supply to a total distance of 30m. Ifhigher loss HDMI leads or larger distances are required, we recommend purchasing a 5V / 2A power supply such as the DOSS SM520.

Features

  • Connects up to three HDMI sources to one HDTV display device
  • Maintains 480p, 720p, 1080i and 1080p video formats
  • Supports 3D Formats
  • Maintains highest HDMI single link video resolution and digital audio signal
  • Support HDCP compliant devices
  • Both HDMI-HDMI and DVI-HDMI cables can be used to connect the inputs and switcher output

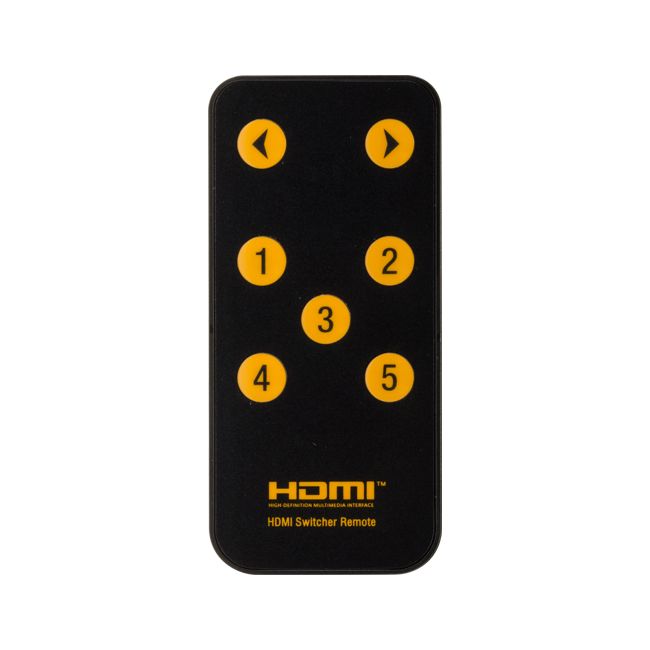

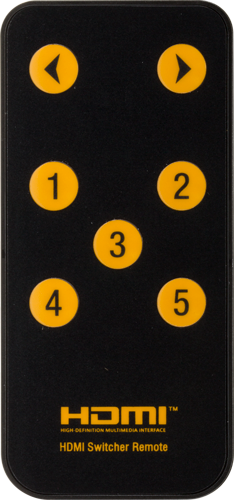

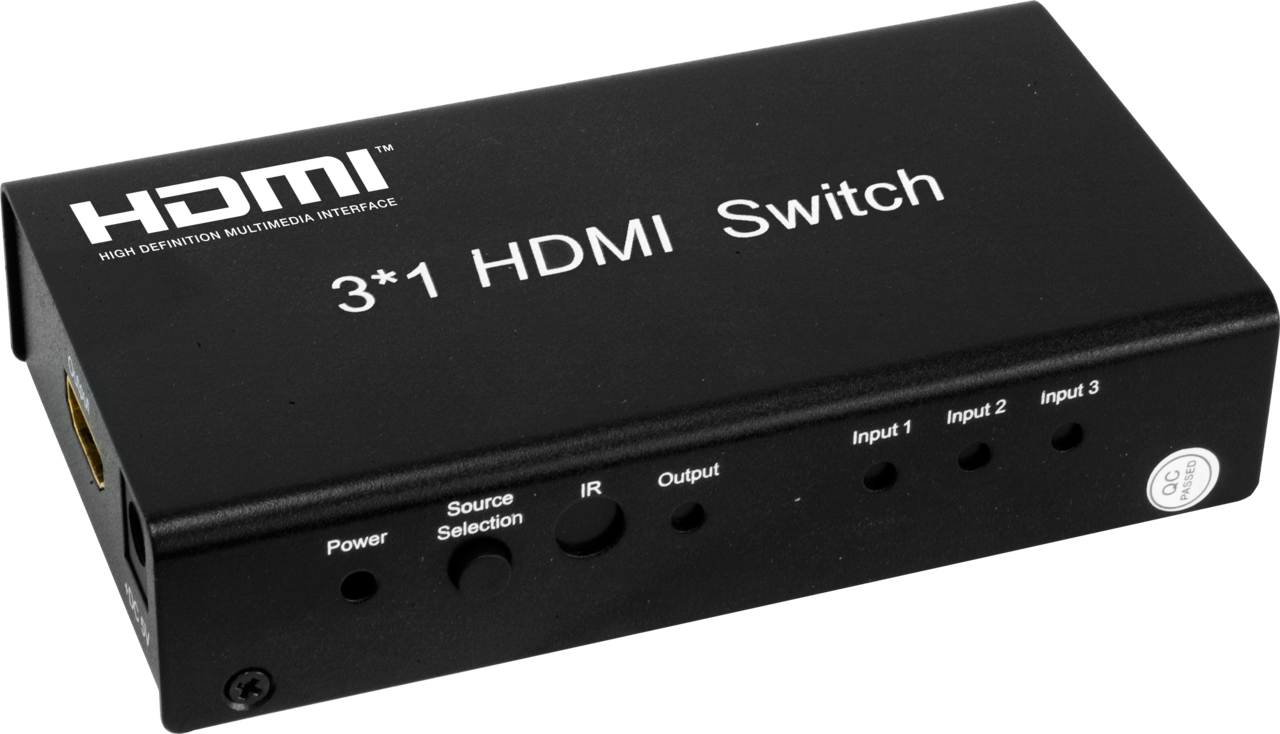

  • Inputs can be selected from either the IR remote controller (included) or through the front panel "INPUT SELECT" button

Specifications

#rpg_table { border-collapse:collapse; width:100%; max-width:500px;} #rpg_table td { padding:5px; } #rpg_table td { text-align:left; vertical-align:top; width:150px; border-top: solid 1px #cccccc; border-bottom: solid 1px #cccccc; } #rpg_table td:first-child { text-align: left} #rpg_table tr:first-child td { }
HDMI Support HDMI 1.3 / HDCP 1.2
3D / 1080p24fs / 1080p / 1080i / 720p / 576p / 576i / 480p / 480i
Colour Support xv-YCC/​Deep Colour 36bit
Connectors Rear:

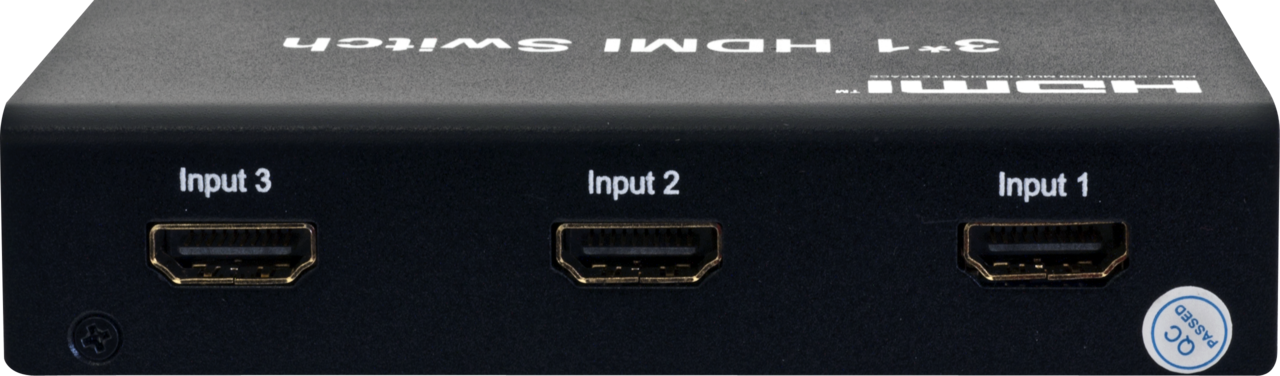

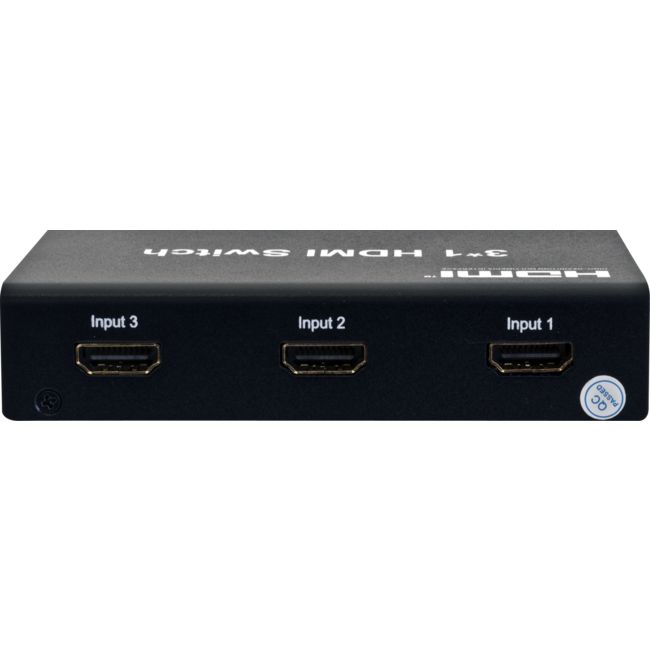

3x HDMI 19p Sockets (In)
Side:
1x HDMI 19p Socket (Out)
1x 1x DC Power Socket
Audio Support 7.1 LPCM / DTS-HD / True-HD / AC3 / DTS / DSD
Input video signal 5.0Volts P-P (TTL) Single Link
Operating temperature range -15 to +55°C (-41 to +95°F)
Operating humidity range: 5% to 90%RH (No Condensation)
Dimensions (L×W×H) 115 × 62 × 25mm
Mass 0.22 Kg
