Features

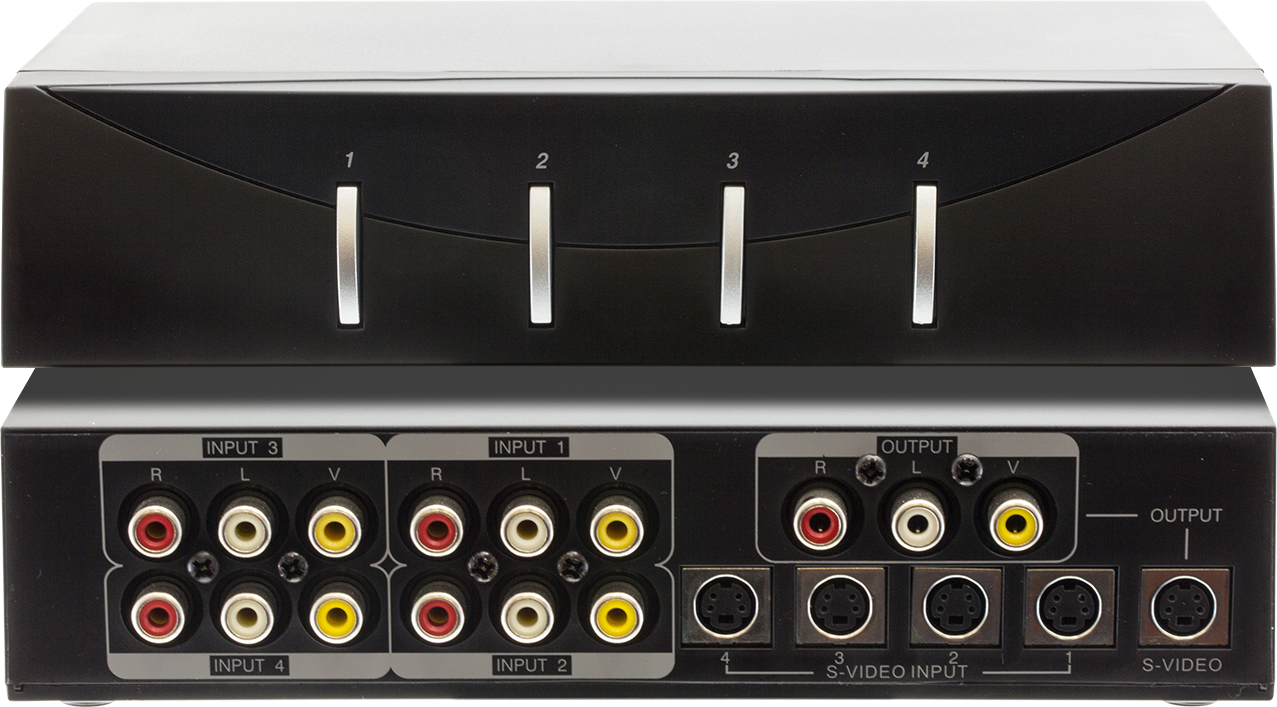

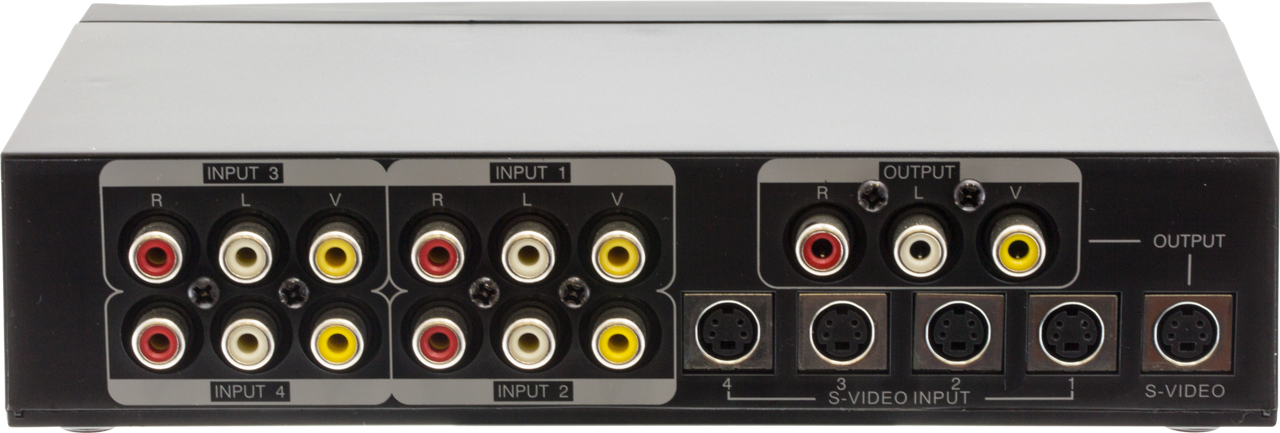

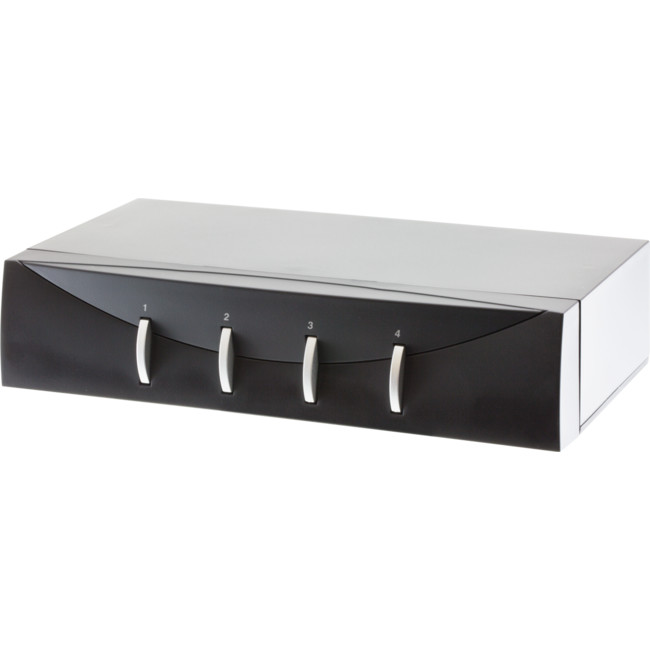

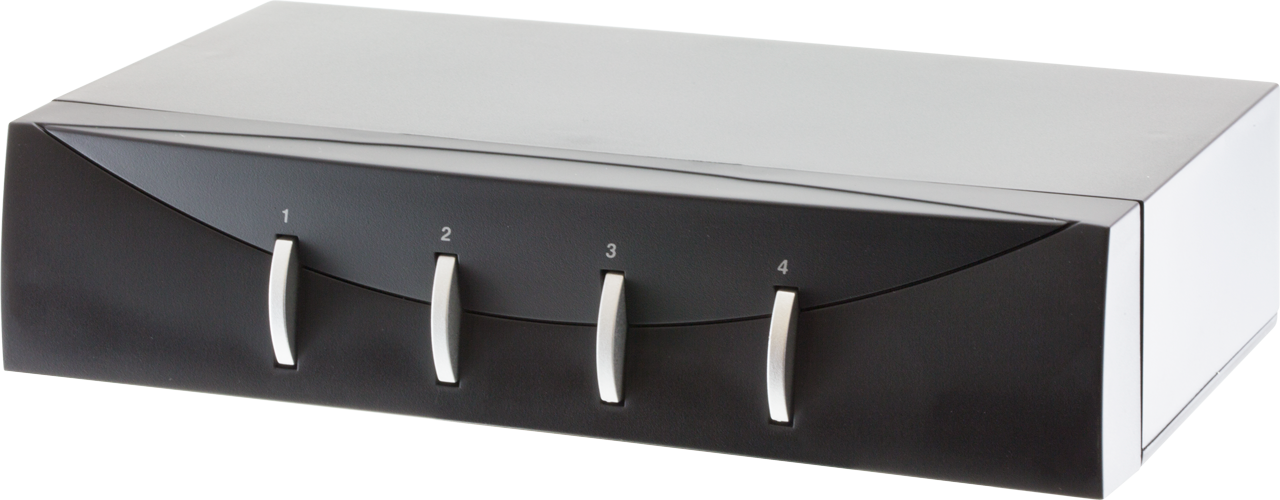

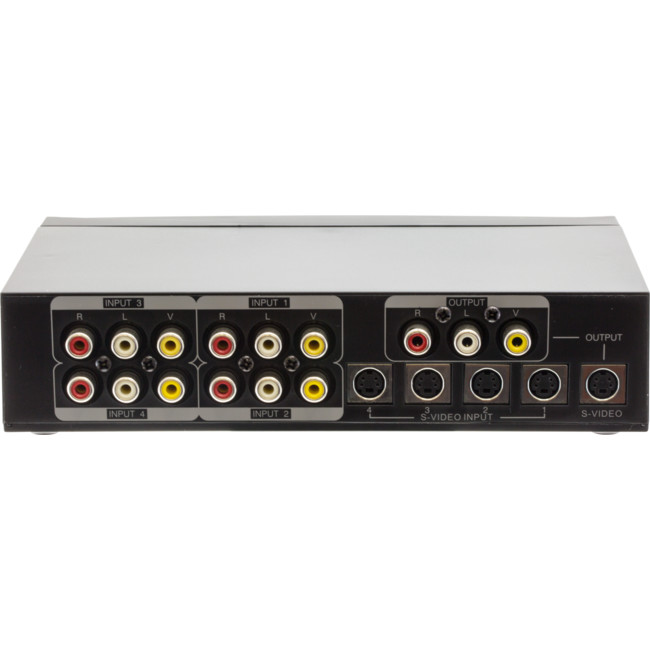

This 4 way AV svideo selector connects up to four AV devices such as DVD players, VCRs or gaming consoles with a single output to your TV and switch between them as required. Inputs can be either composite or S-video.
Specifications
Audio:
| Frequency range | 10Hz-20K Hz |
| Insertion Loss | 0.5 dB limited |
| Channel Separation (@1K Hz) |
50 dB normal 45dB limited |
| Crosstalk Between Function (@1K Hz) |
60dB normal 55dB limited |
Note:
- The generator impedance should be 600 ohm.
- Signal output reading is taken across a 47K ohm load.
-
Product Input 4.7K ohm terminated. (on testing channel
separation and crosstalk)
Video:
| Frequency Range | 0.3M-6M Hz |
| Insertion Loss | 1 dB limited |
| Isolation Loss | 35 dB limited |
Chrominance:
| Frequency Range | 4.43M±0.5M Hz |
| Insertion Loss | 1dB limited. |
| Isolation Loss | 35dB limited. |
Luminance:
| Frequency Range | 0.3M-1M Hz |
| Insertion Lloss | 1dB limited. |
| Isolation Loss | 35dB limited. |
Composite/S-Video signal conversion:
| Video Input | 1V P-P |
| Luminance Output | 0.9V P-P |
| Chrominance Output | 0.286V P-P |
Note:
- The generator impedance should be 75 ohm.
- Input 75 ohm terminated.
