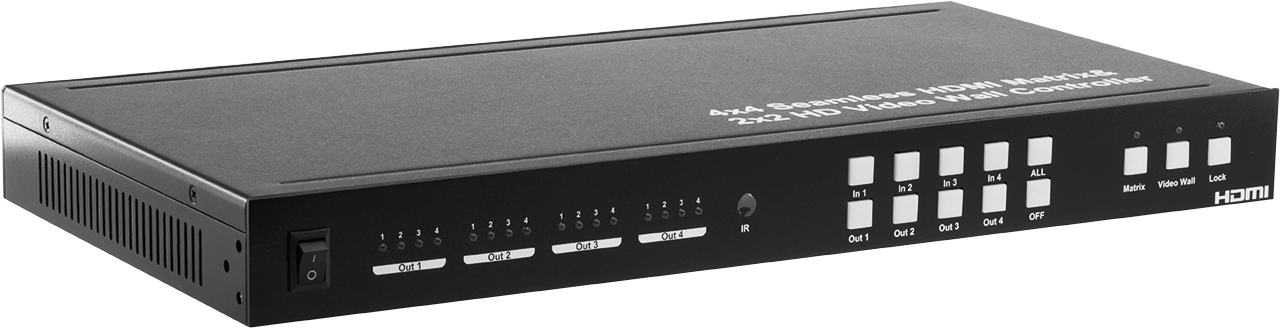

HDMIMX4422 4X4 4-IN 4-OUT HDMI MATRIX

HDMIMX4422 offers solutions for digital entertainment center, HDTV retail and show site, HDTV, STB, DVD and projector factory, noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

Features

  • Any one of the 4 sources to any one of the 4 displays
  • Seamless switching ensures no switching delay and pictures loss during transitions, the switching speed is less than 1 second.
  • Support 2×2 video wall mode.
  • Any one of the four outputs can be turned off independently.
  • Support high definiton resolutions, including: 1080p@60Hz@36 b/​pixels, 1080i, 720p and other standard video formats.

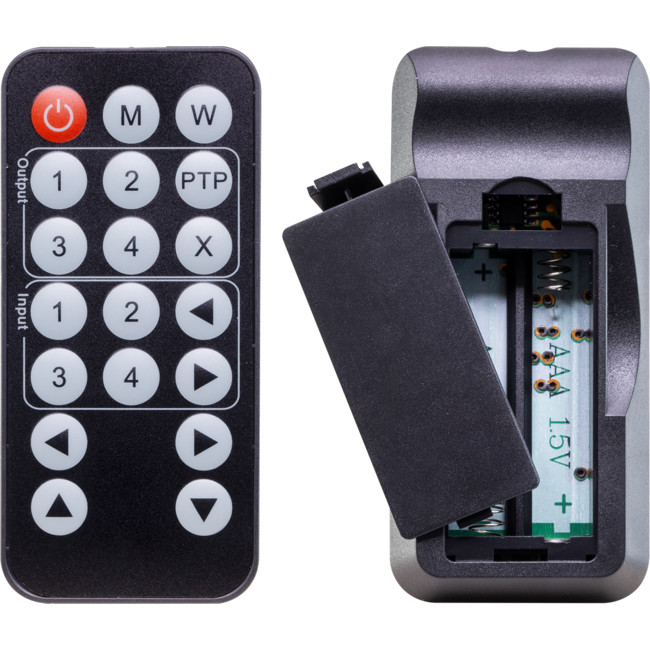

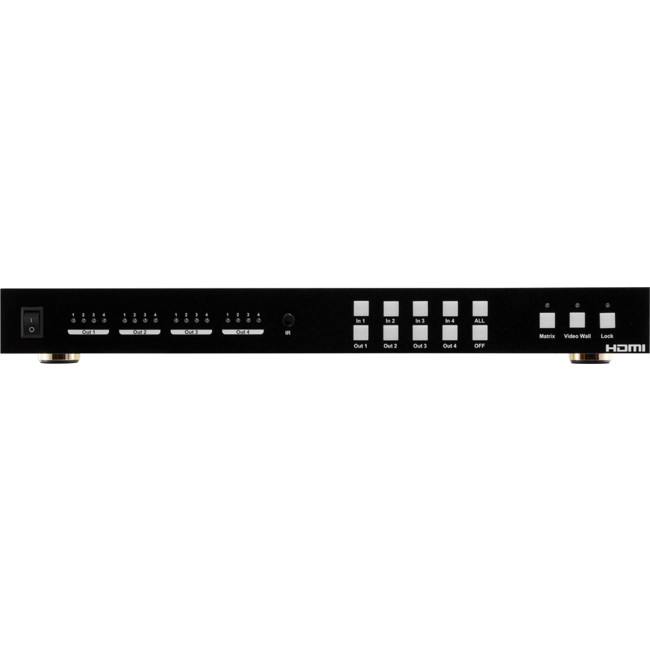

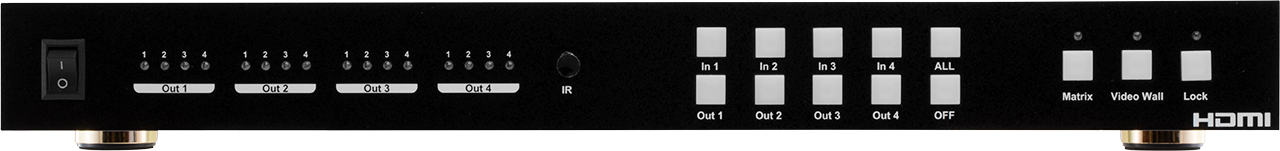

  • With panel button, Remote Control, RS232 Control, IP Control to select the source.
  • 1U rack design, easy installment.
  • DC 12V 3A power supply (Included)

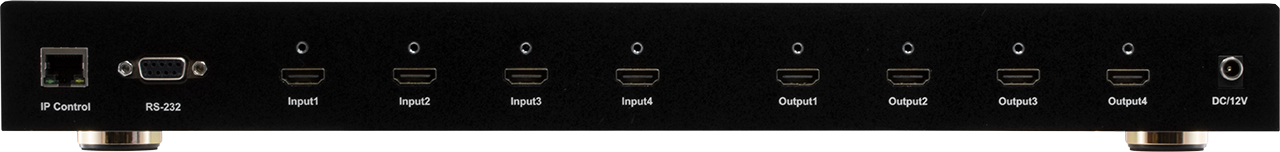

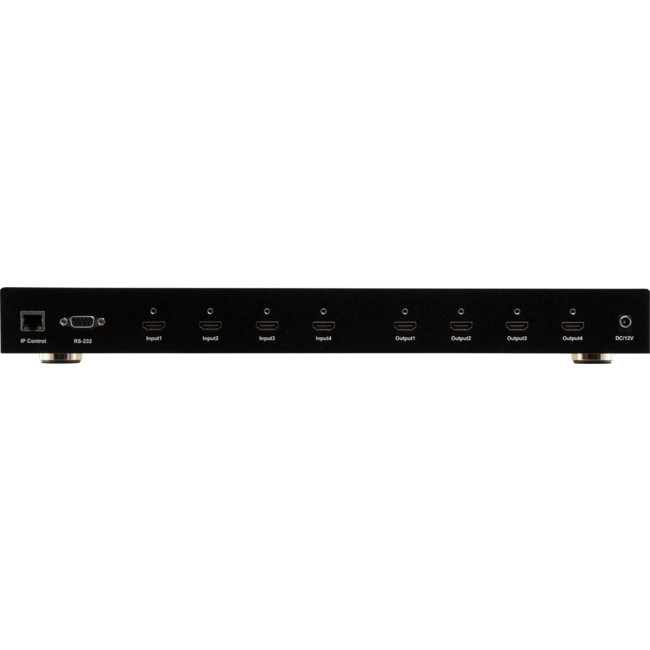

Wiring Diagram

Specifications

    Operating Temperature Range 0 to +35°C
    Operating Humidity Range 5 to 90 % RH (no condensation)
    Input Video Signal 0.5-1.0 volts p-p
    Input DDC Signal 5 volts p-p (TTL)
    Video Format Supported DTV/​HDTV: 1080P/​1080i/​720P / 576P/​480P/​576i/​480i
    Audio Format Supported LPCM
    Input ports 4xHDMI (standard Type A connector)
    Output ports 4xHDMI (standard Type A connector)
    Matrix mode 4×4 Seamless switching
    Video wall mode 2×2 video wall
    Power consumption 24watts (Maximun)
    Dimension (mm) L438*W220*H44 mm
    Weight 2800g
