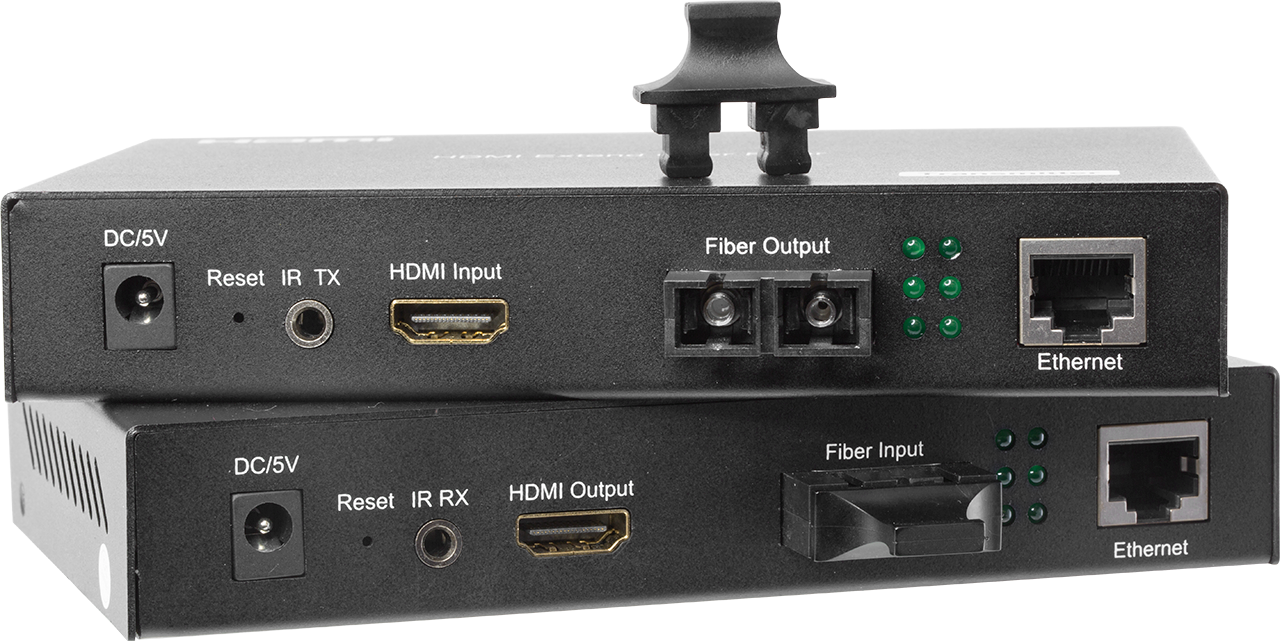

HDMIFIB HDMI OVER FIBRE EXTENDER

Features

The HDMIFIB is a long-range HDMI video extender kit that uses SC fibre optic cable to extend video/​audio from an HDMI-equipped device to a remote display up to 20km away. The extender supports full High-Definition video (1920×1080/​1080p) and includes both the transmitter and receiver, for acomplete ready-to-use digital signage solution.

Not only is this an incredibly long range solution that can extend an HDMI signal across or between buildings, but because fibre optics transmit data using light rather than copper, it will not cause or be effected by electromagnetic Interference (EMI).

For convenient, time-saving control of the media source, the HDMI extender also offers Infrared (IR) extension, whichenables you to control the HDMI audio-video source from either end of the connection.

  • Extends 1080p HDMI signals up to 20km over a fibre opticcable
  • Provides high-resolution image quality
  • Plug-and-play operation – no programming or setup required
  • Ethernet Pass-Through
  • Optical fibre use rules out any RF interference

Specifications

Operating Temperature -5 to +35°C
Storage Temperature -10°C~70°C
Operating Humidity 10 to 90%RH (No Condensation)
Storage Humidity 5 to 90%RH (No Condensation)
Fibre Module 1310nm single mode, double fibre
(Transmitter + Receiver)
Ethernet Port 100M
Fibre Connector SC Duplex Connector
Transmission Distance 1080P 36bit @ 60Hz 20km (Maximum)
Power consumption TX:8watts; RX:8watts (Maximum)
IR wavelength & frequency Wavelength:940nm, frequency 38kHz
Dimension (L×W×H) TX: L154 x W99.5 x H27mm; RX: L154 x W99.5 x H27mm
Net Weight Transmitter: 410g, Receiver: 410g
LED Indicators Power, Link and Speed

Note: Specifications are subject to change without notice. Specs and dimensions are approximate.

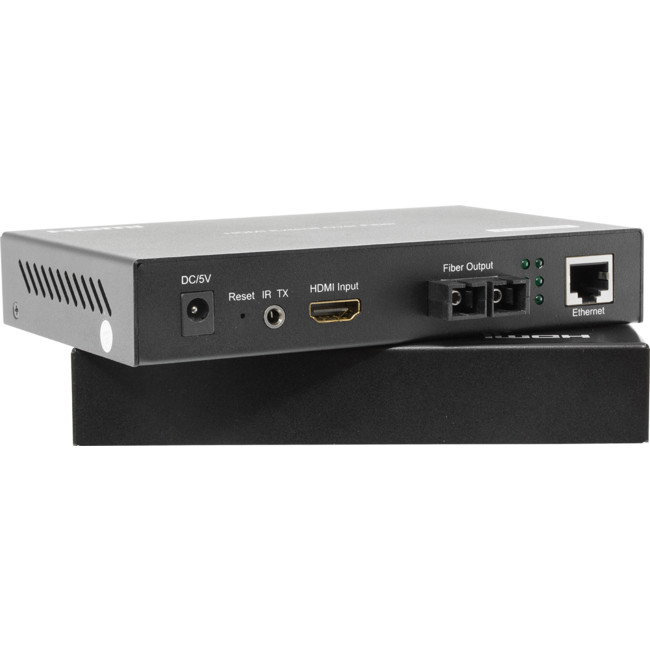

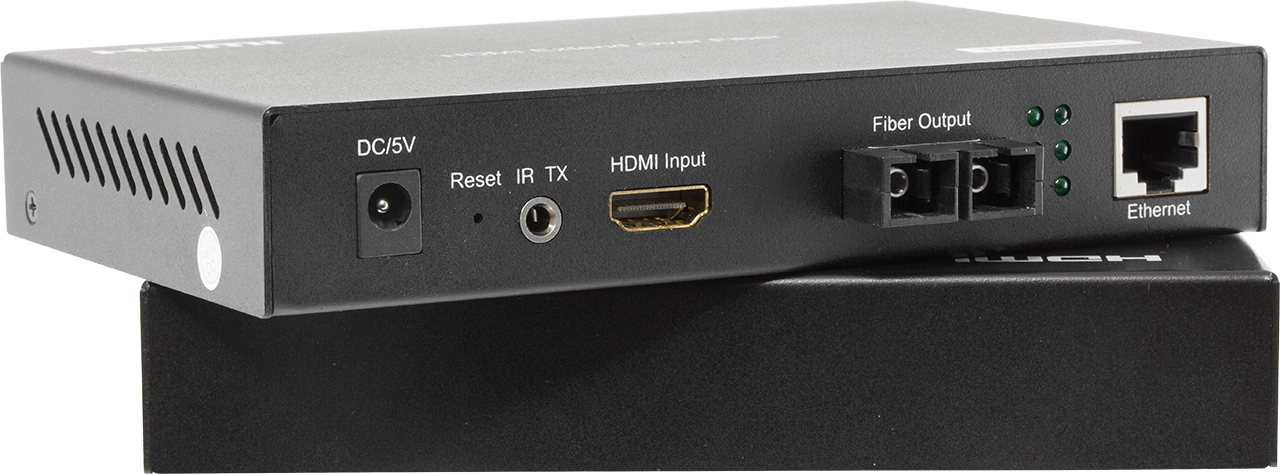

Interface
  • Power input port
  • Reset button
  • IR-TX port
  • HDMI input
  • SC port
  • Power, Link and Speed
  • Ethernet port (100M)
Package contents

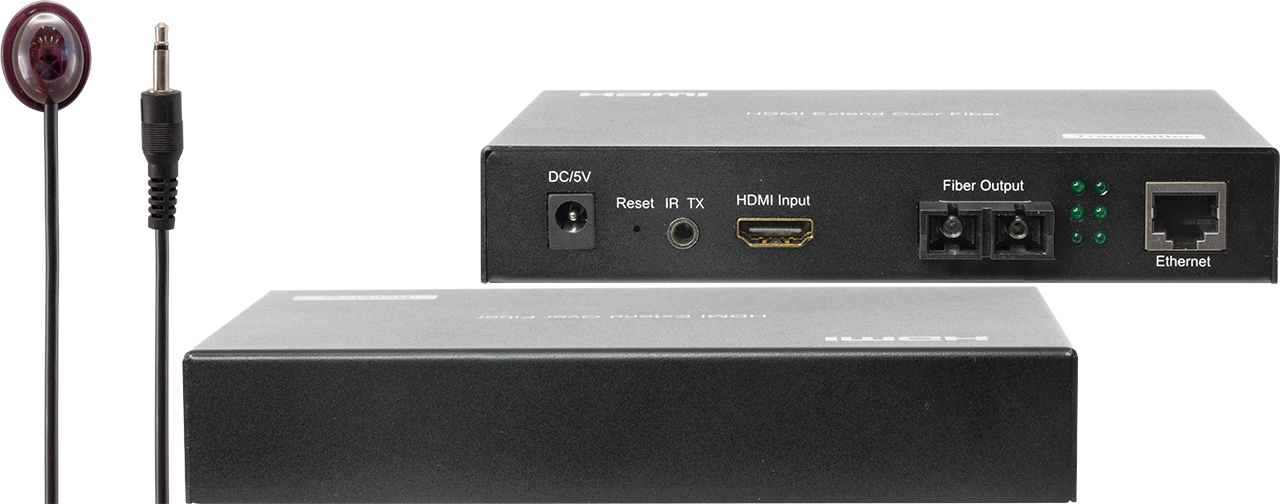

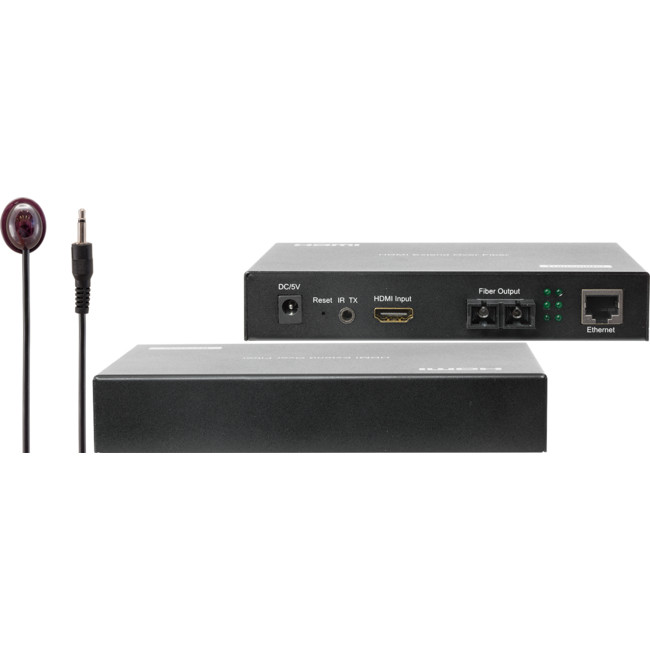

  • Main Unit. Transmitter & Receiver HDMI Extender
  • Power adapter DC 5V 2A x 2 Pcs
  • IR-TX cable & IR-RX cable
  • Operating Instructions
Simplediagram
