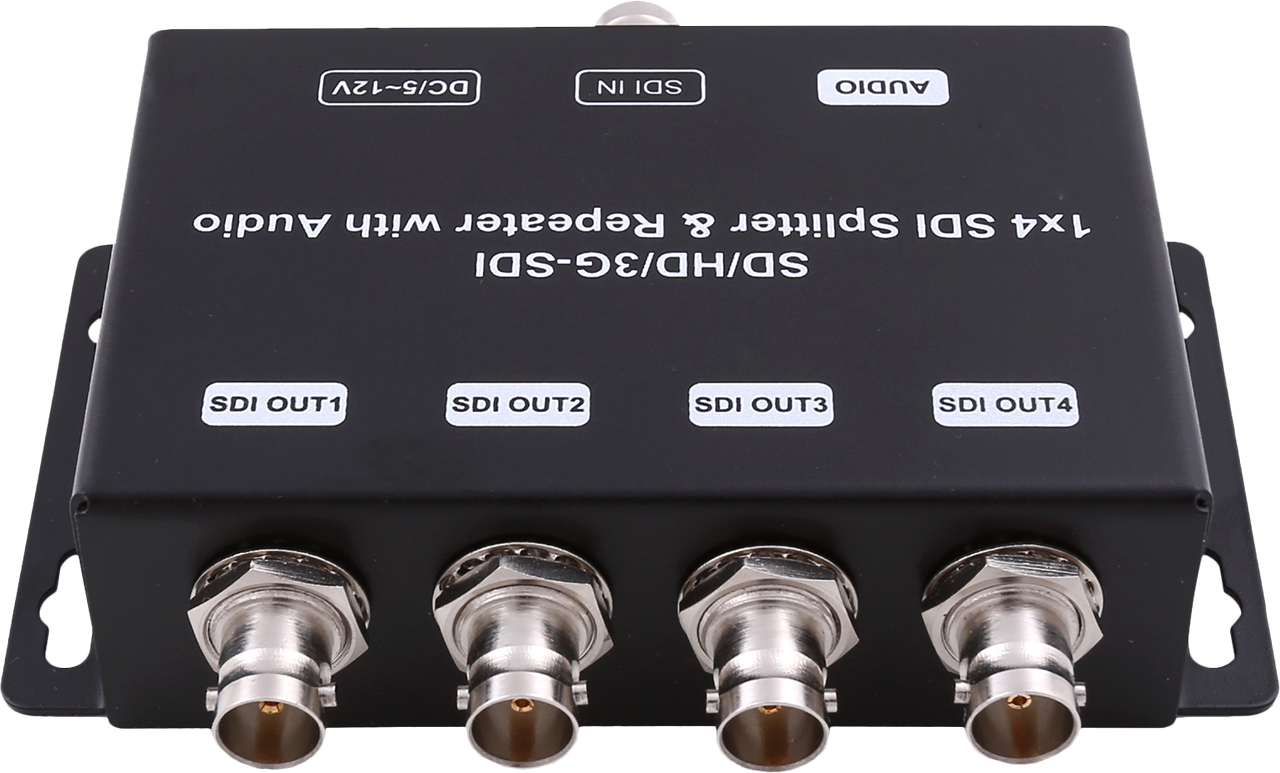

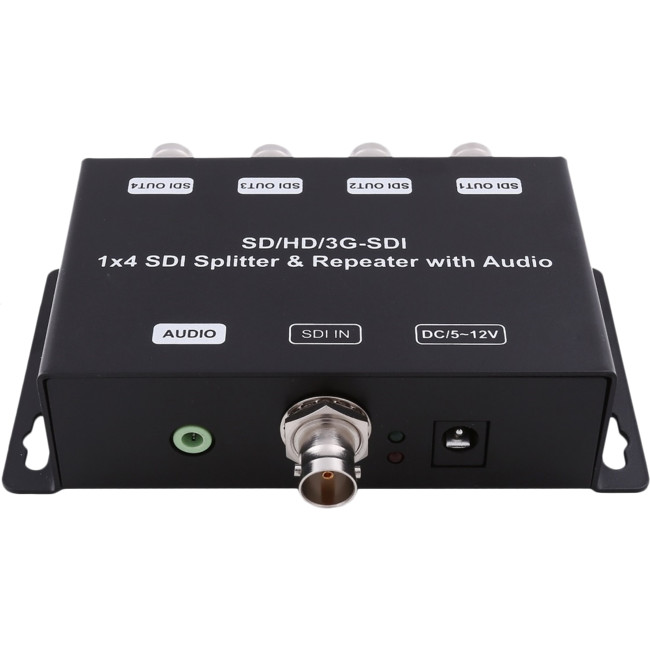

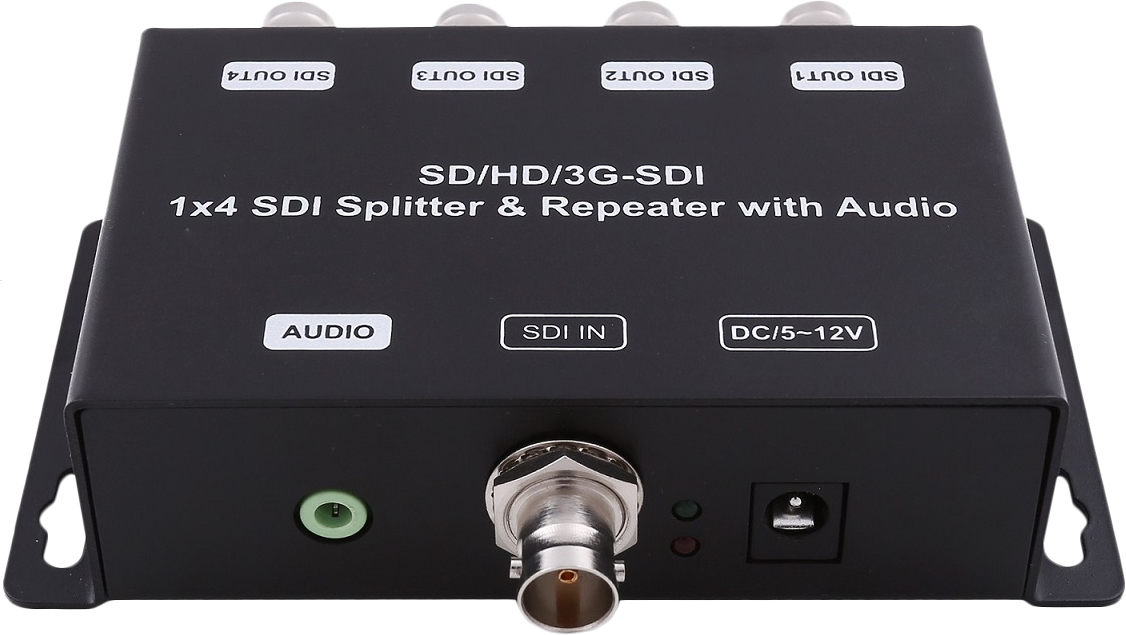

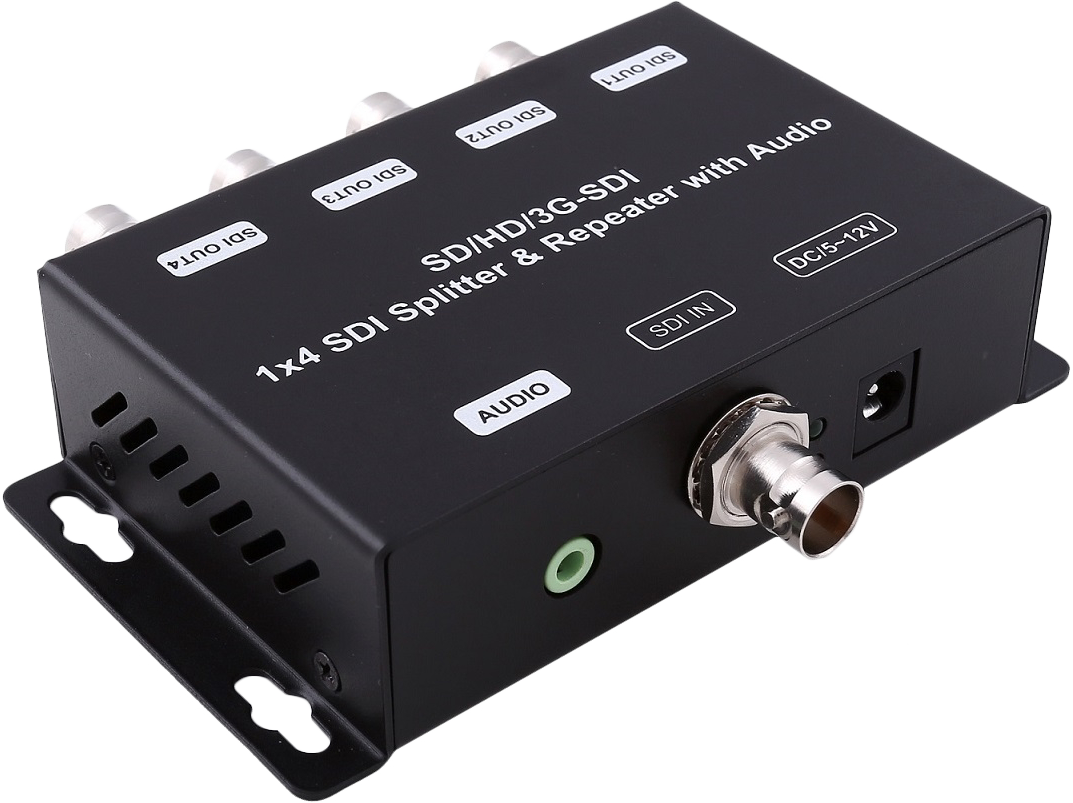

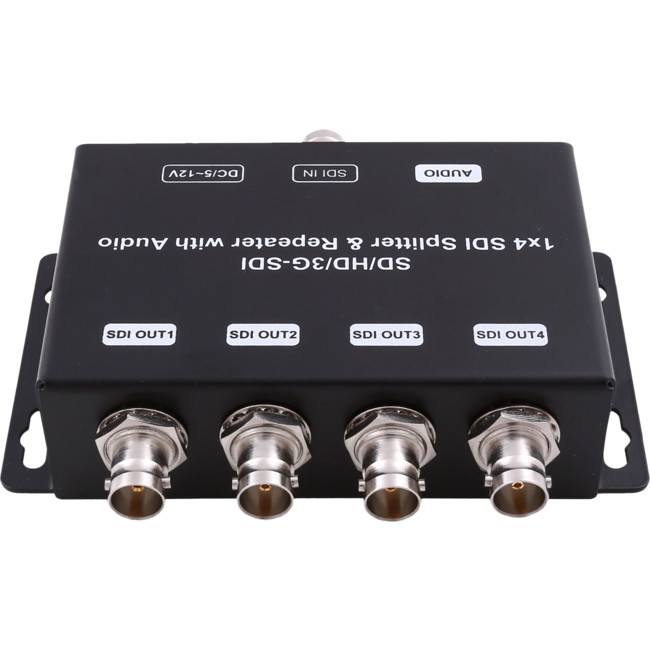

Features
- Distributes 1 SDI input to 4 SDI outputs simultaneously
- With Audio extraction (3.5mm stereo audio output)
- Single unit can transmit up to 120m (Beldon 1694A)
- Re-clocking function capability—unlimited repeater connection
- Support SDI Standard: SD-SDI, HD-SDI, 3D-SDI
- Data Rates: 270Mbps (SD-SDI), 1.485Gbps (HD-SDI), 2.97Gbps (3G-SDI)
- Signal Type: SMPTE 292M, SMPTE 259M, SMPTE 424M
- DC 5V 1A (included, Power consumption less than 2W)
- With mounting ears
Wiring diagram
Specifications
| Re-clocking Function | Yes |
| SDI Standards | SD-SDI, HD-SDI, 3G-SDI |
| HD/SD-SDI Detection | Auto |
| Supported Protocols |
SMPTE 259M
SMPTE 292M SMPTE 424M |
| Data Rates | 270Mbps (SD-SDI), 1.485Gbps (HD-SDI), 2.97Gbps (3G-SDI) |
| Video Support |
480i@60hz, 720p@50/59.94/60hz, 1080i@50/59.94/60hz,
1080p@23.98/24/25/29.97/30/50/59.94/60hz |
| SDI Signal Type | SMPTE-292M, SMPTE-259M, SMPTE-424M |
| Output Impedance | 75 ohms |
| Cable Equalization |
HD-SDI up to 120m
SD-SDI up to 200m Unlimited repeater connection |
| Audio Sampling rate | 48Khz |
| Impedance | 75 ohms |
| Input | 1x BNC [SDI] |
| Output | 4x BNC [SDI], 3.5mm stereo audio jack |
| Power Adapter | 5V1A DC |
| Power Consumption (Max) | 2W |
| Dimension (LxWxH) | L115xW64xH30mm |
| Operating Temperature | 0°C ~ 40°C |
| Storage Temperature | -20°C ~ 60°C |
| Relative Humidity | 20~90% RH (no condensation) |
| Housing Material | Metal case |
