HDC6WP HDMI OVER CAT5E/6 WALL PLATE

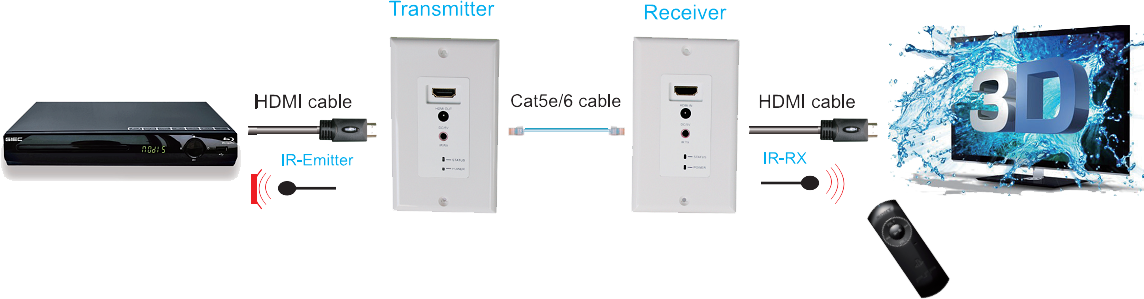

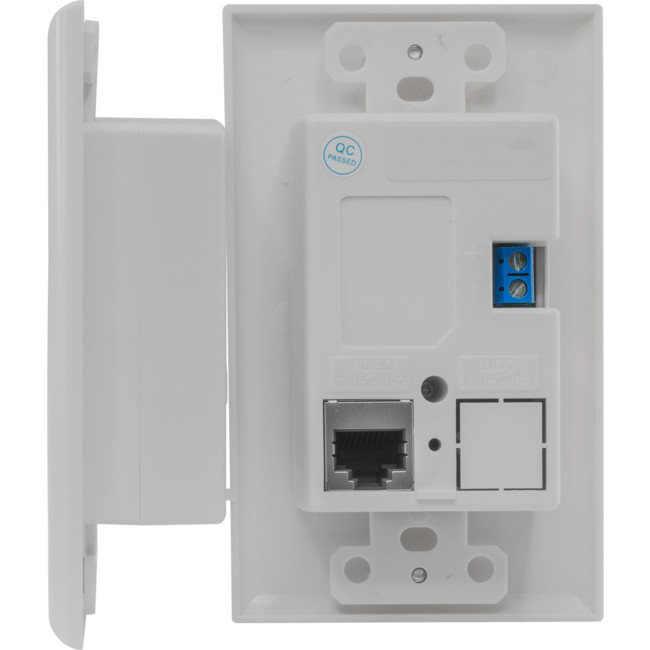

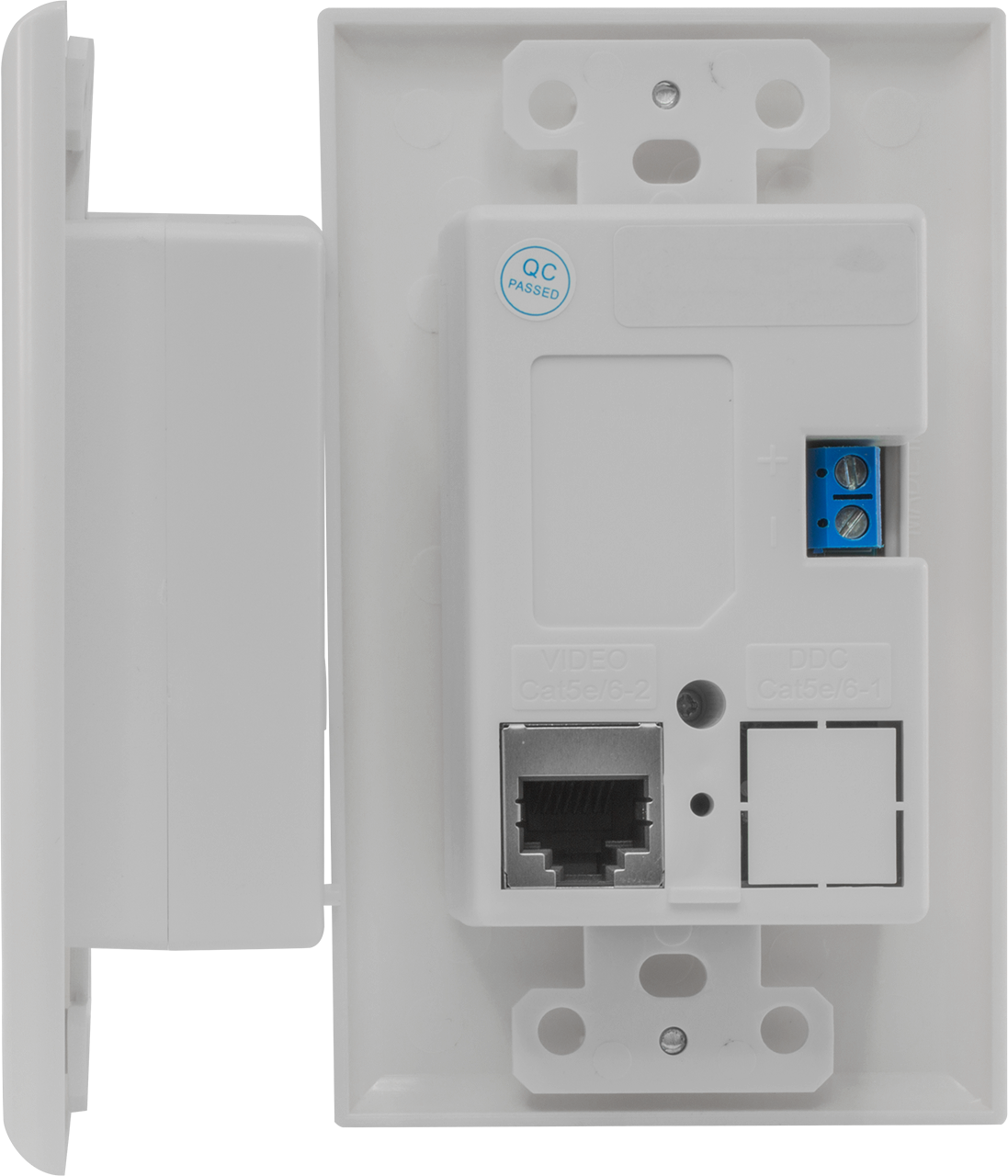

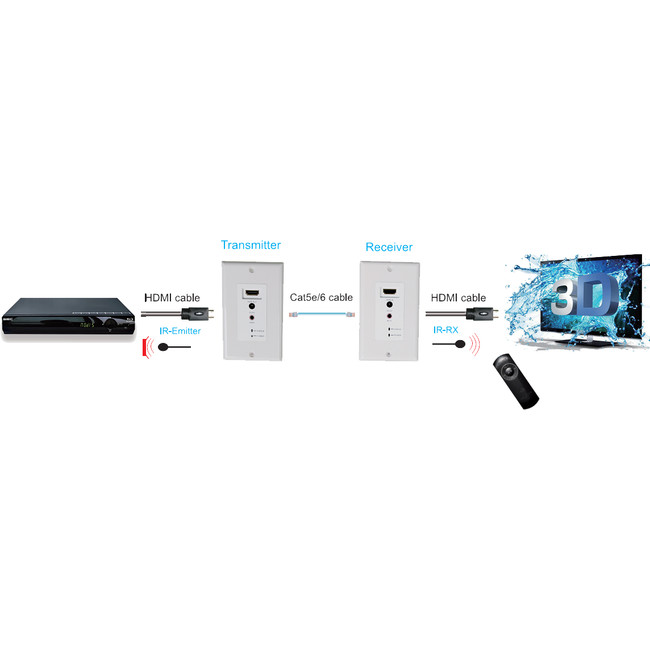

A neat and simple wall plate high definition HDMI extender kit. This kit extends your high definition AV source from your Blu-ray DVD Players, PS3 and XBOX etc. up to a maximum 60m via CAT5E/​6 cables through the wall cavities. Supports full 1080P high definition of up to 60m. Integrates an infra-red control extender for full controllability from the receiving end. RJ45 connections on the rear of both units makes it for easy connection.

Not compatible with Foxtel iQ2/iQ3

Features

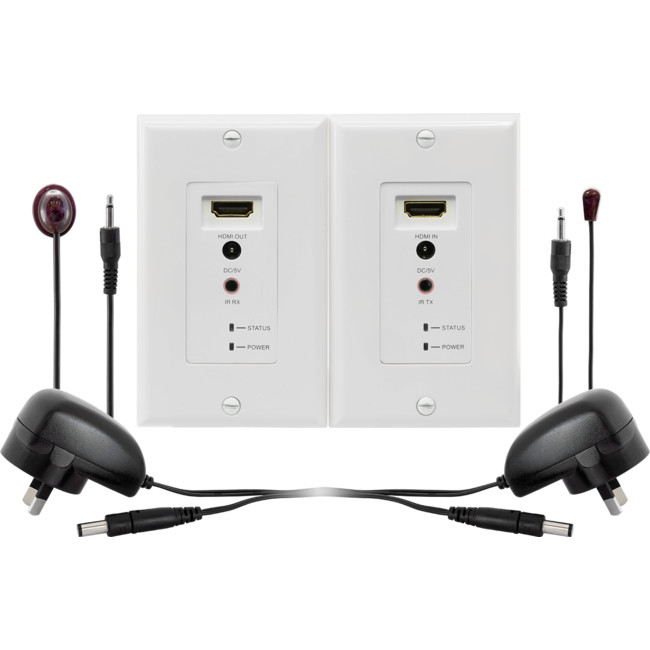

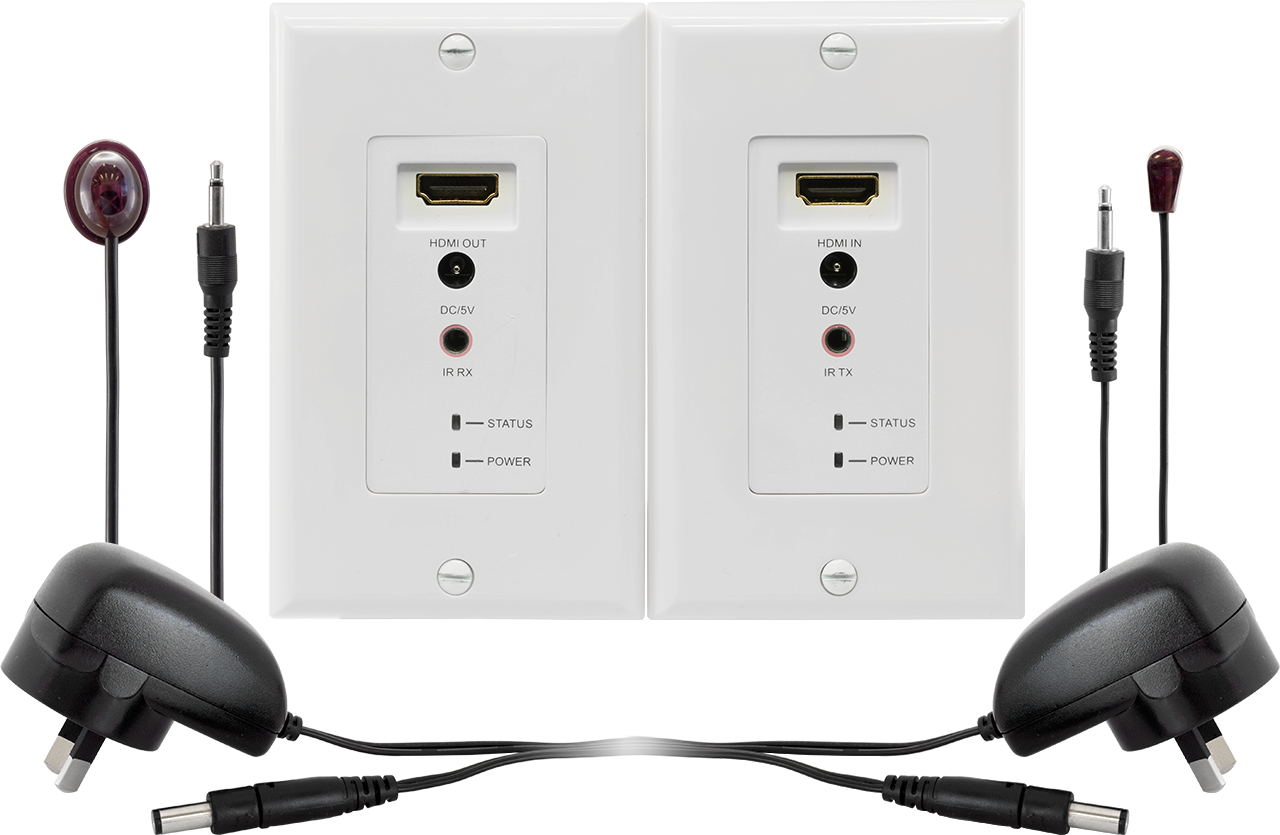

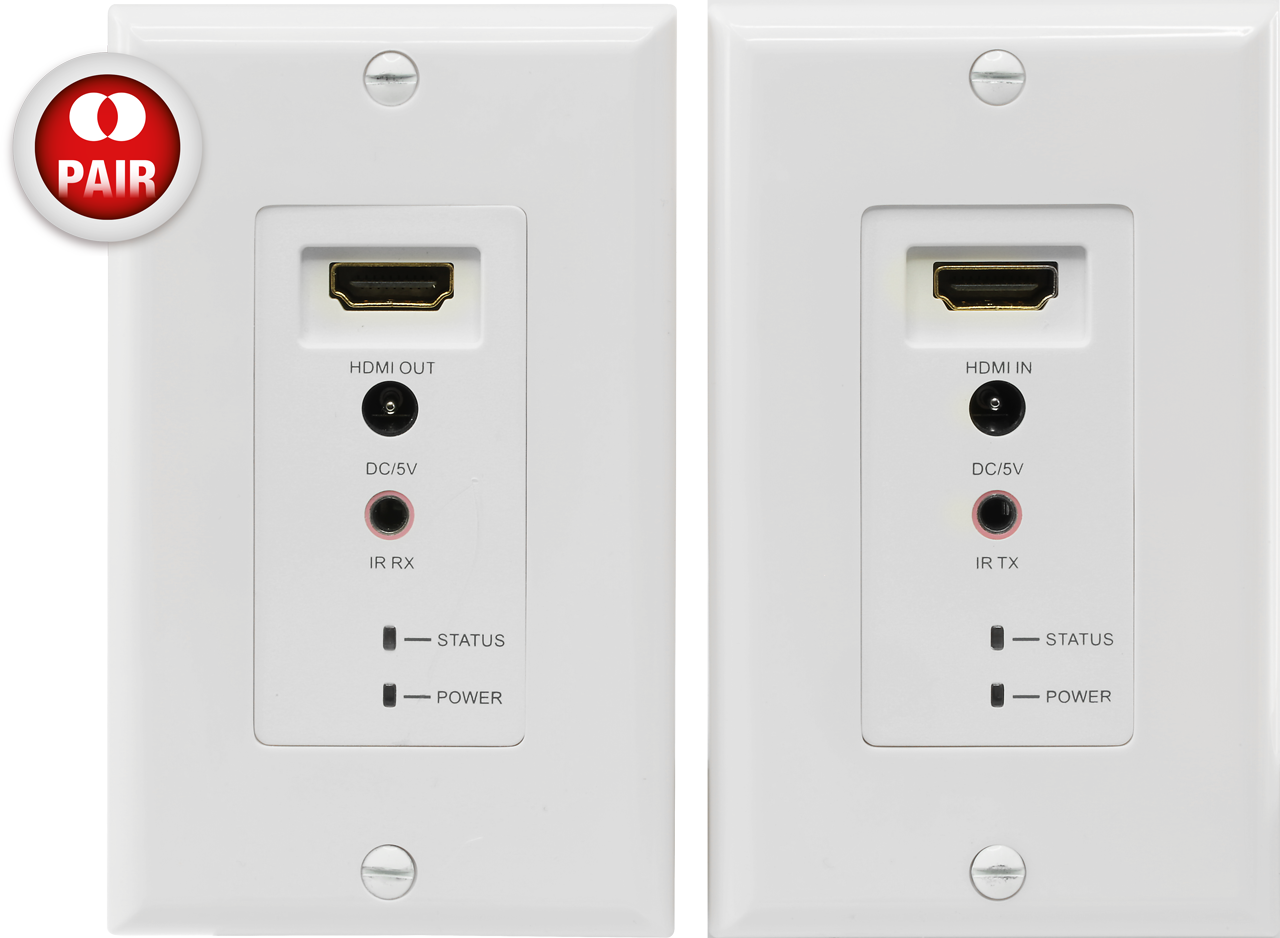

  • Each set includes one transmitter and one receiver
  • Modular design
  • Connect with single Cat5E/​6 cable to reach a longer distance than HDMI cable
  • Transmission distance could be up to 60m with 1080P video format
  • Auto adjustment of feedback, equlization and amplify
  • Up to 2.25Gbits signal rates in support of 1080P display
  • With Infraed control sginal passing through
  • Compatable with 3D format

Specifications

    Operating Temprature Range −5 to +35°C
    Operating Humidity Range 5 to 90% RH (No Condensation)
    Input Video Singal 0.5-1.0 Volts P-P
    Input DDC Signal 5 Volts p-p (TTL)
    Support Video Format DTV/​HDTV: 480i/​576i/​480P/​576P/​720P/​1080i/​1080p/​3D video format
    Video Output HDMI
    Support Audio Format DTS-HD Master Audio, Dolby true-HD etc.
    Transmission Distance
  • 1080P 8-bit 60m (Maximum)
  • over CAT5E/​CAT6/​24AWG/​Solid (recommend to use 23AWG Cat6cable)
  • Power consumption 3watts (Maximum)
    Dimension (LxWxH) 115x70x35mm
    IR wavelength & Frequency Wavelength: 940nm, frequency 38kHz
    Net Weight 260g (Pair)
    Power supply 2 x DC/​5V 1A (included)
