Features
Distribute your AV equipment to multiple TVs through yourhome using RF Coaxial cable! Due to the digital switch-over, many analogue TV channels will be available to utilize, so you can insert your AV source through this modulator feed into your existing home RF distribution network. With IR return function, you can even control your AV device withouthaving to be in the same room or leaving cabinet doors open.The IR signal from your existing remote is modulated throughthe RF distribution network back to modulator where it is re-trasmitted via the adjustable IR emitter.
- RCA Input and Loop-out
-
Channel Adjustment (Up/Down button)
- LED Channel Number display
- PAL Antenna Input/Output
-
IR Return—control your AV equipment with the original remote

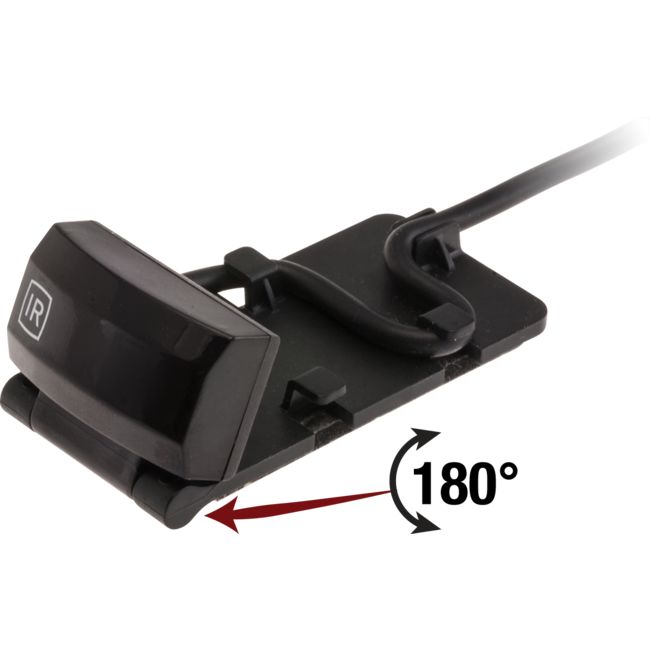

- Adjustable and self-adhesive IR Emitter and Target
- DC power supply included
Package includes

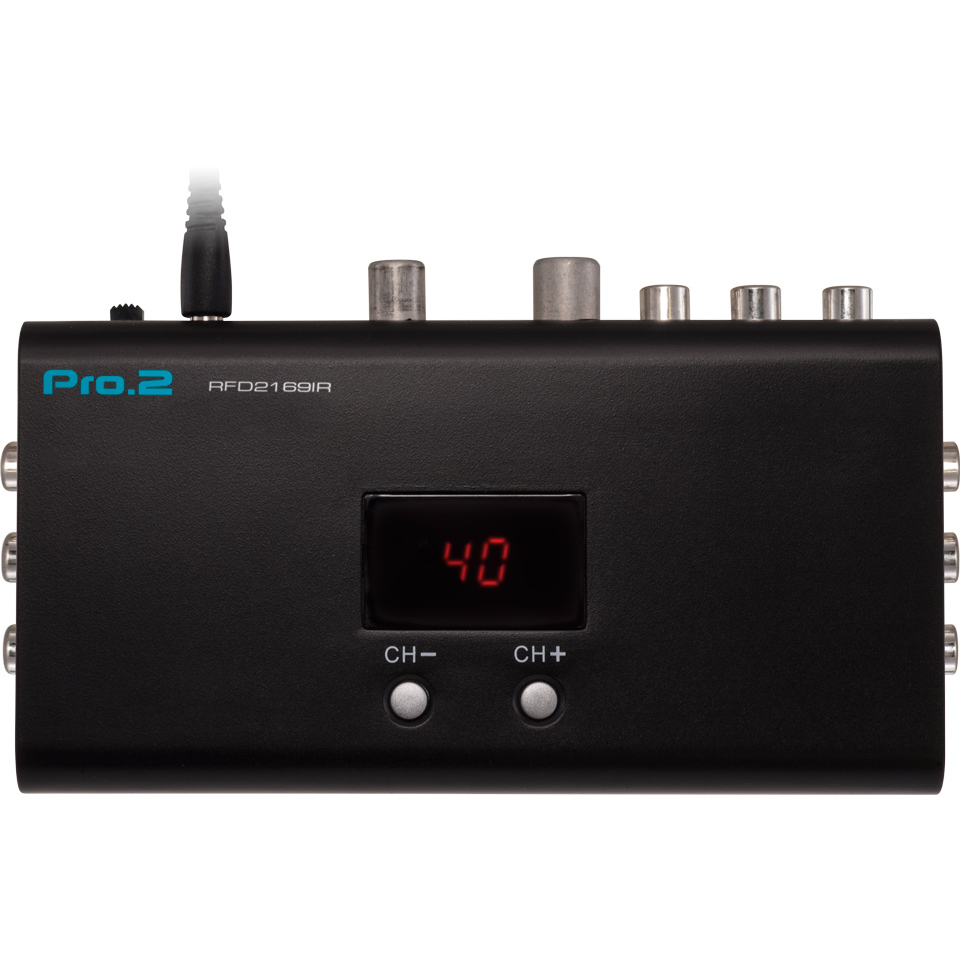

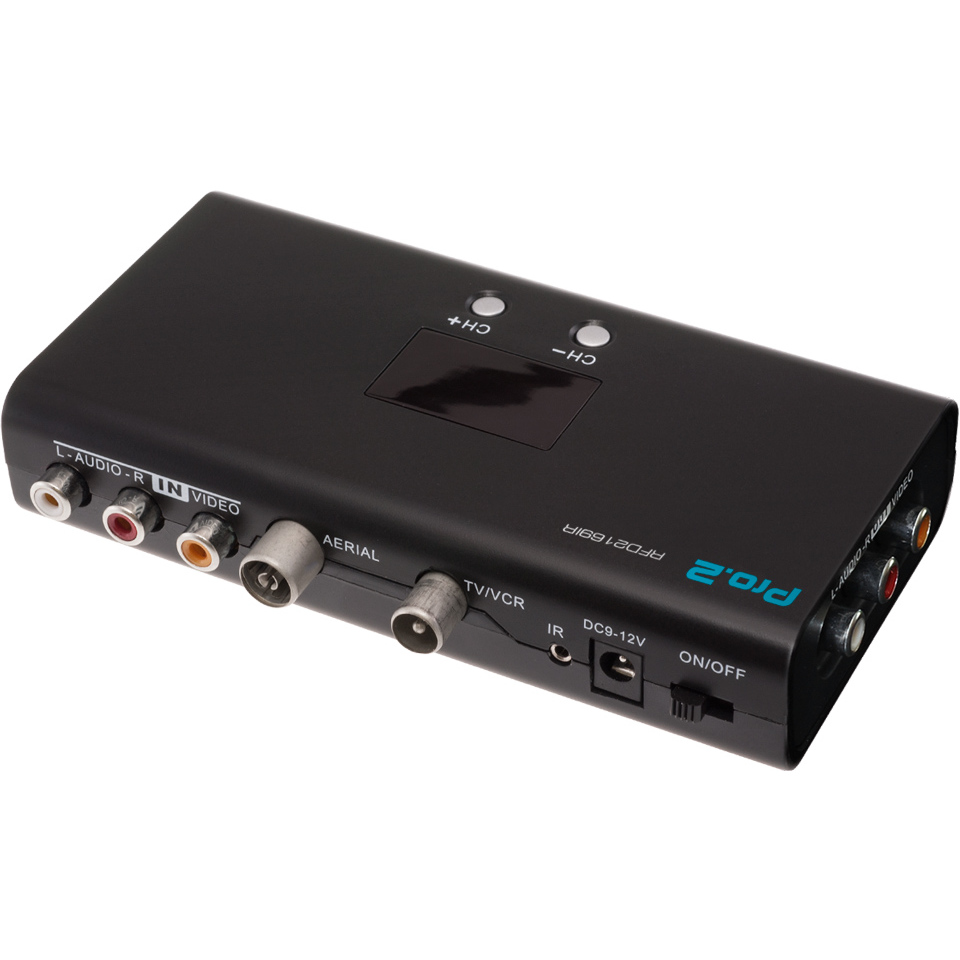

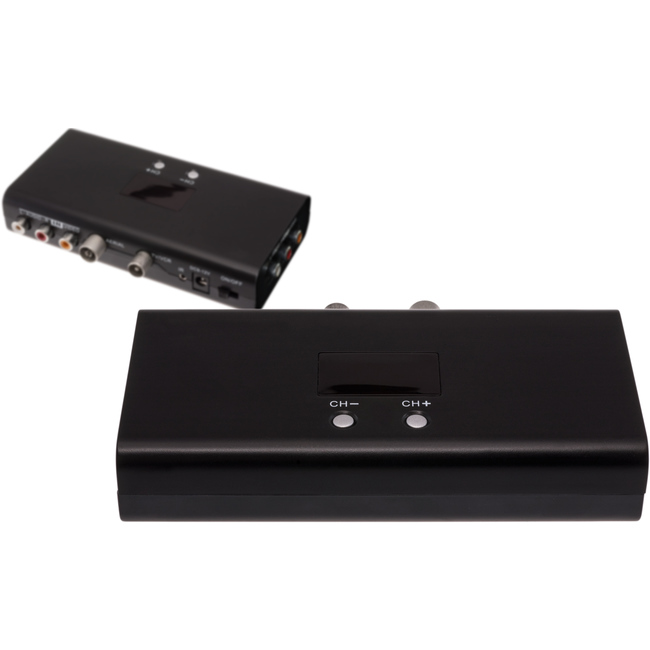

- RFD2169IR Main unit x1
- IR Emitter x1
-

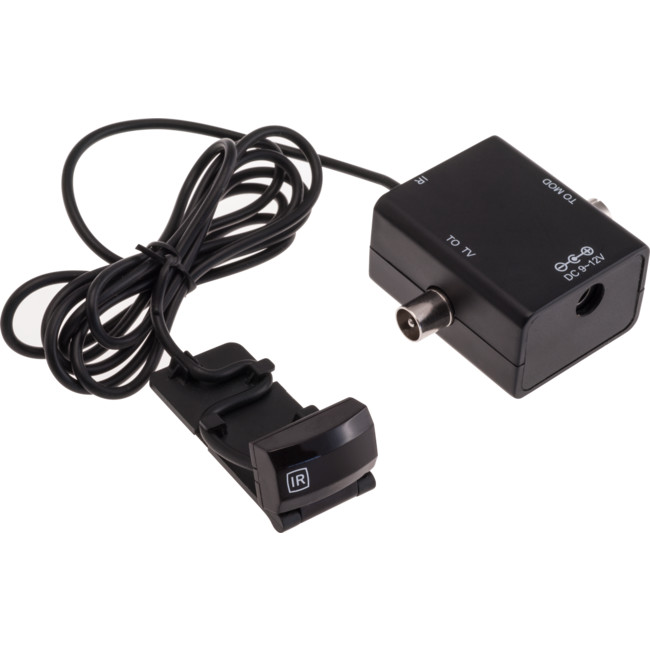

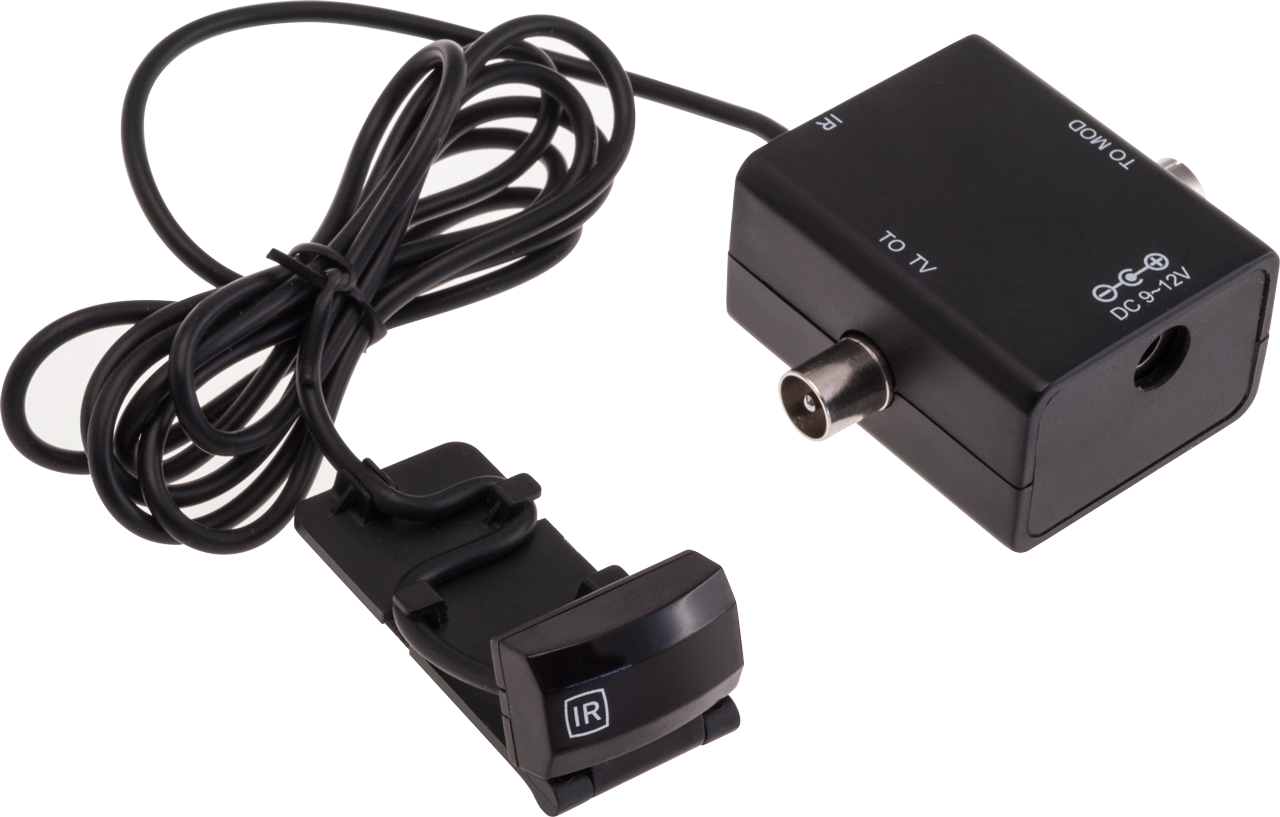

IR Tx Unit x1
- With fixed IR Receiver
-
AC/DC Adaptor x 1
- 12V DC / 250mA
-
RF cable x2
- PAL Plug to Socket
Specifications
.rpg_table { border-collapse: collapse; margin: 15px; } .rpg_table th, .rpg_table td { padding: 5px; line-height:22px !important; } .rpg_table td, .rpg_table th { text-align: left; vertical-align: top; border-top: solid 1px #cccccc; border-bottom: solid 1px #cccccc; } .rpg_table th, .rpg_table .header { font-weight: bold; text-align: left } .rpg_table th[align=center], .rpg_table td[align=center] { text-align:center !important; } .rpg_table .spacer { border: 0 !important; width:15px !important; } .rpg_table .no-wrap { white-space: nowrap !important; }
Main Unit | Input | 45~862 MHz |
---|---|---|
Input Connector | PAL (IEC) Female, 75 Ω | |
Output | CH 21~69 | |
Output (combined) |
45~862 MHz,
10~20 MHz (IR return) |
|
Output Level | 75 ± 5dBµV | |
Output connector | PAL (IEC) Male, 75 Ω | |
AV Input | RCA | |
AV Output | RCA Loop through | |
Video Input impedance | 75~1.3 kΩ | |
Video Input Level | 1 Vpp | |
Video S/N | 42dB min | |
Audio Input impedance | 10 kΩ | |
Audio Input Level | 0.4V | |
Powering | 12V DC | |
IR Output |
2.1mm mono jack
Adjustable IR Emitter |
|
IR carrier frequency | 30~60 kHz | |
IR RF frequency | 7 MHz | |
IR Receiver | IR carrier frequency | 30~60 kHz |
IR RF IF frequency | 7 MHz | |
IR RF Output level | 40dBmV | |
IR RF Distance | 100m (Maximum) |
Downloads
pdf; 584kB
RFD2169IR RF Modulator Sell sheet
