RFD2169BF RF MODULATOR & ‘F’ CONNECTOR

Features

Insert your favorite video program, such as DVD, Satellite Receiver, Digital Set Top Box etc. to a TV withoutRCA connector through this RFD2169BF Video RF Modulator and you can also share to several TV’s in your home through your RF distribution network.

  • High power RF output: 72dBuV ±5dB
  • SCART Input/​output and 1 RCA input
  • Antenna input
  • Antenna output (TV)
  • DC power supply input

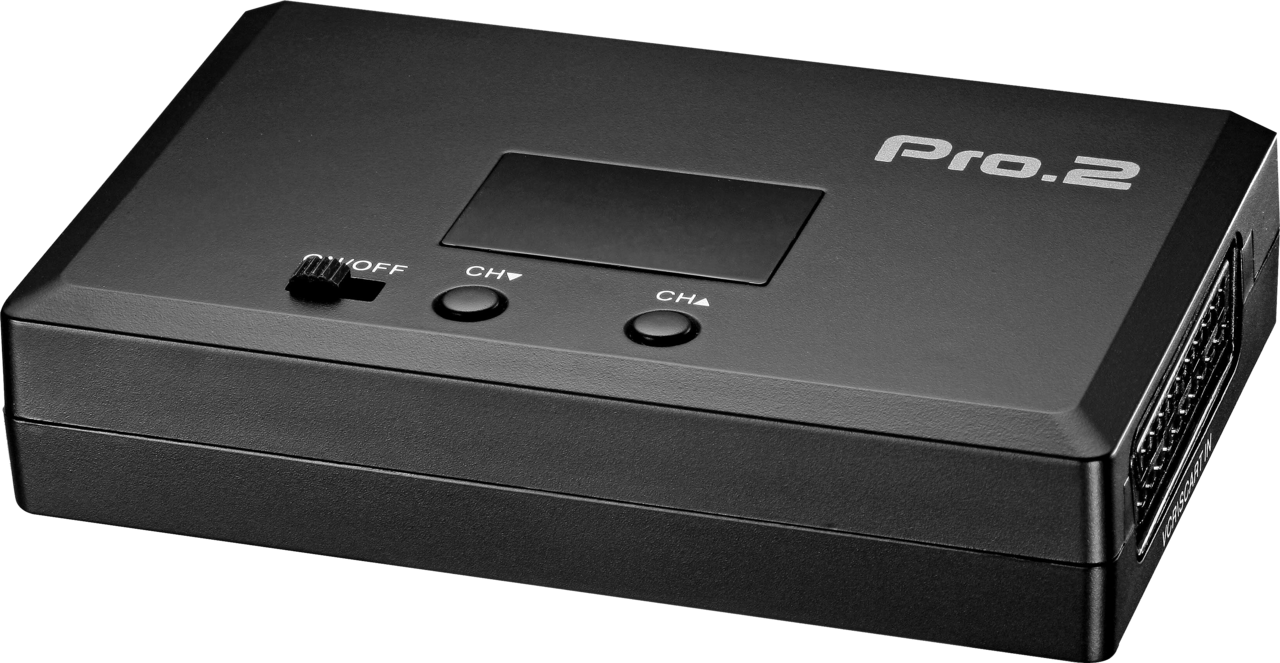

  • ON/​OFF switch
  • Channel Adjustment (Up/​Down key)
  • LED Channel Number display

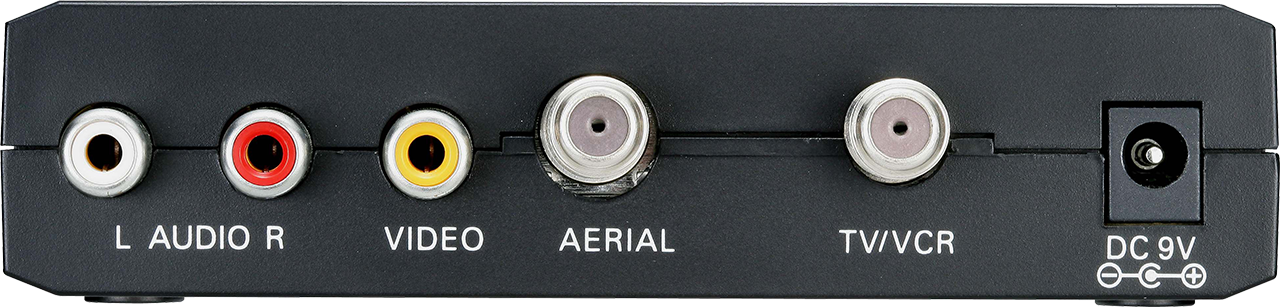

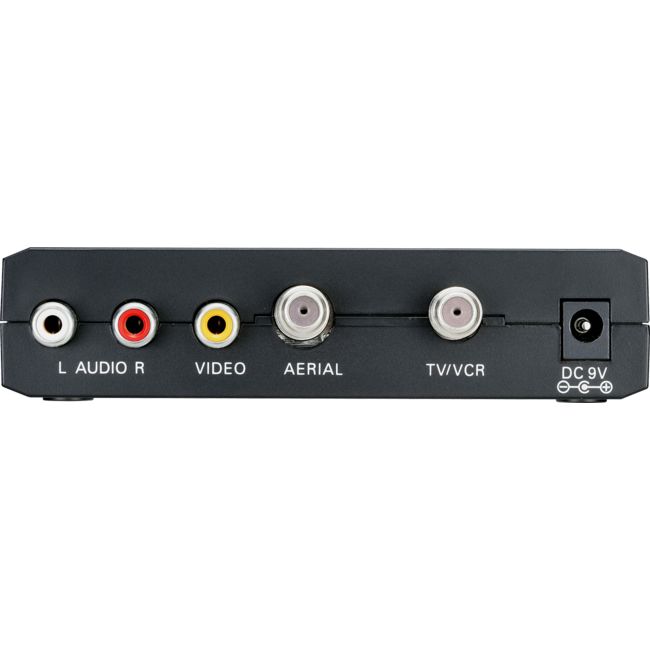

Connections

Specifications

  • RF Input: 45~862MHz
  • Input Connector: F Female,75 Ohm
  • Output: CH 21-69
  • Output (combined): 45~862MHz
  • Output connector: F Female,75 Ohm
  • Video & Audio
  • Input: RCA/​SCART
  • Output: SCART (Loop Through)
  • Video Input impedance: 75~1.3K ohm
  • Video S/​N: 40dB min
  • Audio Input impedance: 10K
  • Ohm Powering: 9V

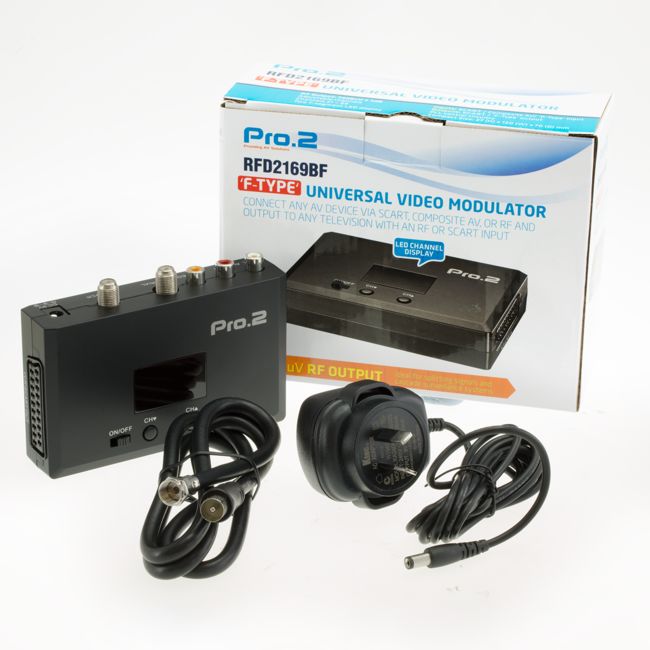

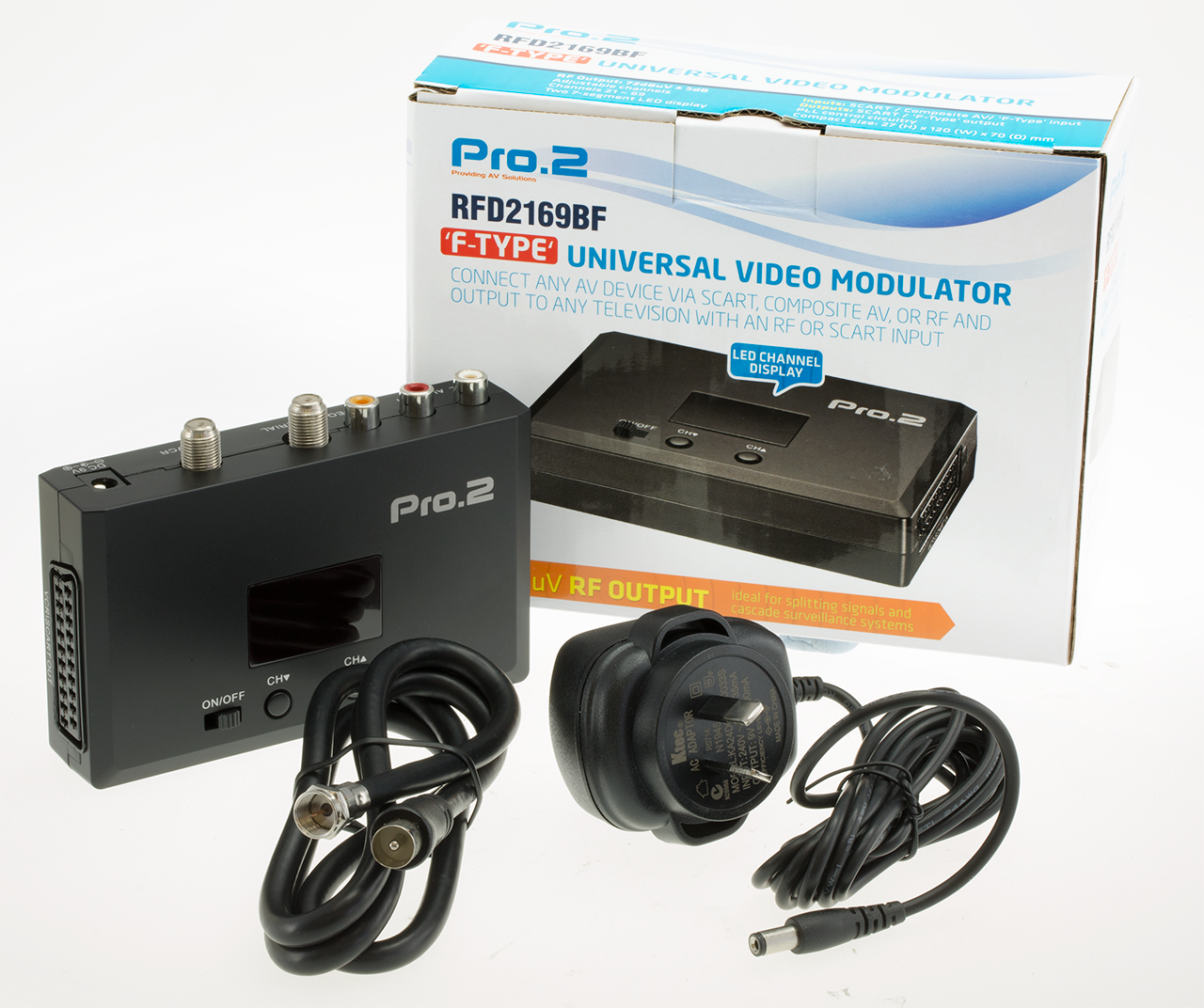

DC Accessories:

  • AC Adaptor x 1: 240VAC (9V DC @ 200mA)
  • RF Cable: F Male—>IEC Female @1m
