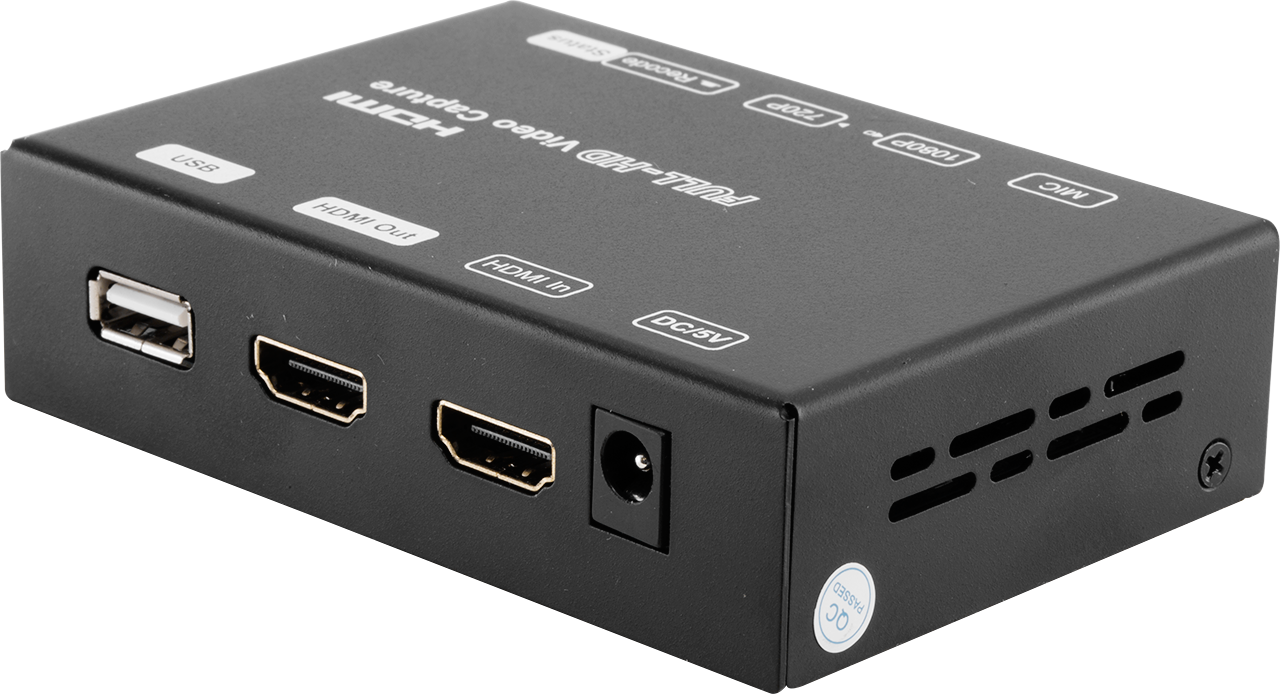

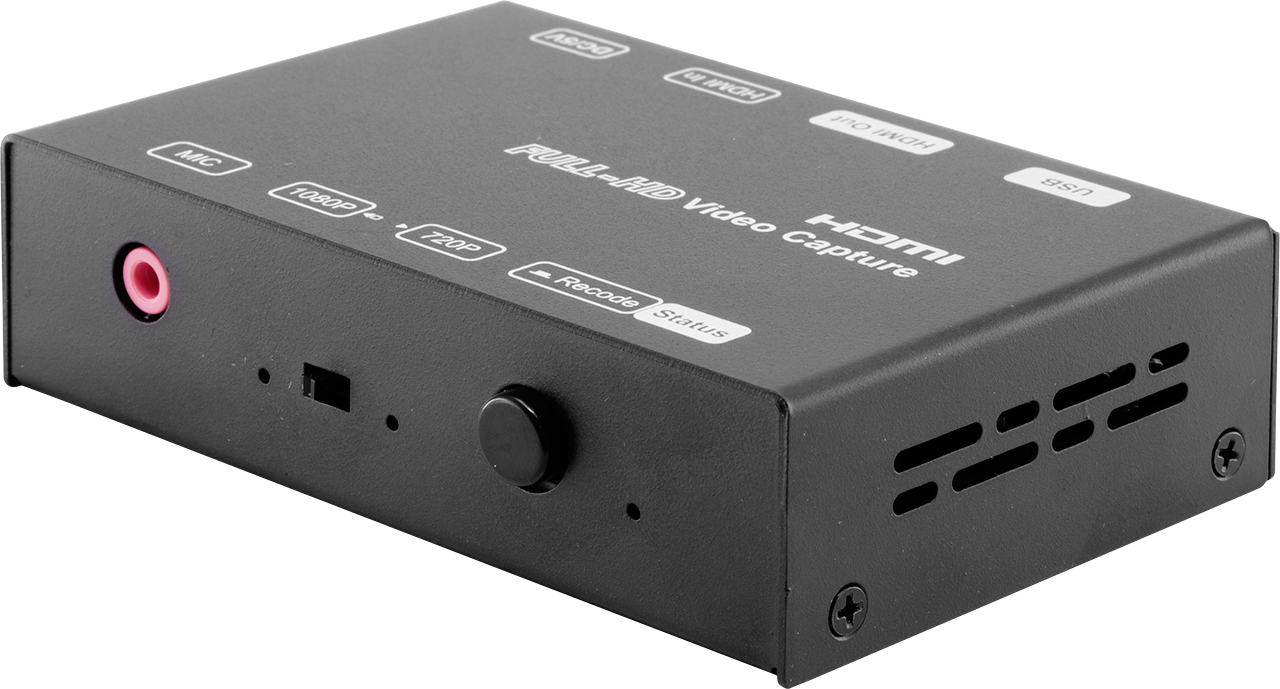

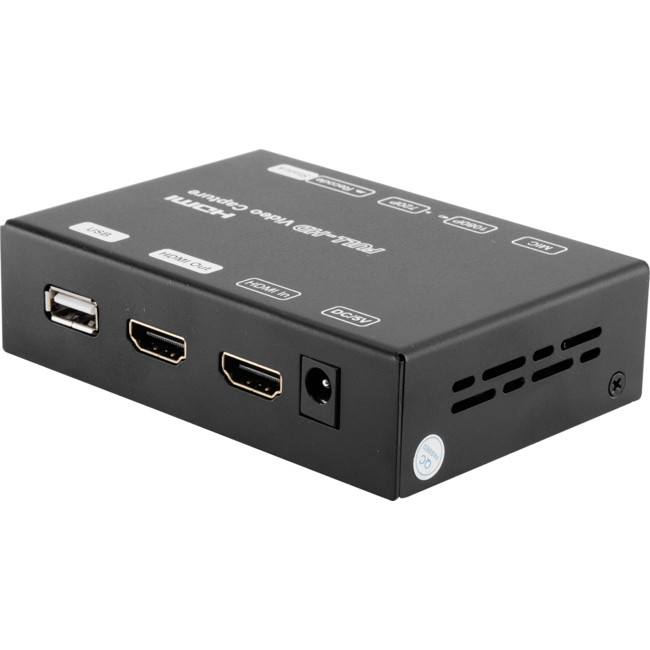

HDVC01 1080P FULL HD VIDEO CAPTURE

Are you a console gamer and want to share your moves, or is your PC taking CPU taking a hit while recording your gameplay? Perhaps you are selling AV equipment and want to record professional walk-throughs of your product’s menus. Don’t resort to pointing a camera at a screen! The Pro.2 HDVC01 records your HDMI video input—up to 1080P—directly to USB storage in h.264 encoding: no computer required!

Features

  • Support HDMI signal source of PlayStation 4, Xbox One and Xbox 360 game play in brilliant 1080p@60Hz with advancedH.264 encoding
  • Recording with one-click, easy to use. It doesn’t require any set up just click "RECORD" button to record yourgame play and re-click to stop recording
  • Supports NTFS/​FAT32 formatted USB storage
  • Automatically split the video up to 2GB per file
  • Support record video format of MPEG-4 and audio formatof RCA L/​R 3.5mm microphone input
  • Support upscale or downscale to 720P

Specifications

Operating Temperature Range -5 to +35°C
Operating Humidity Range 5 to 90% RH (No Condensation)
Output Video Format MPEG-4
encoder H.264
Input resolution 720×480 (60Hz)
720×576 (50Hz)
1280x720P (50Hz/​60Hz)
1920x1080i (50Hz/​60Hz)
1920x1080P (24Hz/​25Hz/​30Hz/​50Hz/​60Hz)
Capture resolution 720×480 (60Hz)
720×576 (50Hz)
1280x720P (50Hz/​60Hz)
1920x1080i (50Hz/​60Hz)
1920x1080P (24Hz/​25Hz/​30Hz)
Support Audio Format LPCM
Bandwidth 2.25Gbps
USB 2.0
Power consumption 3watts (Maximum)
Dimension (L×W×H) 102.2×70.1×27.1mm
Net Weight 220g
