Features
Considering extending your HDMI source over single Cat5E/Cat6 cables?
This HDMIIPPRO HDMI over IP Extender uses advanced H.264compression type which transfers signal using lower bandwidth thus tranmit more smoothly.
It supports 120m over single Cat5E/6 cable at point to point. It also supports point to many and many to many transmition over ethernet switch.
A great HDMI over IP solution for meeting room, class room and home etc.
The PRO version supports remote control and can be powered by POE.
- Using H.264 compression encoding, Supports resolution up to 1080p@60Hz
- Transmit up to 120m over single Cat5E/6 cable with 1 looping HDMI output

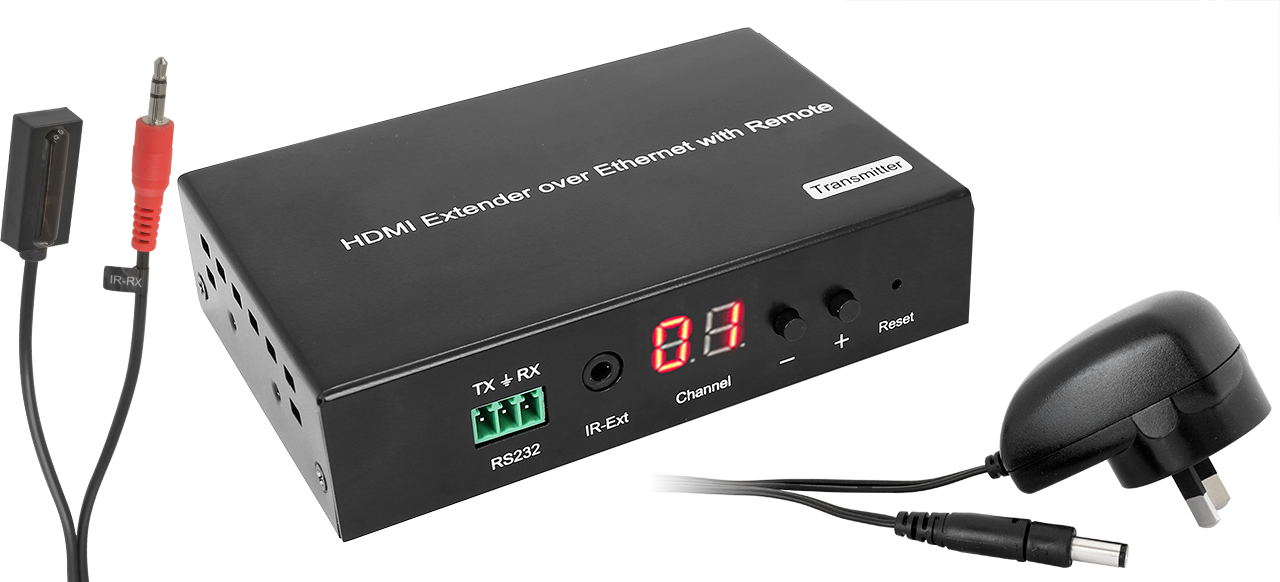

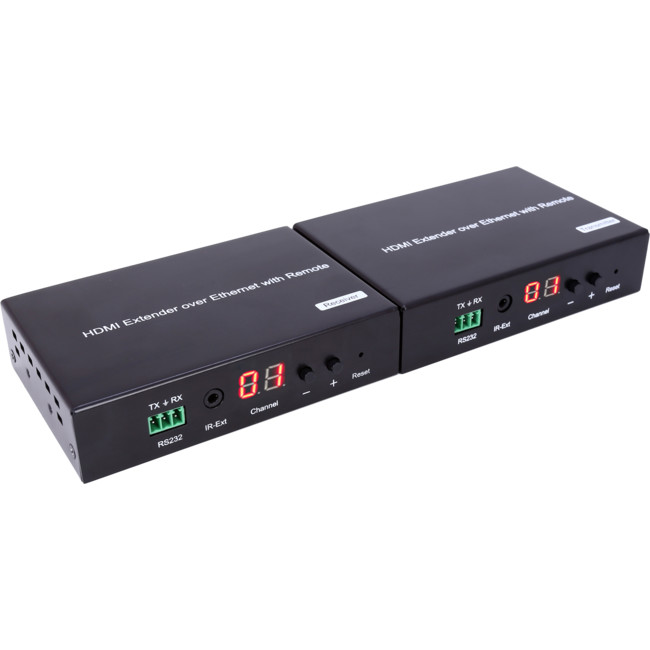

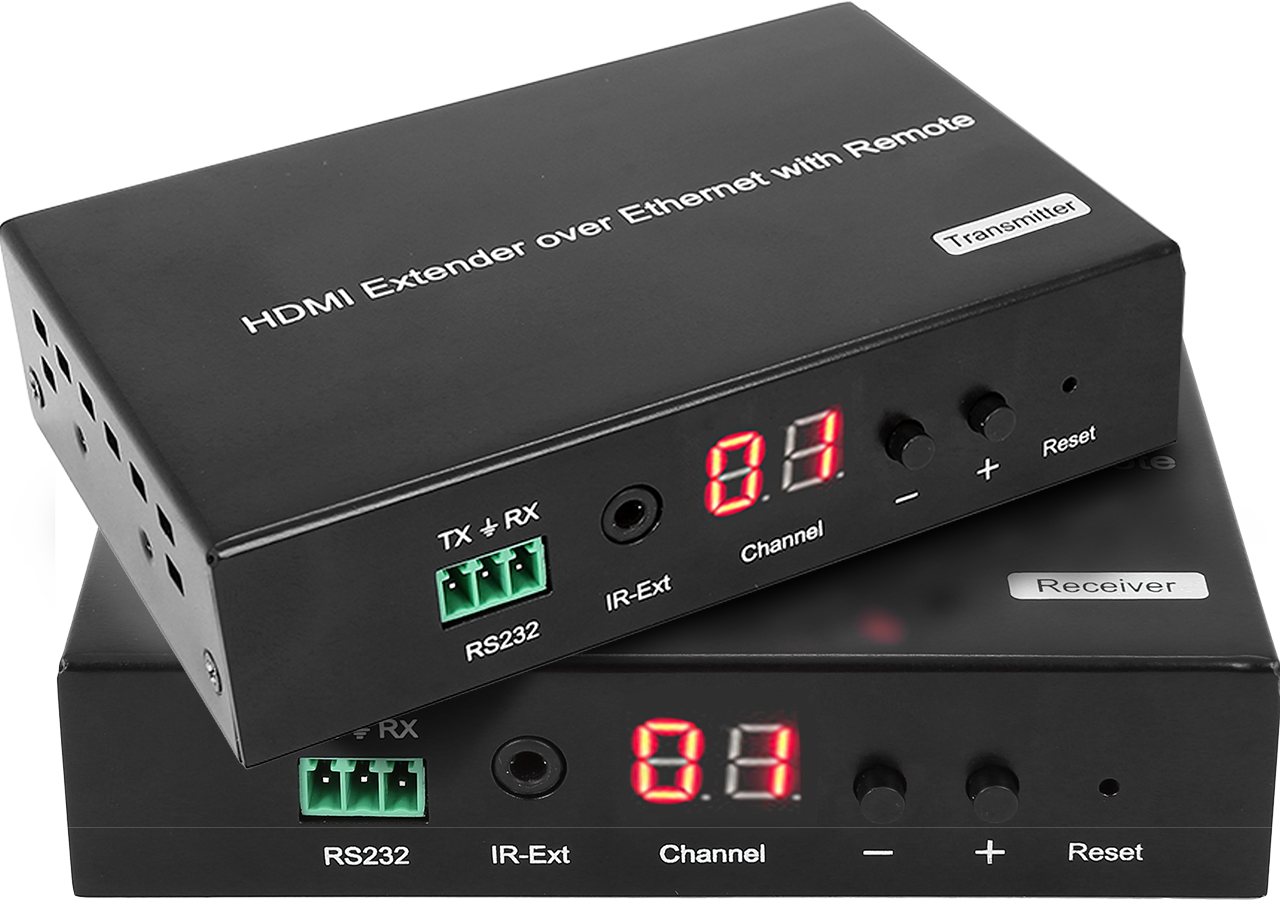

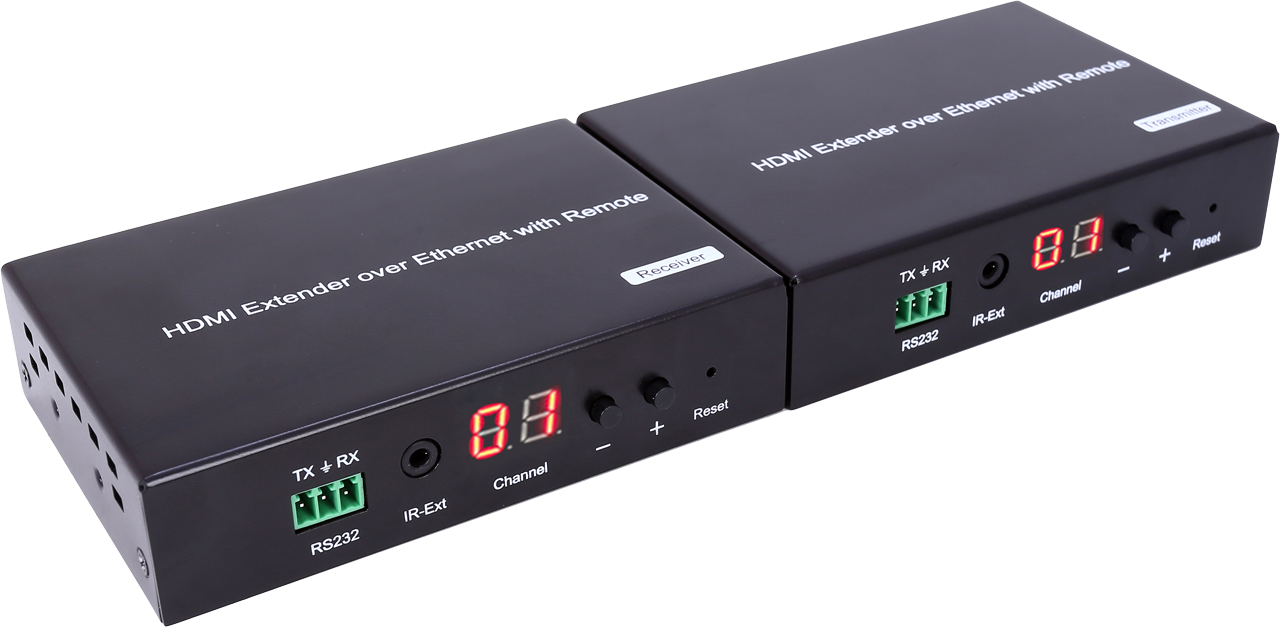

- With IR remote for source selection. LED front panel showing group ID.
- Complies with TCP/IP protocol, streaming bit rate is up to 15Mbps
- Supports LPCM audio format
- Supports DHCP for easy IP address assigning
- By pass 2 way UART/RS232 (Up to 115200), remote controlcan be used for selecting 8 group baud rate.
- Supports one to one, one to many, many to one, many tomany modes.
- Can be powered by either power supply or POE
- HDCP compliant
- Supports PC tool control
FAQs
- I am having trouble changing IP address
- Please click here for more information
- What type of internet switches are ideal to be used with this product?
- To ensure the best performance of HDMIIPPRO, a managedgigabit switch with IGMP (Internet group management protocol) snooping function is recommanded for many to many applications.

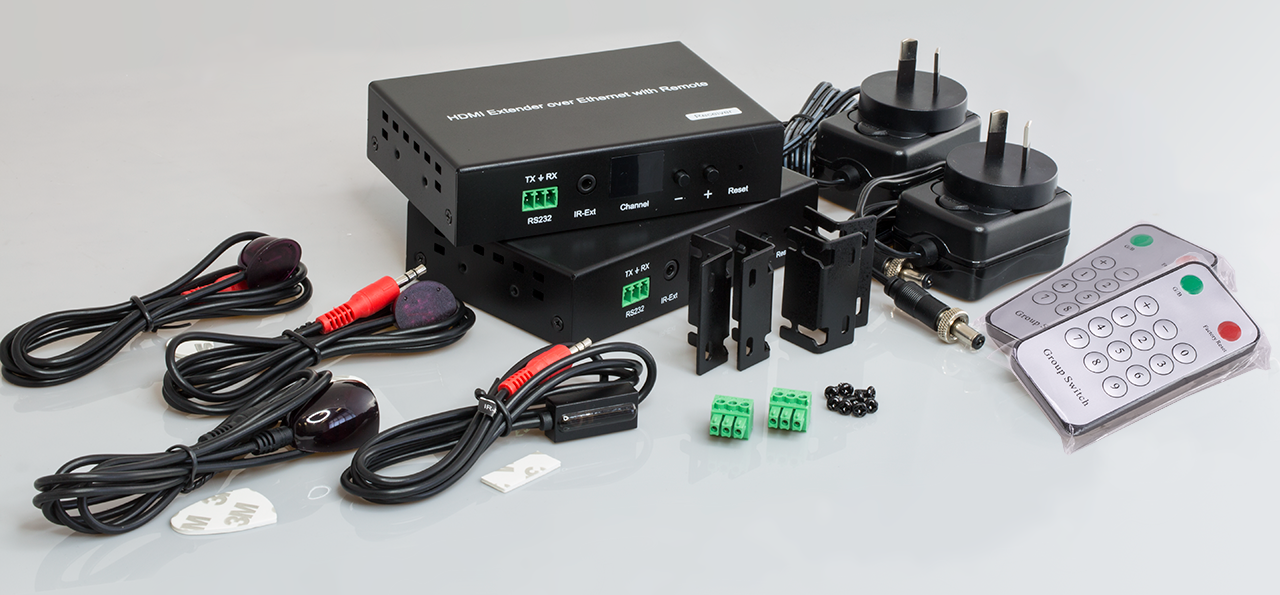

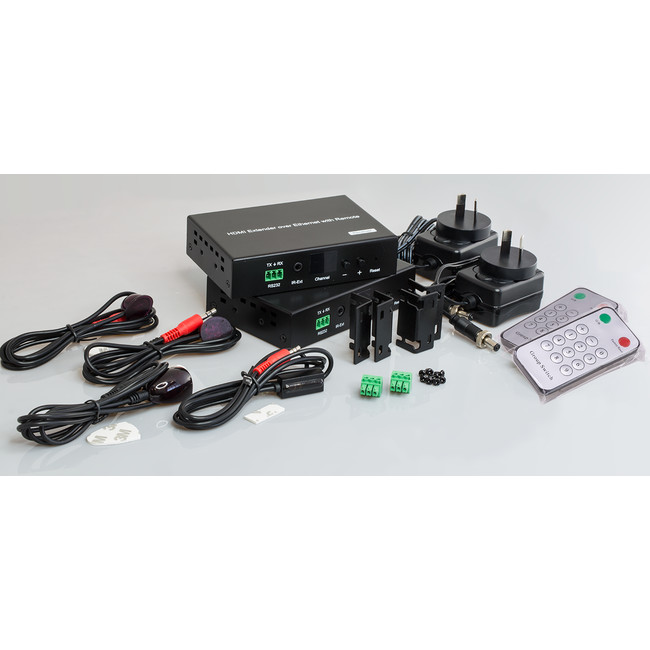

Packing content
1x Transmitter
1x Receiver
1x IR-TX cable
1x IR-RX cable
1x Manual
4x Mounting Screws
4x Detachable Mounting Ears
2x Phoenix Plugs For RS232 Cable Termination

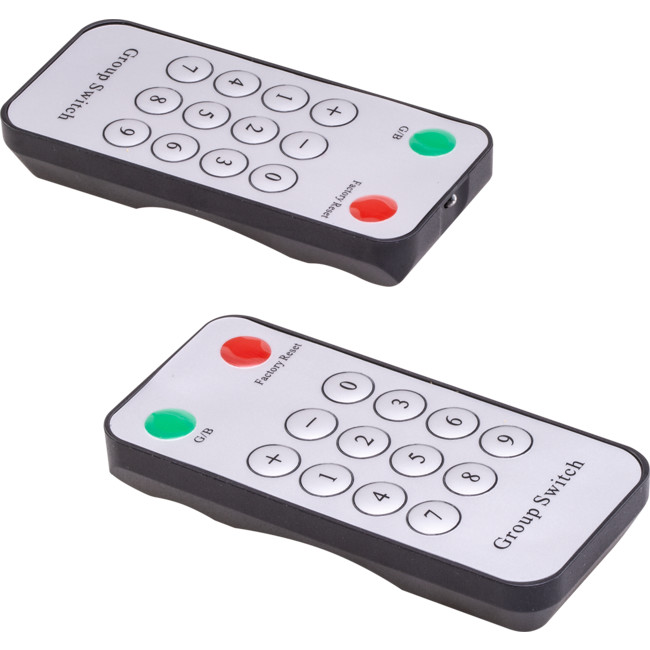

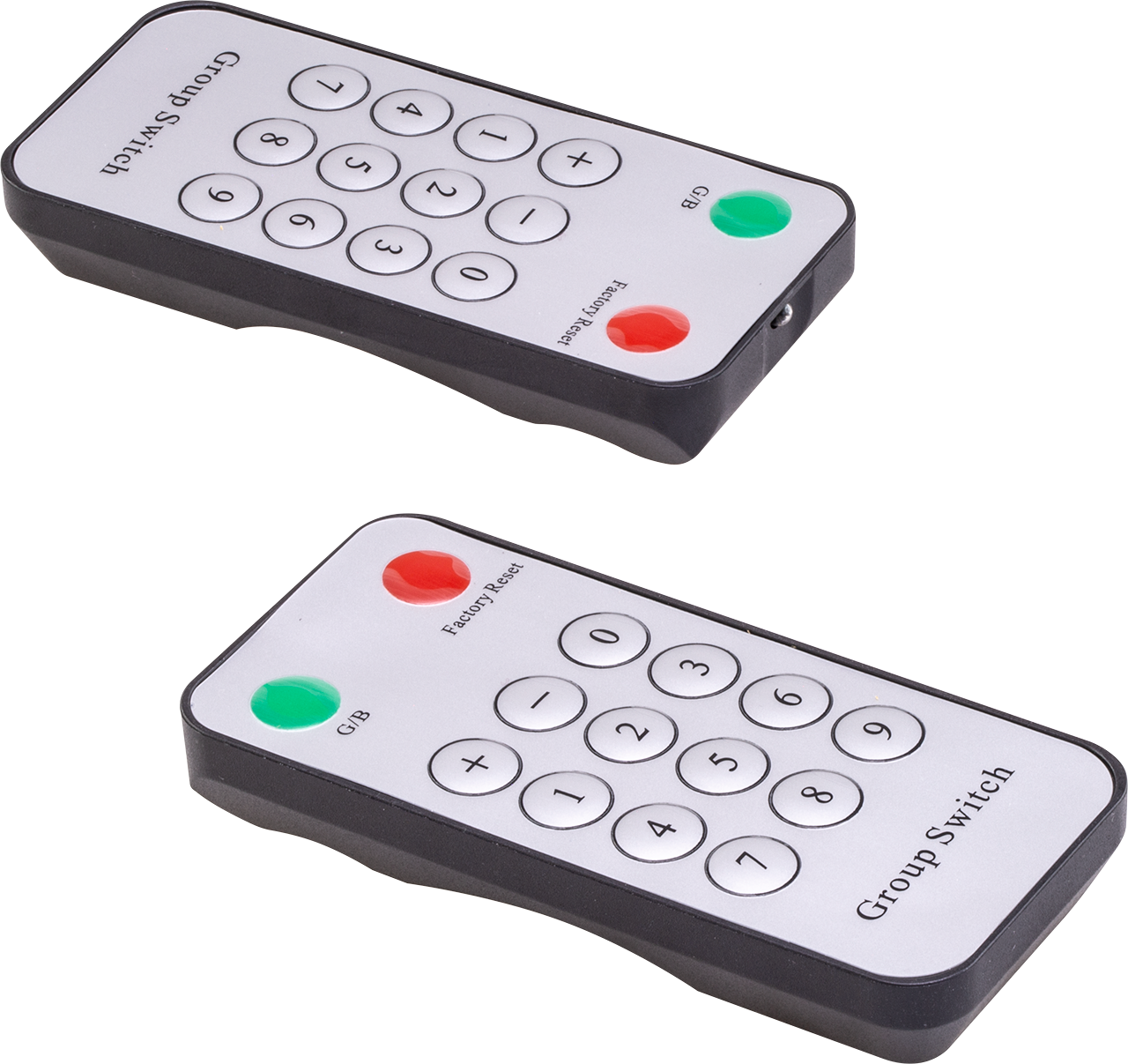

2x Remote Control
2x 5V 1A Power Supplies
Specifications
Performance | |
Protocol | H.264 encoder over TCP/IP |
Video Format | 480i/480p/576i/576p/720o/1080p@60Hz |
Audio Format | LPCM, Audio sampling rate 48kHz |
Bit Rate | 15Mbps |
HDCP | Yes |
IR Frequency |
38-56 kHz |
RS232 Baud Rate | Default 2400bps-8 options |
IP Setting& Group ID Setting | |
Default IP | TX: 192.168.1.11; RX: 192.168.1.12 |
Group ID | Group 00-Group 63 |
Switch/Router Requirements | Supports IGMP, DHCP |

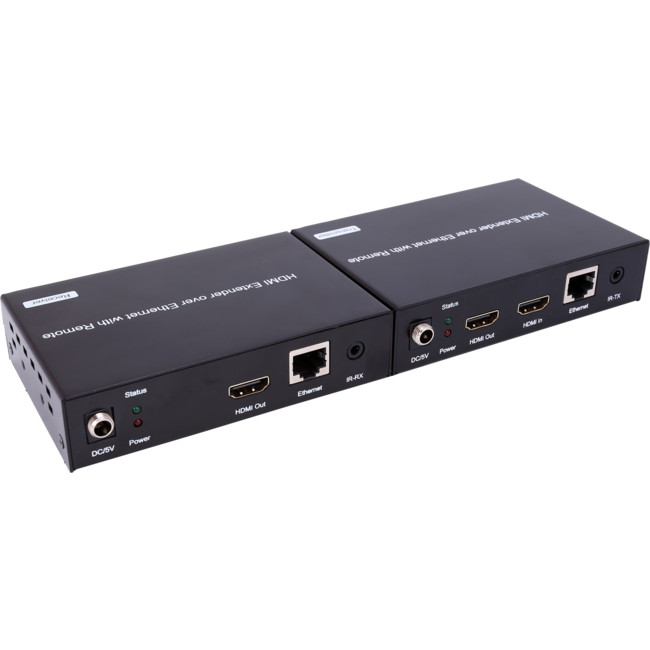

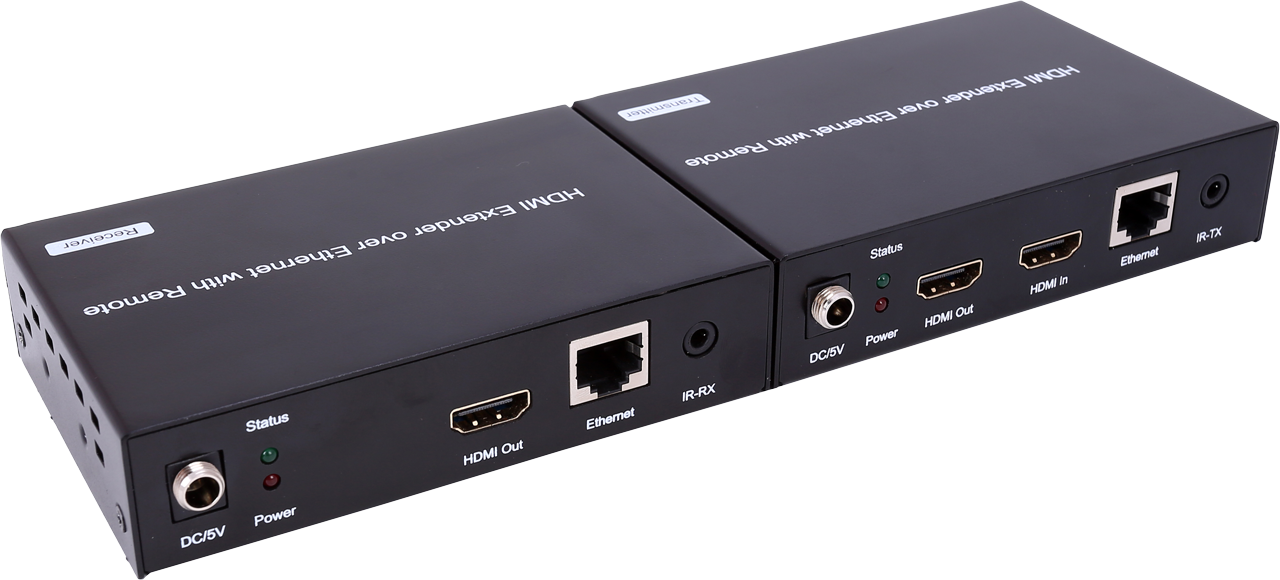

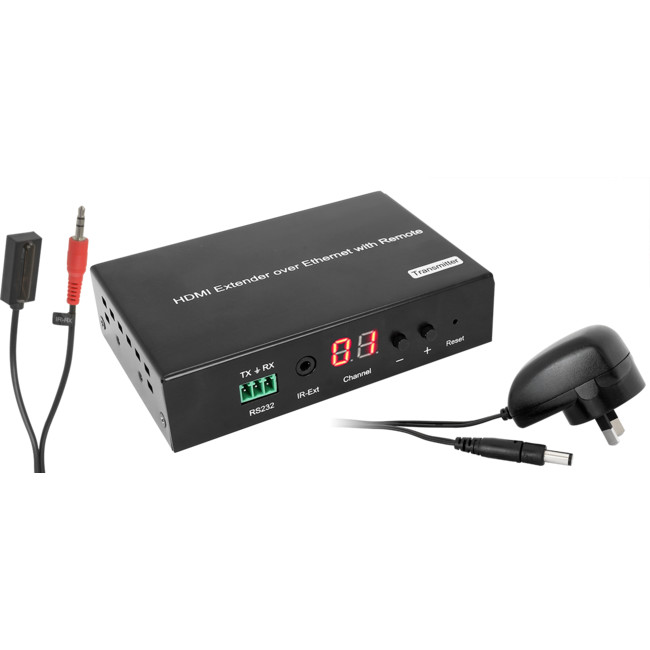

Transmitter Connections | |
Input | 1x HDMI socket |
Output | 1x RJ45 output, 1x HDMI looping output |
RS232 | Phoenix RS232 port |
IR | IR TX port (supports 38k-56k Hz) |
IR Ext port (supports 38kHz) | |

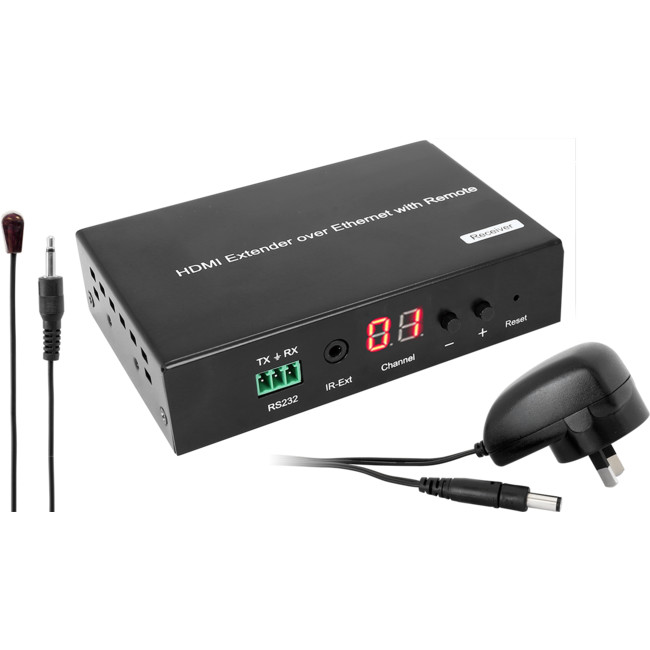

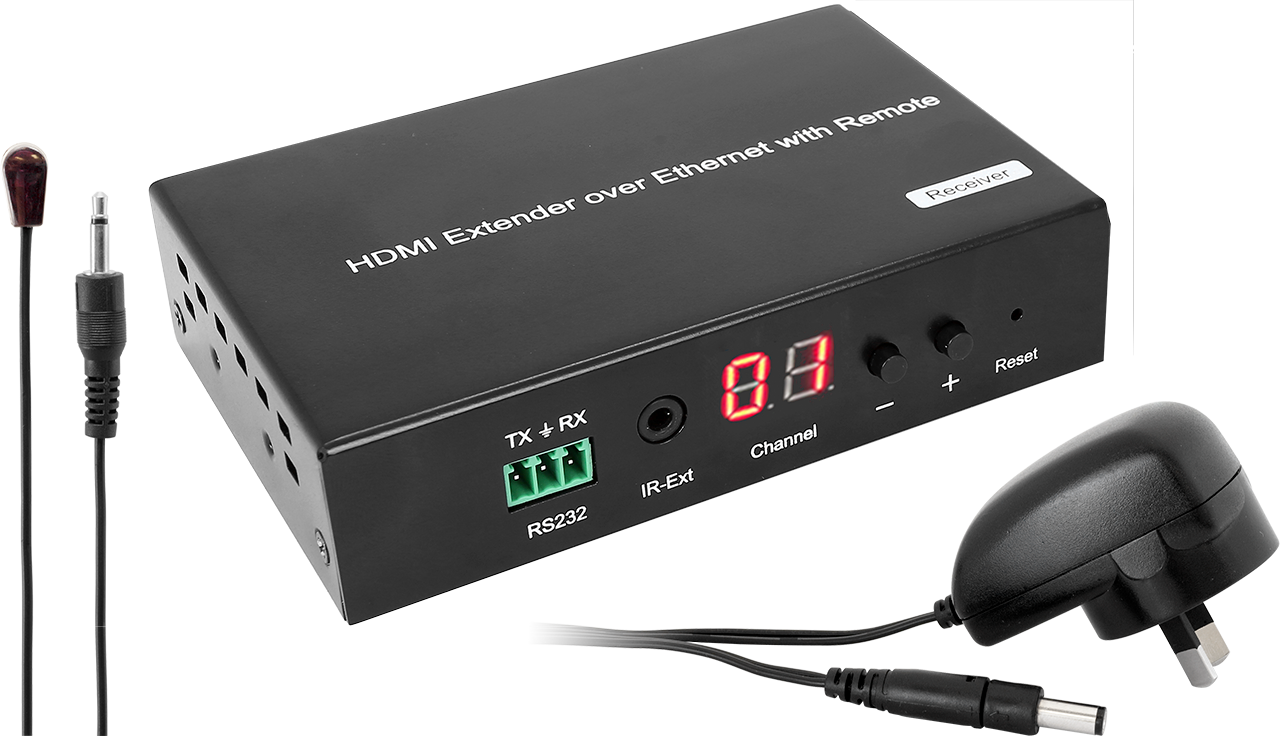

Receiver Connections | |
Input |
1x RJ45 input |
Output | 1x HDMI socket |
RS232 | Phoenix RS232 port |
IR | IR RX port (supports 38k-56kHz) |
IR Ext port (supports 38kHz) | |
General | |
Operating Temperature | -5 – 35°C |
Operating Humidity Range | 5 to 90% RH |
Power Supply | DC 5V 1A |
Power Consumption | Max 3 watt |
Dimension | TX: 119×79.5x28mm; RX: 119×79.5x28mm |
Net Weight | TX: 028 kg; RX: 0.28 kg |
