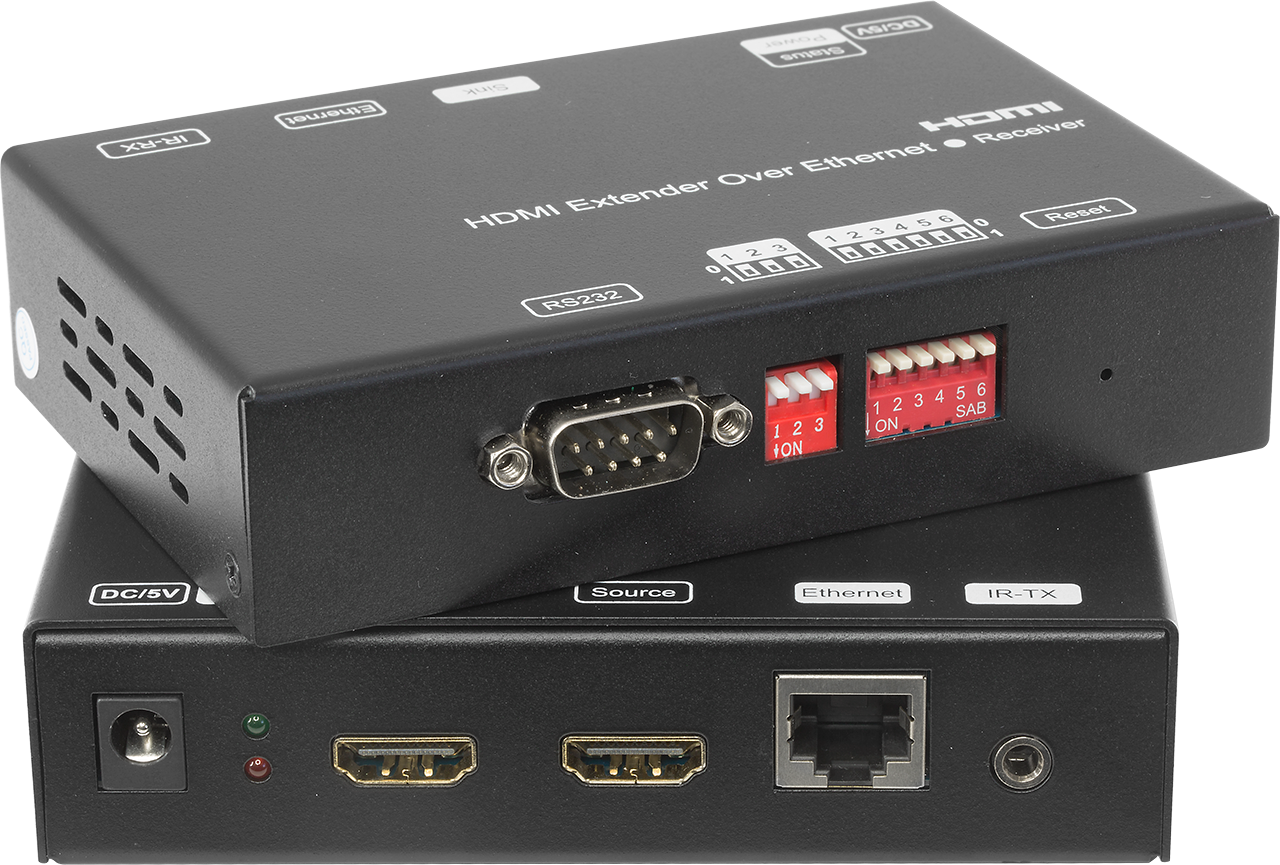

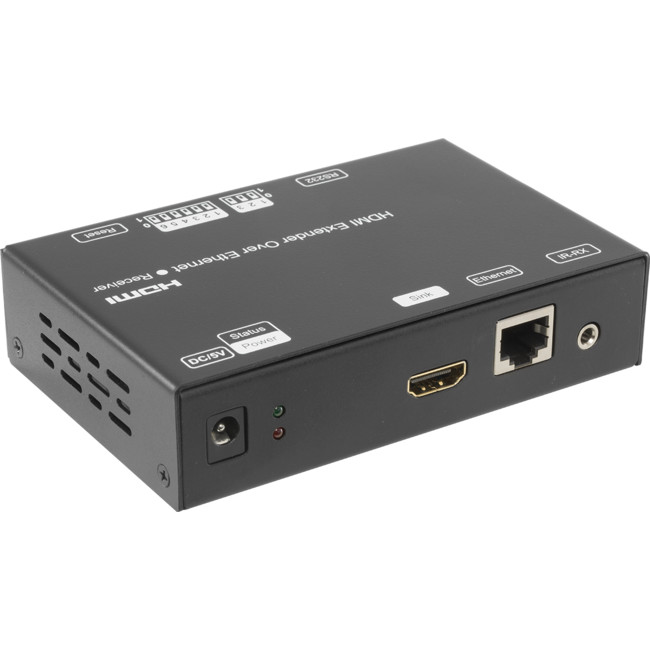

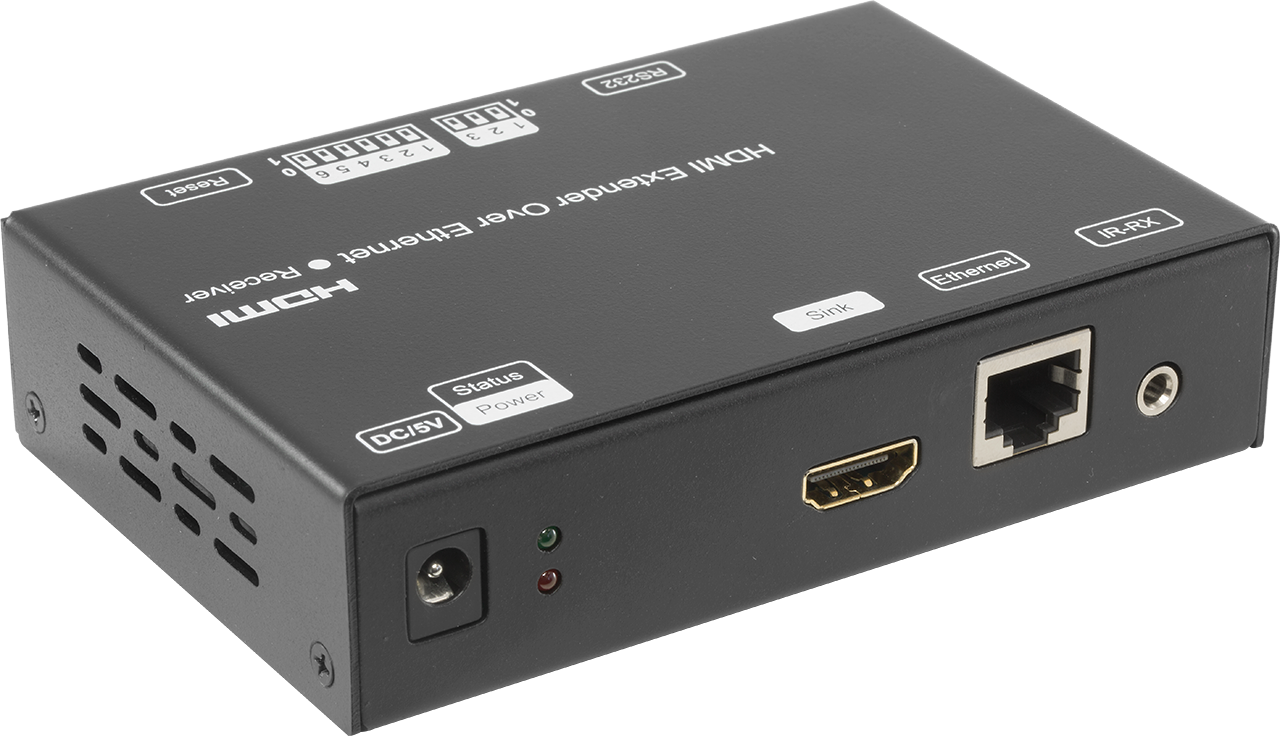

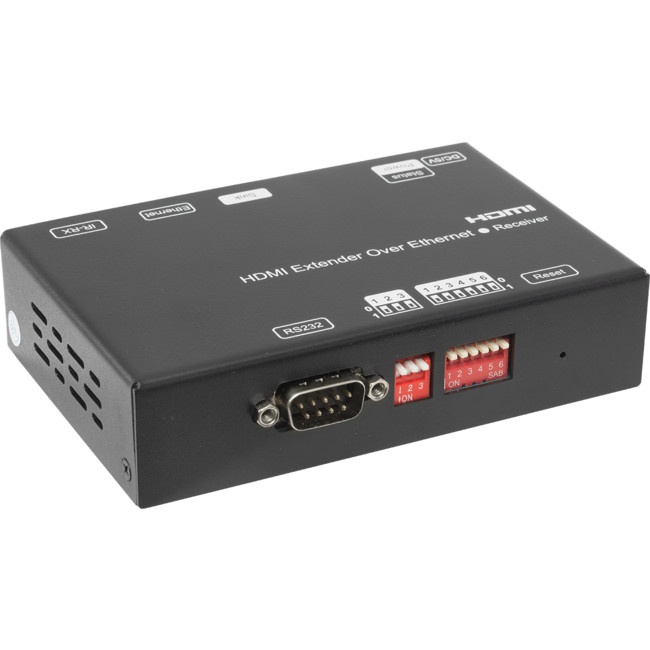

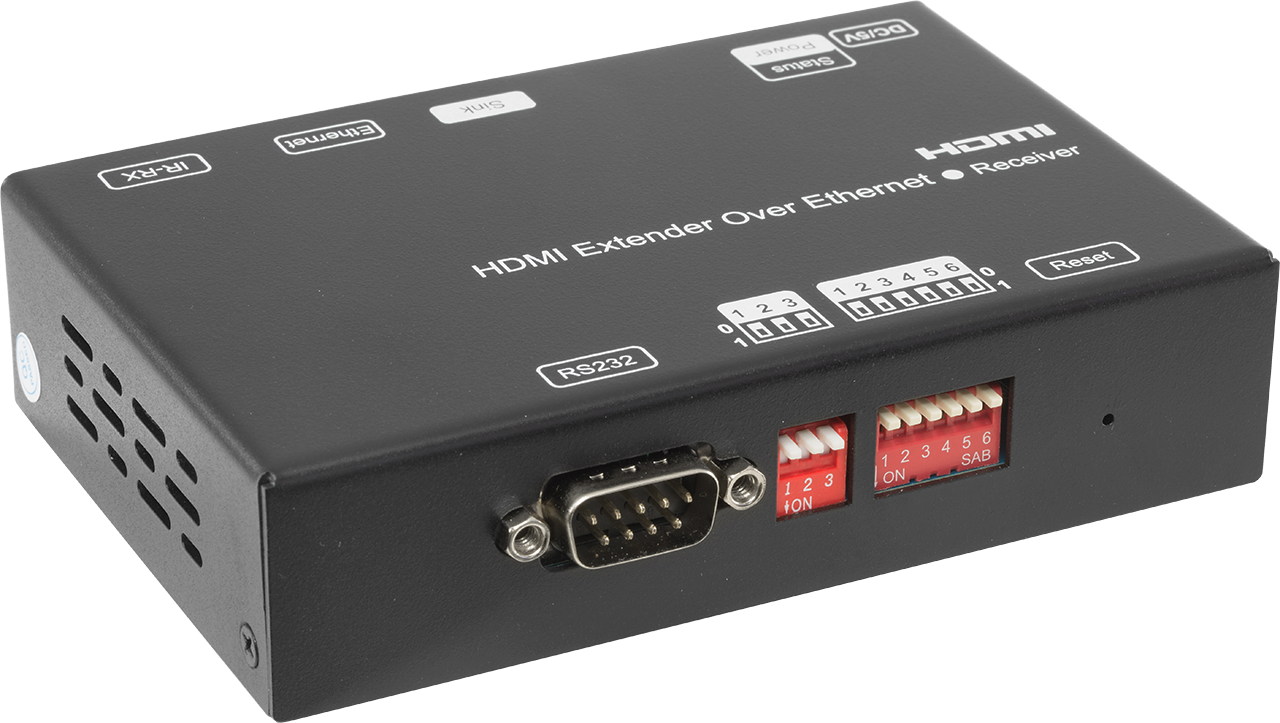

Features
HDMIIPECO uses H.264 as compression type, which takes lower bandwidth and transmits the signal over the LAN more smoothly. It transmits the HDMI signal for up to 120m over single cat5e / 6 cable at point to point, as well as point tomany and many to many over Ethernet switch. It can be widelyused in various locations, such as meeting room, class room, metro, airport, home, mall advertisement…etc.
- Use H.264 as compression type, high video quality with low bandwidth required
- Support resolution up to 1080p @ 60Hz, data transmissionspeed is 2.25 Gbps
- FOXTEL IQ IR compatiable
- Real and managable IP addresses allows HDMI source can be accessed inside network via VLC player.etc. Footages can be recorded by software.

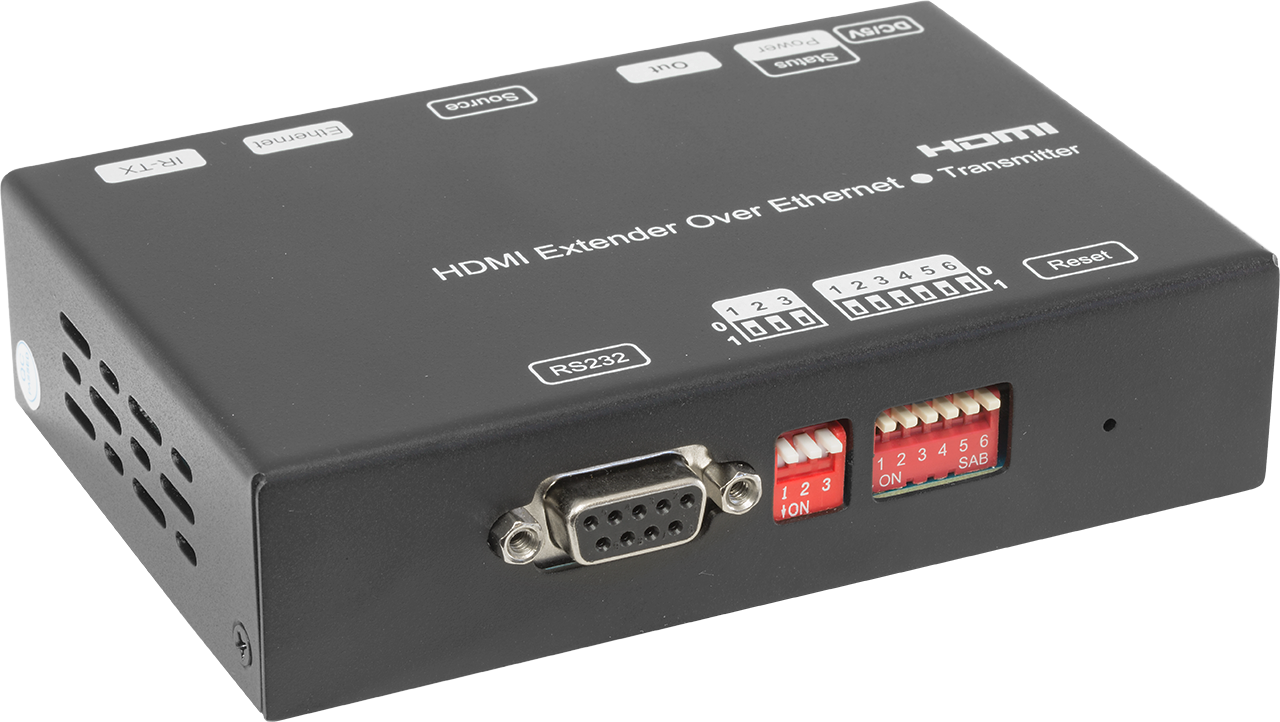

- Dip swithc to change sources
- Support LPCM audio format, sample rate is 48KHz
- Comply with TCP/IP protocol for transmission, streaming bit rate is upto 15Mbps.
- Compliant HDCP
- Support RS232 pass through
- Support Wide-band IR (38k ~ 56khz)
- Support point to point, point to many, many to point, many to many broadcasting network configuration
- Support DHCP, switch assign IP for the Transmitter and Receiver automatically
- With 3 Bit DIP to choose baud rate
- With 6 Bit DIP to manage group ID
- With HDMI output for local display on Transmitter
- DC 5V 2A power supply, power consumption less than 3W
Specifications

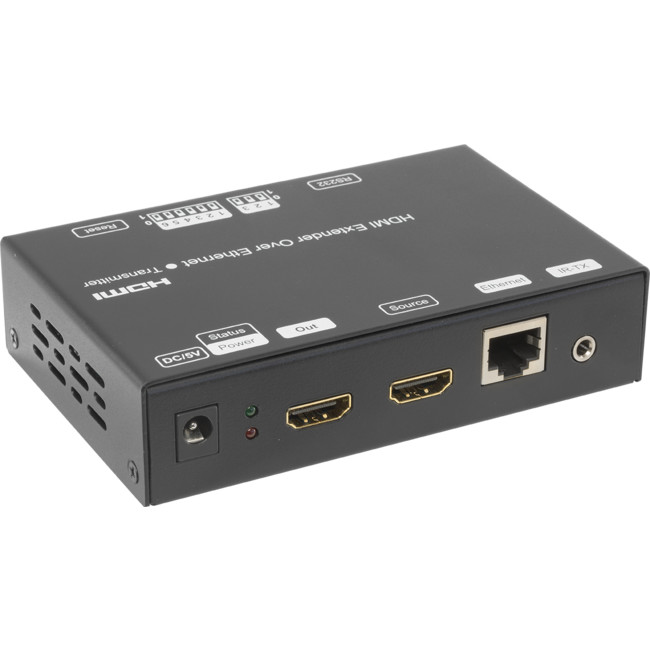

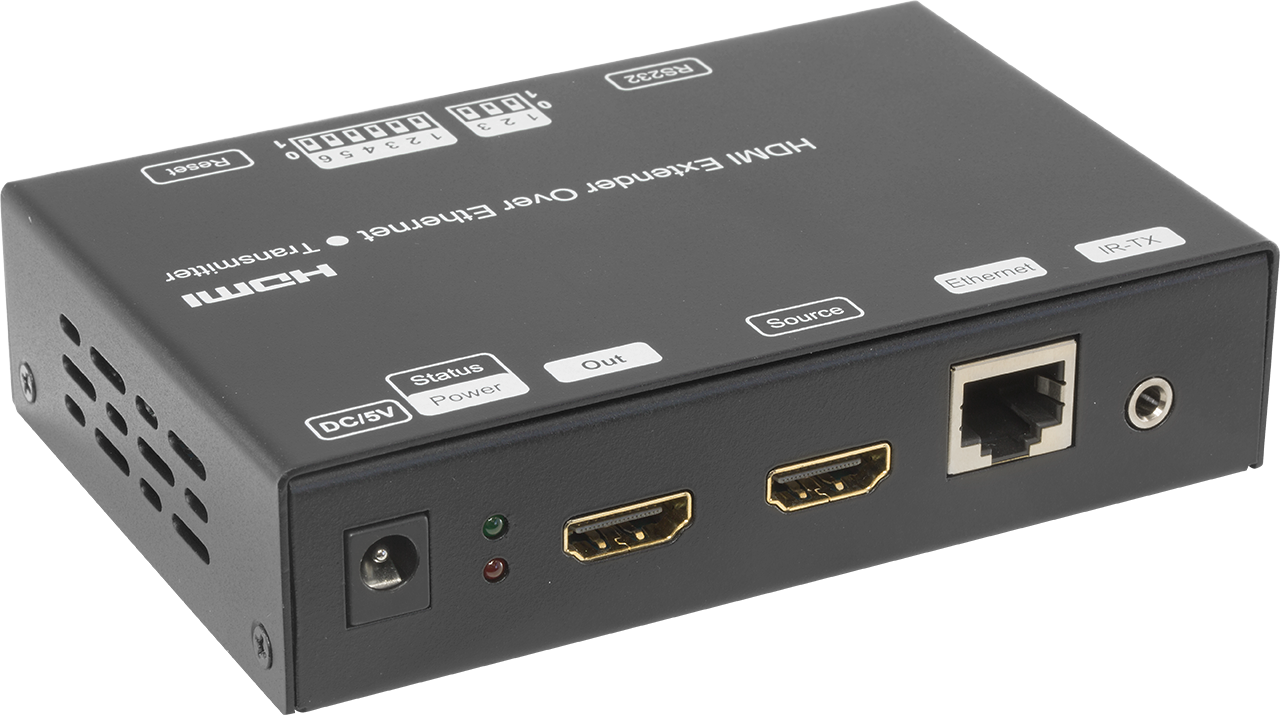

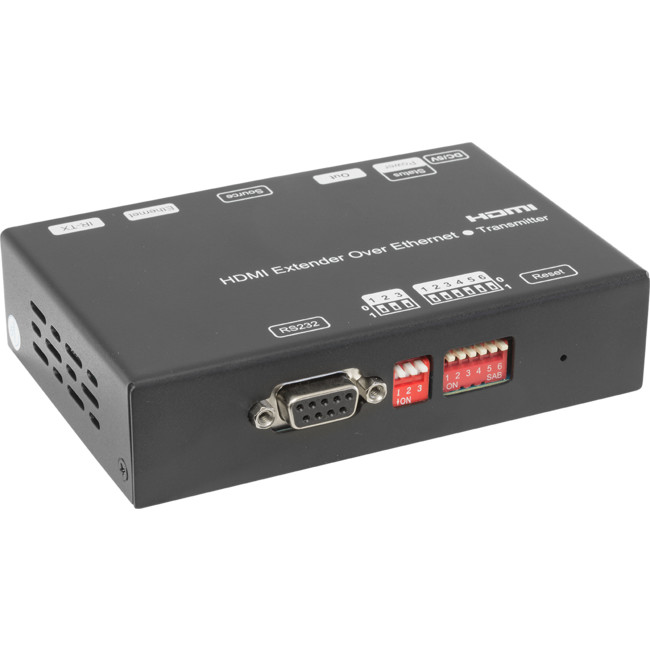

| Performance | |
| Protocol | H.264 encoder over TCP/IP |
| Support Video Format | 480i / 480p / 576i / 576p / 720p / 1080i / 1080p @ 60Hz |
| Support Audio format | LPCM, Audio sampling rate 48KHZ |
| Streaming Bit Rate | 15Mbps |
| HDCP | Compliant |
| IR Frequency | 38 -56 KHZ |
| RS232 Baud rate | Default 2400bps, total 8 kinds optional |
| IP setting & Group ID setting | |
| Default IP | TX: 192.168.1.11; RX: 192.168.1.12 |
| Group ID | Group 00 ~ group 63 |
| Request for Switch / Router | Support IGMP, support DHCP |
| Connectors on Transmitter | |
| Input | 1xRJ45 input |
| Output | 1x HDMI Female port |
| RS232 | DB9 Male port |
| IR | IR RX port |
| Environmental & Power Requirements | |
| Operating temperature | -5 to +35 ° |
| Operating Humidity Range | 5 to 90%RH (No Condensation) |
| Power supply | DC 5V 2A |
| Power consumption | Max 3 watt |
| Physical | |
| Dimension | 120.2×78.6×29 mm |
| Net Weight | TX: 0.28KG: RX:0.28KG |

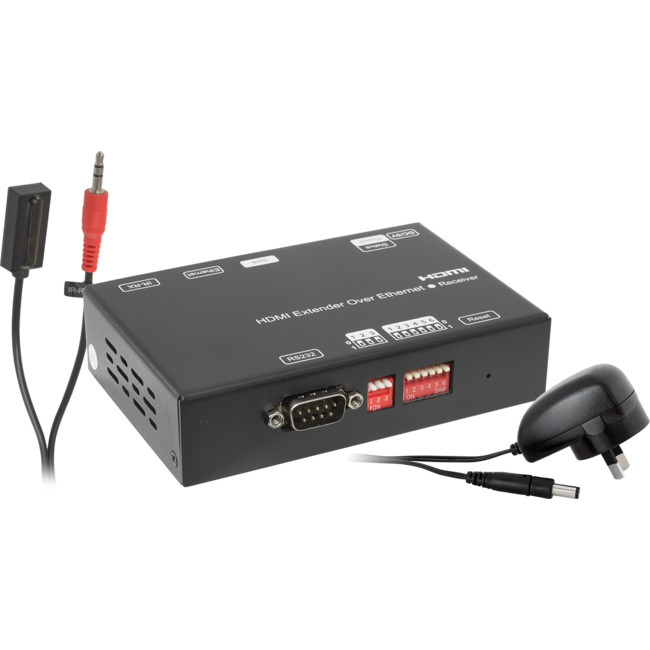

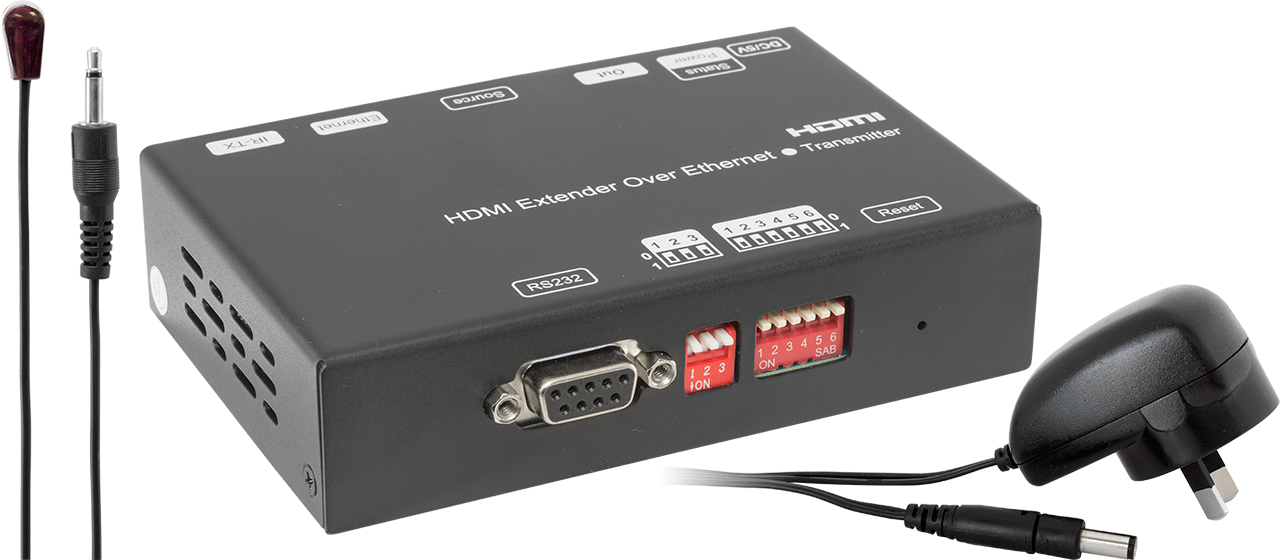

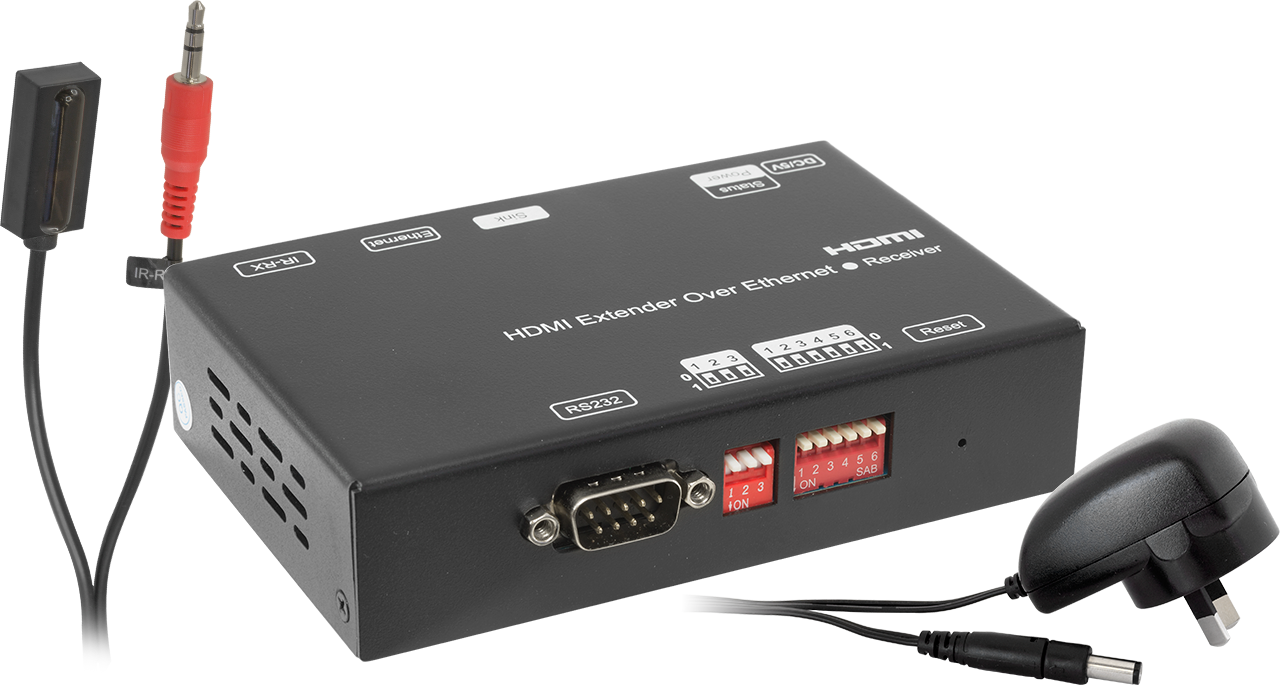

Package Contents

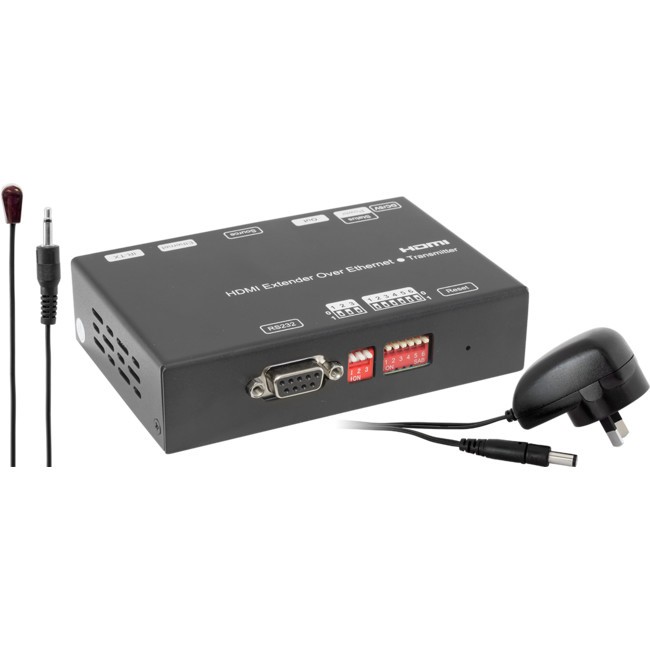

- 1x Transmitter
- 1x Receiver
- 1x IR-TX
- 1x IR-RX
- 1x Manual
- 2x Power adapters 5V 2A (included)
FAQ
- Does this unit work with the new Foxtel iQ3?
-
Yes. Just make sure your IR emitter is placed in the correct location. See the image below.
- How to Playback using VLC player software?
-
Please note VLC cannot playback videos covered by HDCP.
1. Open VLC player software and select "Media" then "Open Network Stream"
2.Select Network and IP address should be filled in
3. Select Stream in the drop down list at bottom right
4.
5.
6.
7. Click on Next to finish off streaming procedure
