HDC6EDID HDMI OVER SINGLE CAT6 EXTENDER (Discontinued)

Discontinued

Features

A neat and simple high definition HDMI extender kit. This kit extends your high definition AV sources from Blu-ray DVD Players, PS3 and XBOX etc. up to a maximum 50m via single solid CAT5E / 6 cables through the wall cavities. The new EDID feature increases its compatiblilty with players or displays. It supports full 1080P high definition and integrates an infra-red control extender for full controllability from the receiving end. RJ45 connections on the rear of both units make it for easy connection.

Foxtel iQ2and iQ3 compatible
  • Transmits HDMI Audio/​Video Signals and IR over a 50m single solid Cat5e/​6 Cable.
  • Transmits a wide-band Bi-Directional IR control signal together with the HDMI signal.
  • Supports 24bit Deep Colour.
  • Full cascade to create larger distributions.
  • Automatically adjusts feedback, equalization and amplification

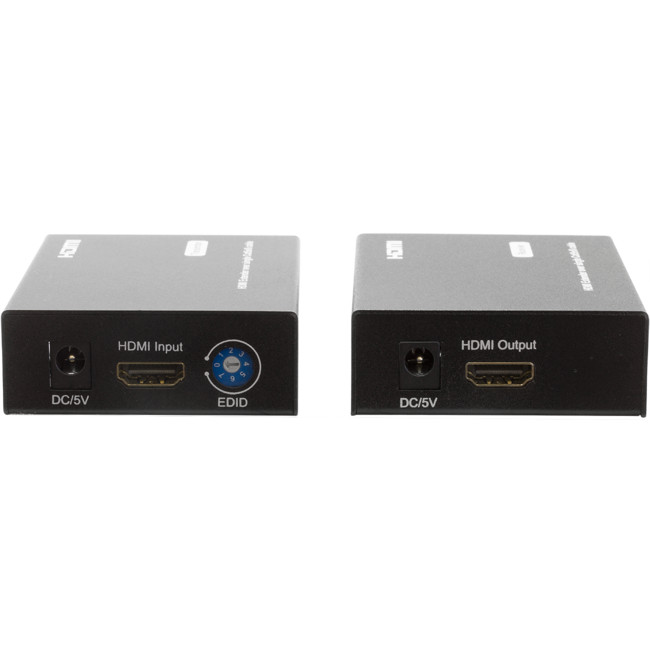

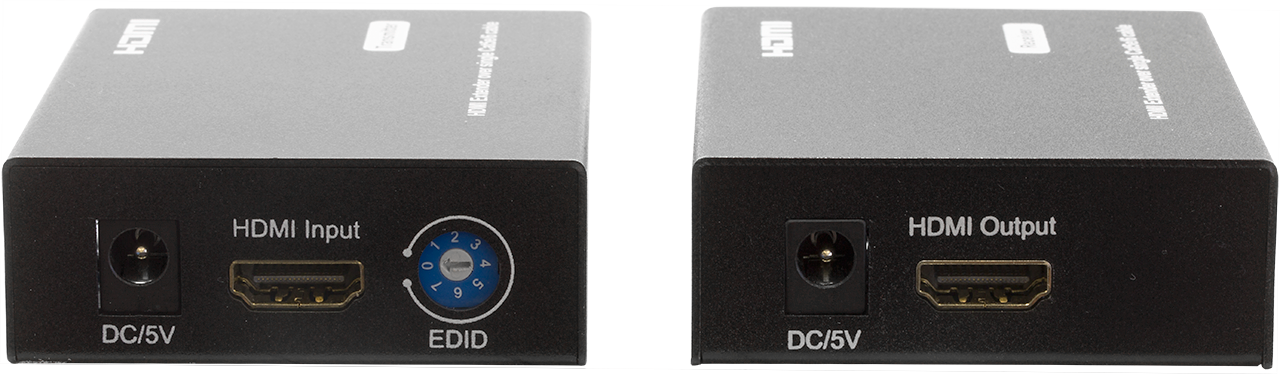

  • EDID DIP switch on Transmitter to enhance EDID communication between sources and displays
  • With adjustable EQ for optimizing the transmission signal
  • Supports PCM, Dolby Digital, and DTS Digital Surround
  • Follows IEEE-568B cable termination standards, solid cables are prefered
  • HDCP compliant
  • Supports 3D video format
Got the right cable?

Please note: IEEE-568B standard solid cables are recommended for this kit.

Wiring Diagram

Specifications

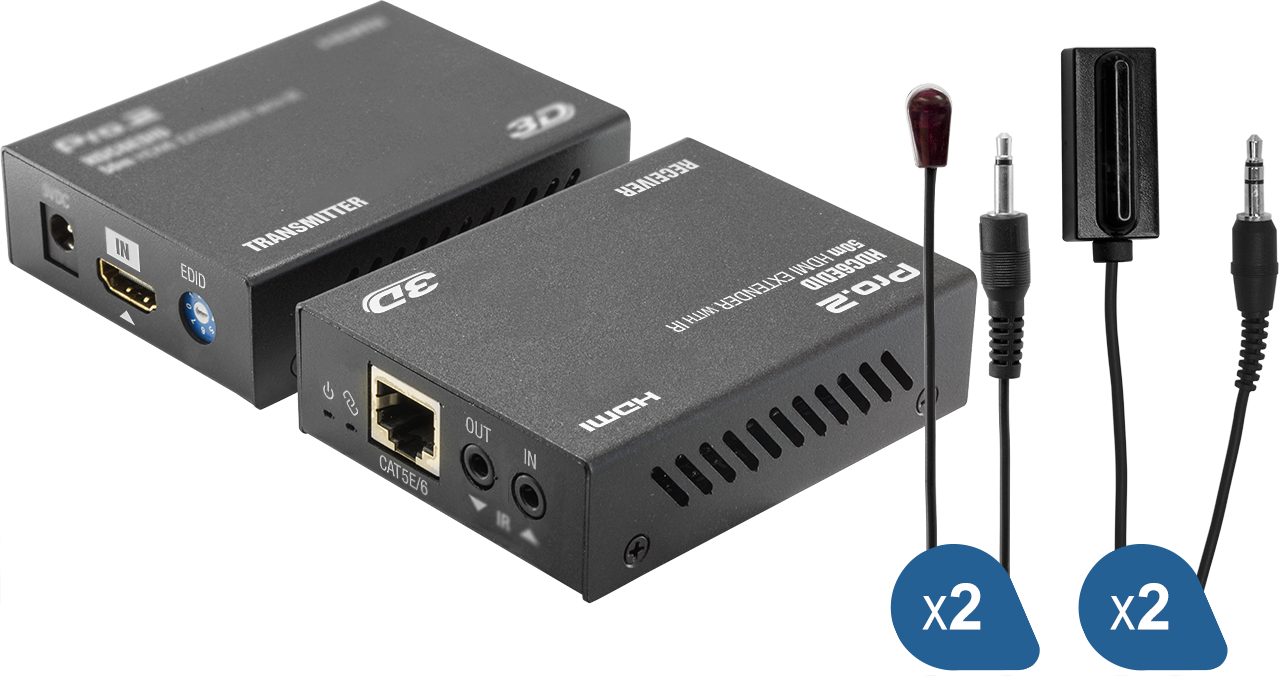

What are included in the package?

  • 1xHDMI Transmitter
  • 1xHDMI Receiver
  • 2 x IR TX Emitter
  • 2 x IR RX Receiver
  • 2 x 5V / 1A DC Adapter (Australian approval)
  • User Manual
Transmission Distance 1080p up to 50m*
Operating Temperature Range −5 to +35°C
Operating Humidity Range 5 to 90% RH (No Condensation)
Data transfer speed 6.75Gbps

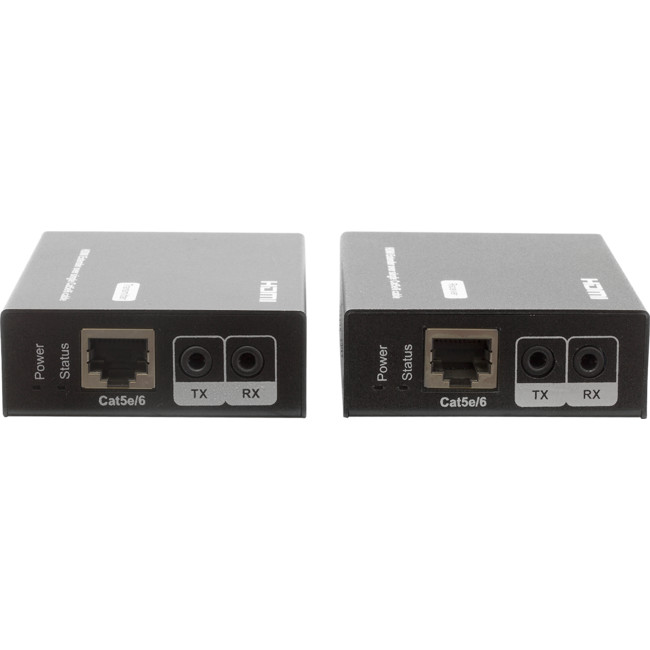

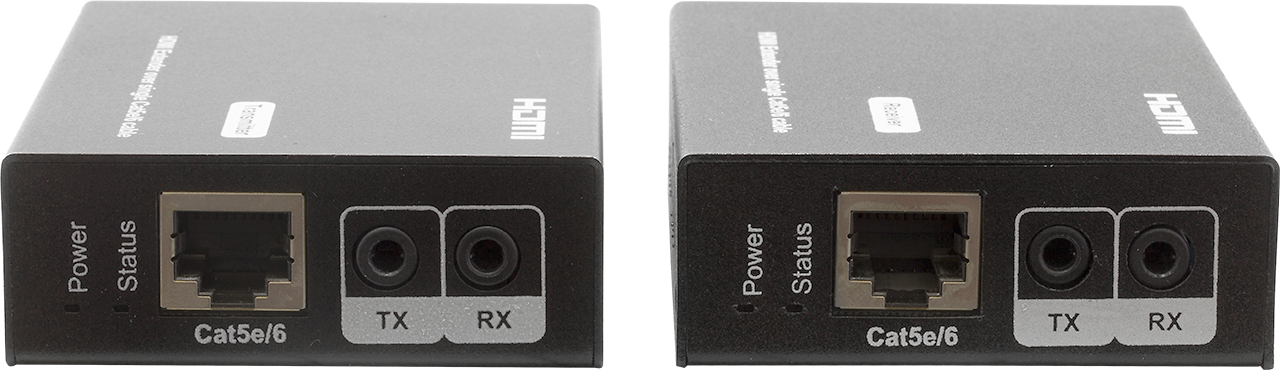

Connectors HDMI Receptacle x 2
RJ45 Receptacle x 2
Power DC Receptacle x 2
3.5mm stereo Receptacle x 2 (for IR TX and RX cable)
Resolution outputs 1080p/​1080i/​720p/​576p/​480p/​576i/​480i
Video colour bit supported 24bit
Audio format supported DTS-HD Master Audio, Dolby True HD, multi-channel 5.1, stereo etc
Output Video Signal HDMI + HDCP
Dimensions (HxWxD) 65 x 24.1 x 85mm
Power supply 5V DC Power supply (Included)
Power consumption 1.5W (MAX) (TX:0.5W, RX:0.3W)
Net Weight 319g
IR wavelength & frequency Wavelength: 940nm IR Frequency: 38KHz – 56KHz

*Note: 50m distance is under perfect transmission conditions including straight cable runs with no electrical interference, bends, kinks, patch panels or wall outlets.

FAQ

Does this unit work with the new Foxtel iQ3?
Yes. Just make sure your IR emitter is placed in the correct location. See the image below.

Why is it not working well as it suppose to?
Please make sure IEEE-568B type solid cable is being used.
