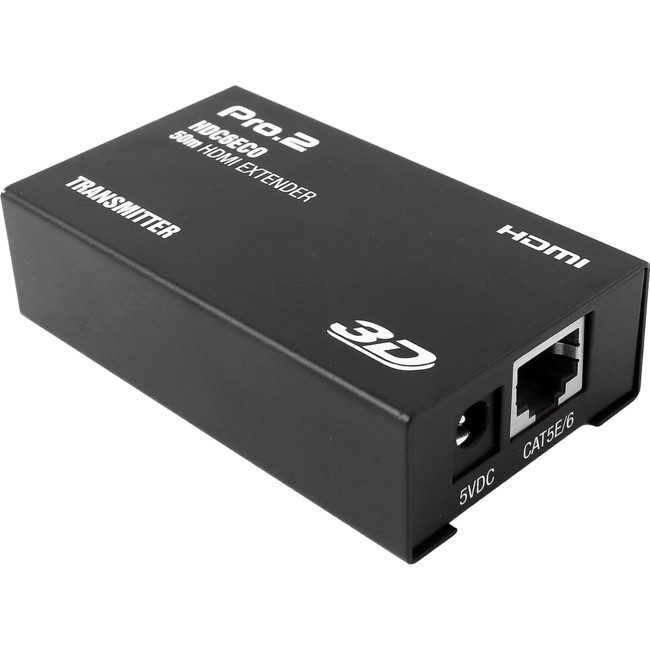

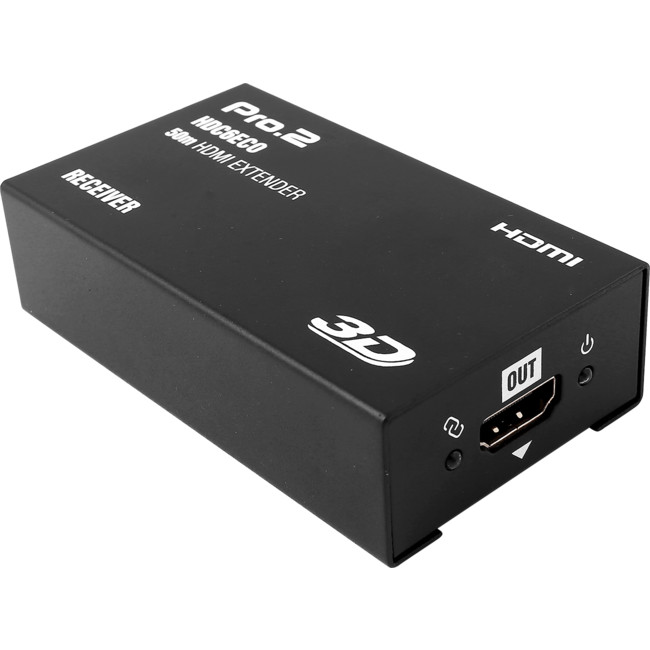

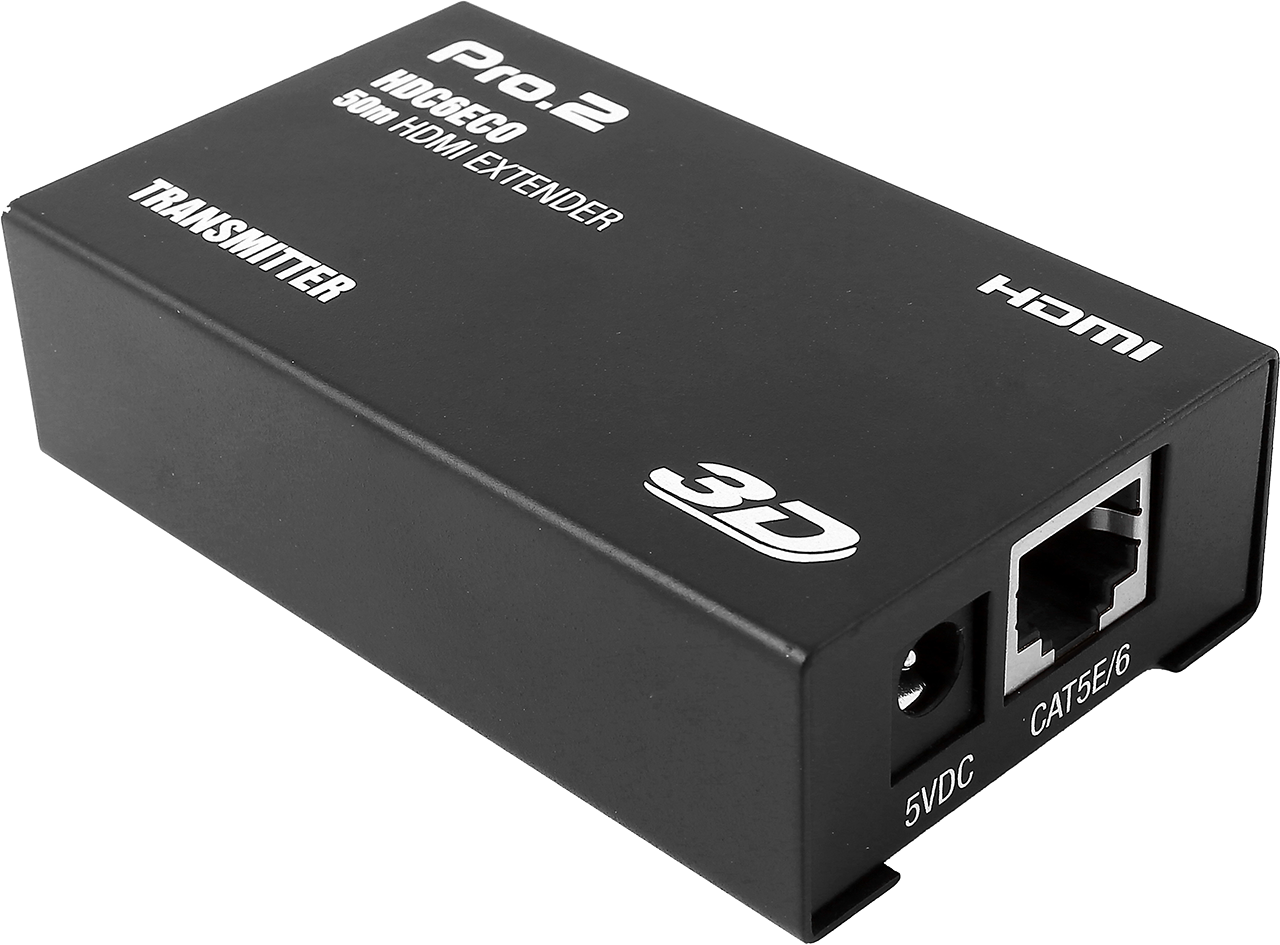

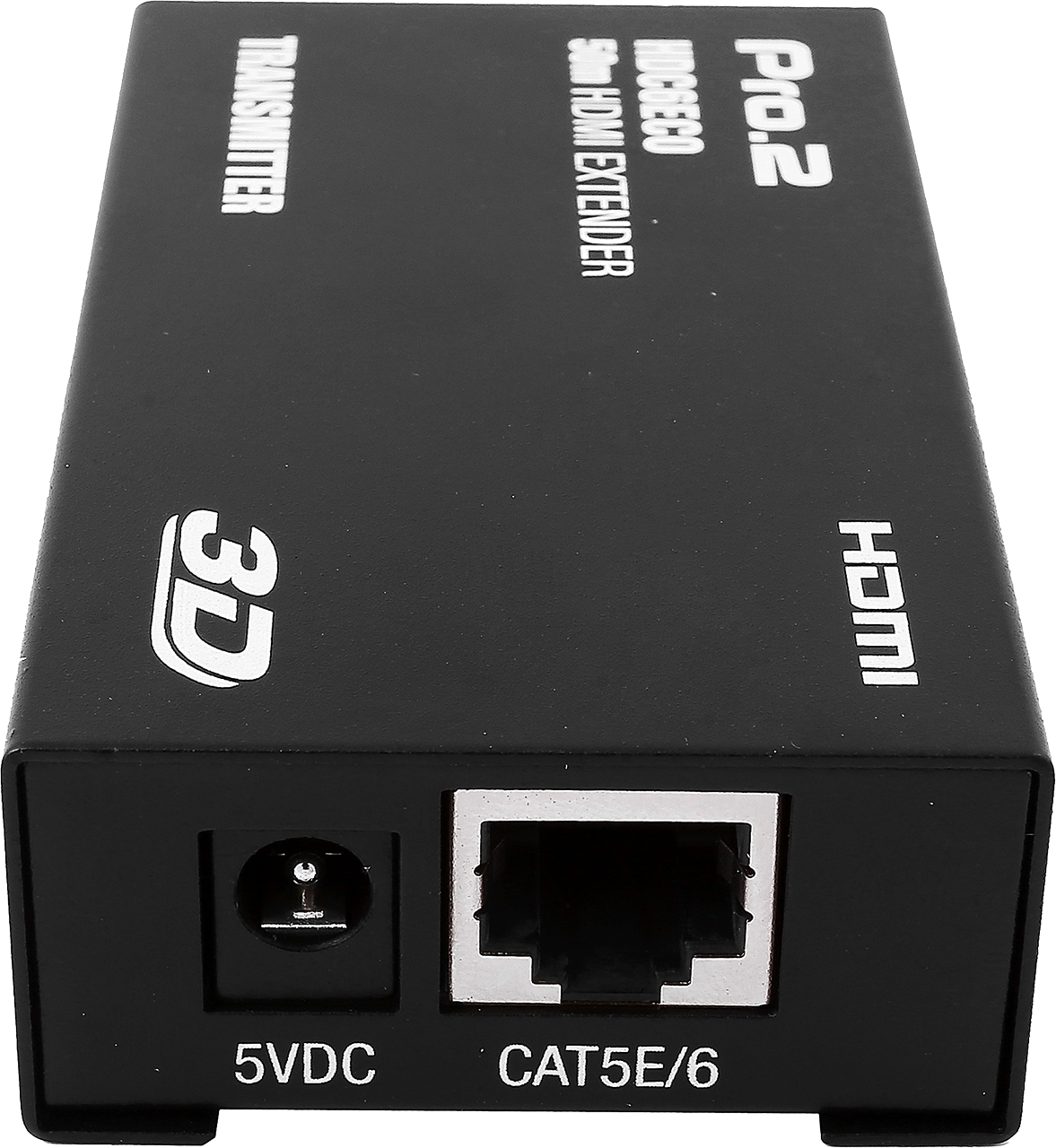

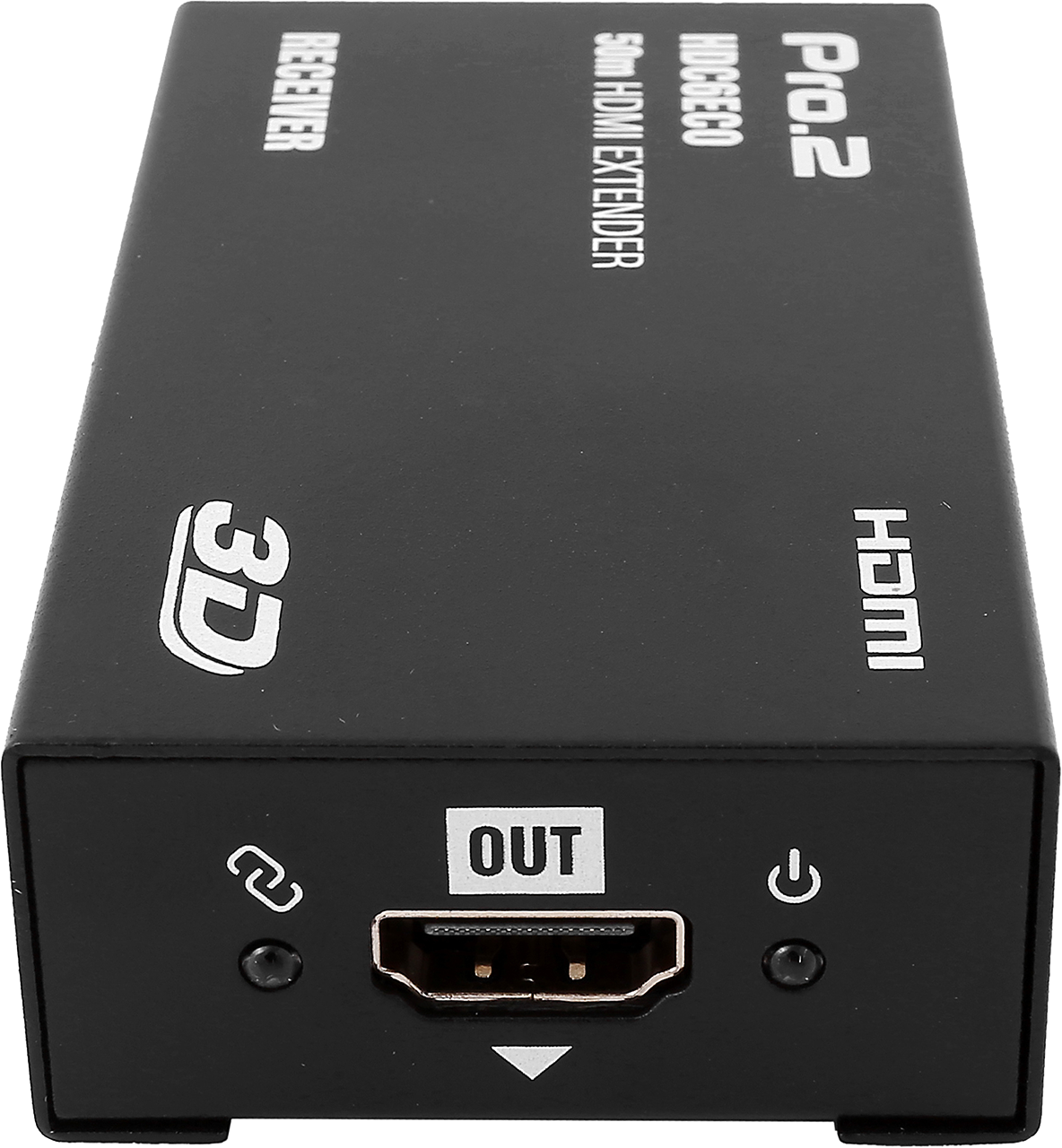

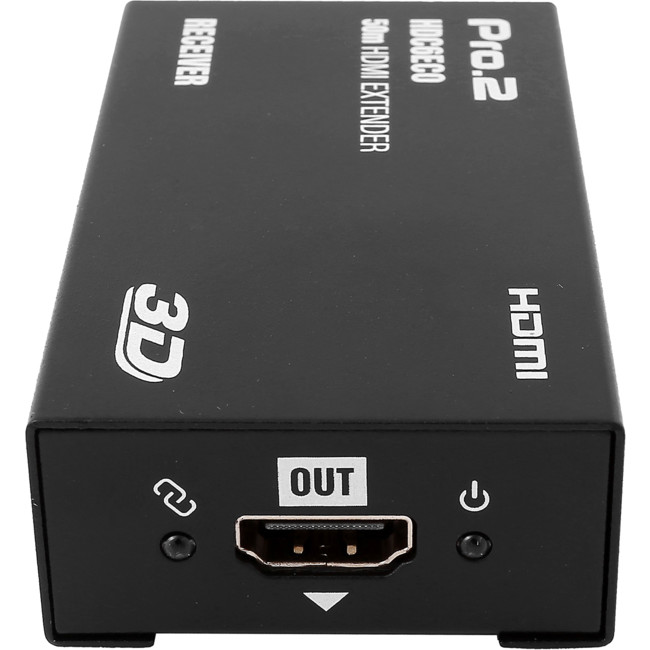

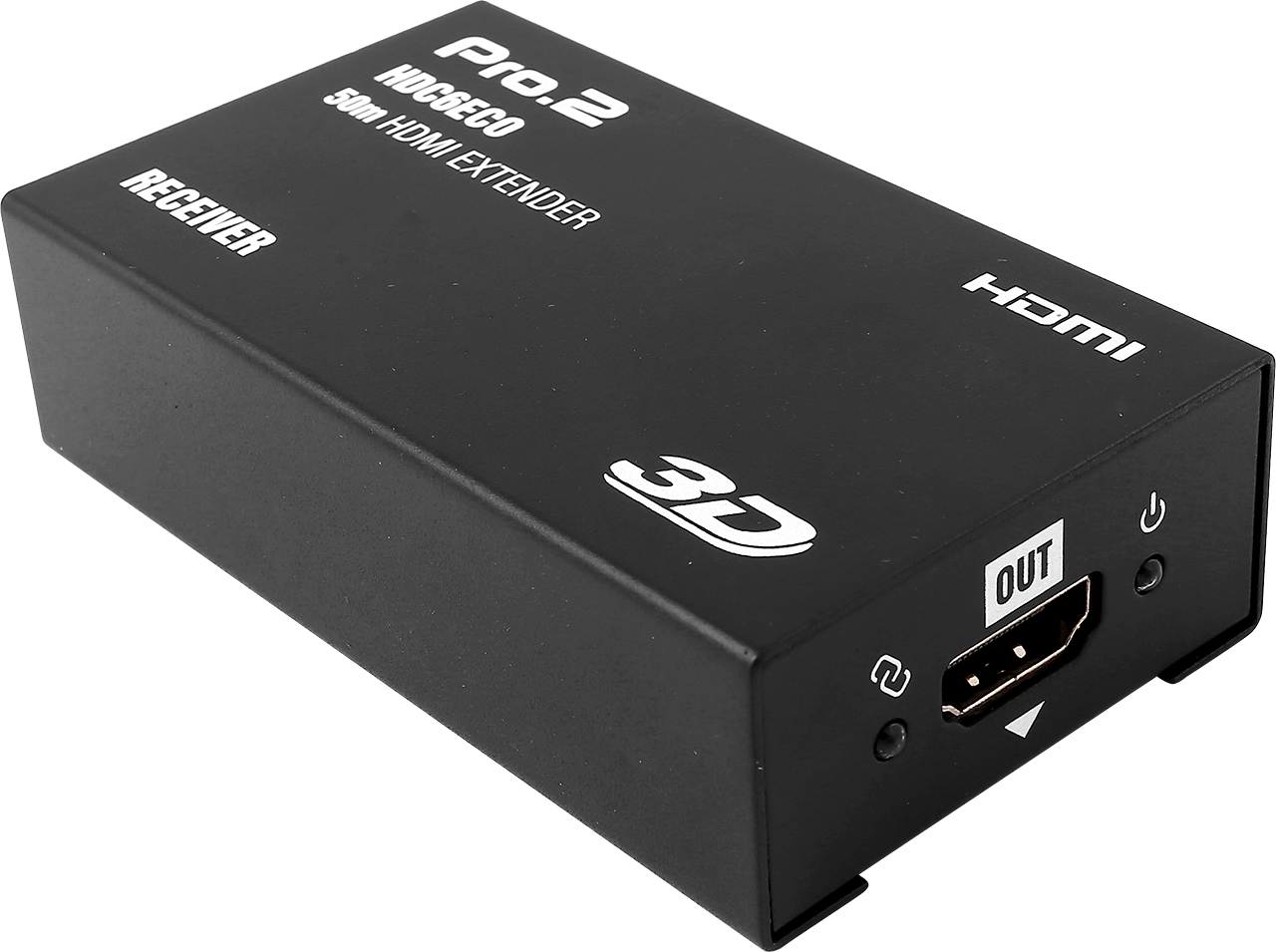

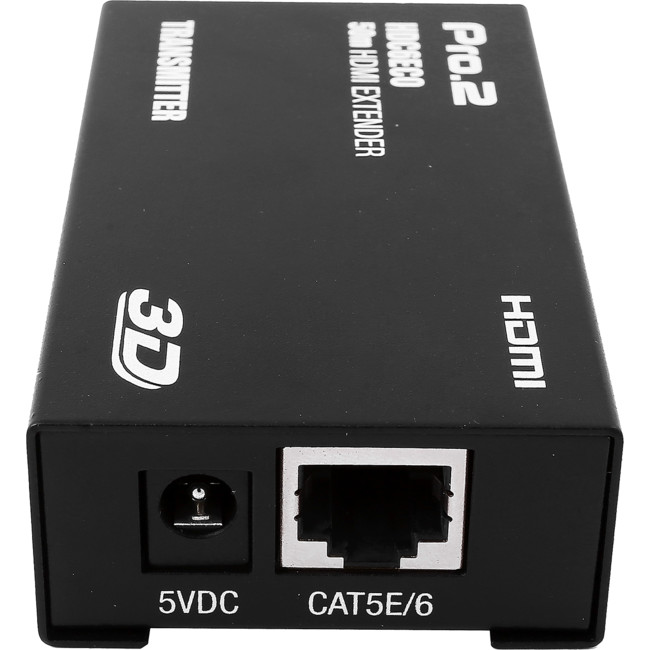

HDC6ECO HDMI OVER SINGLE CAT6 EXTENDER

Features

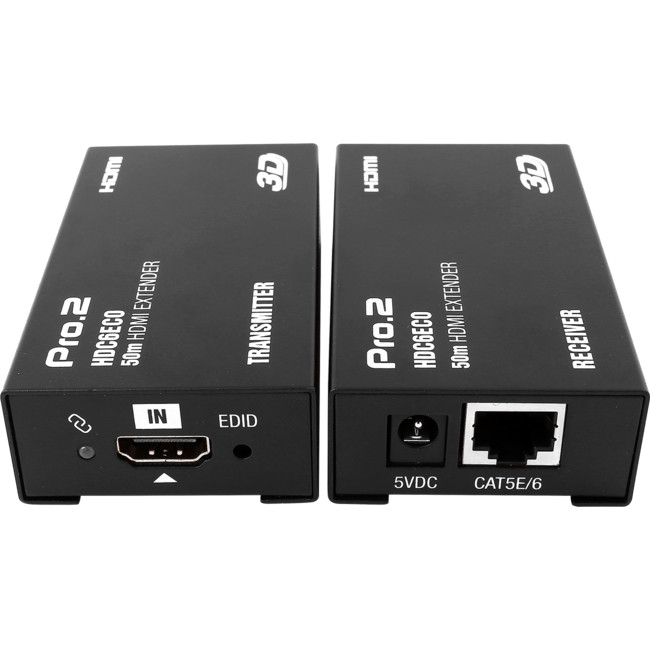

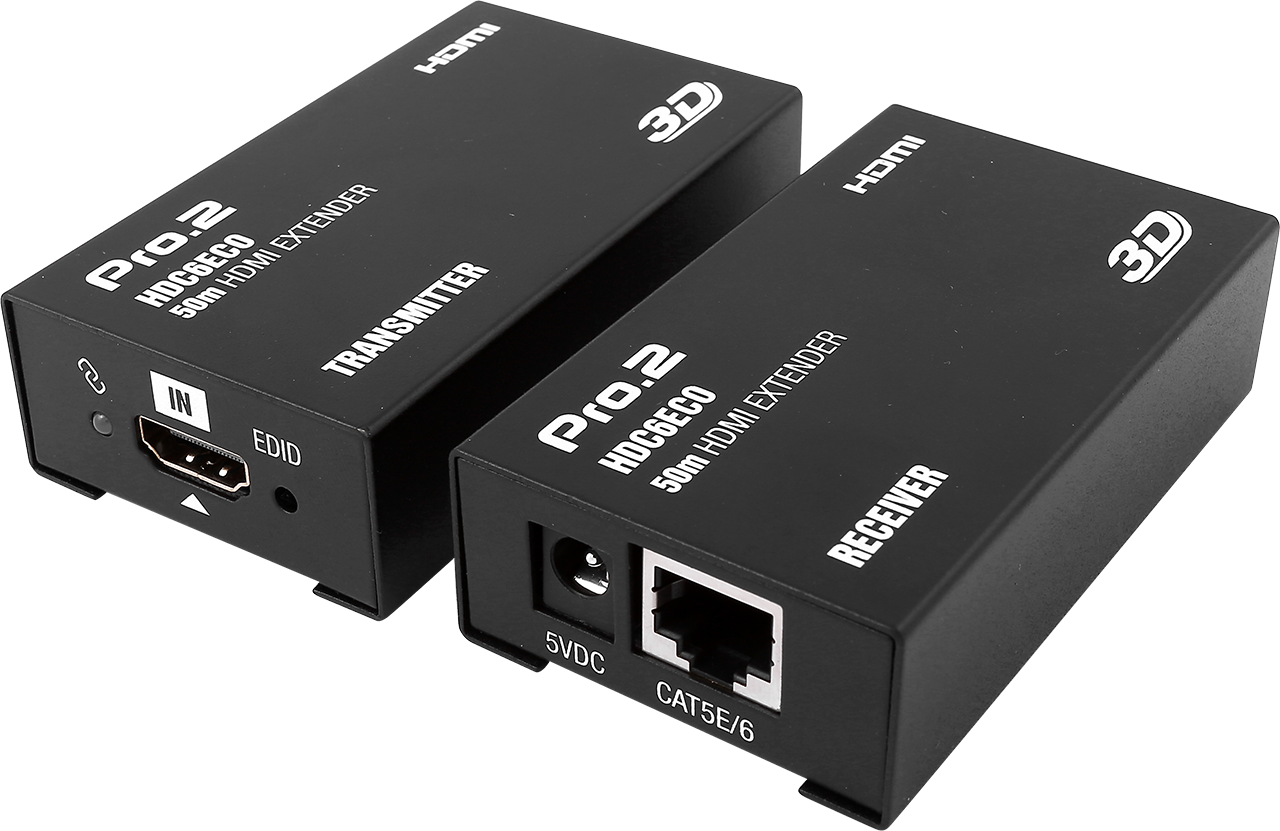

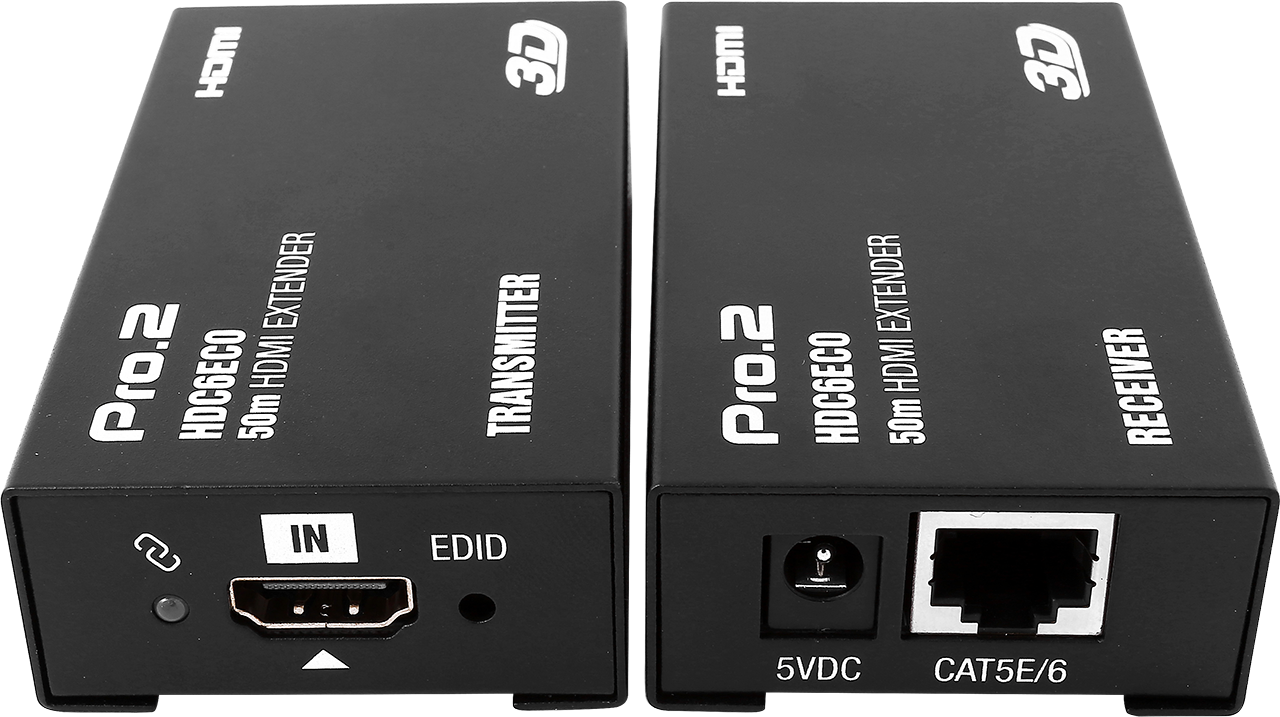

  • Each set includes one transmitter and one receiver
  • Easy installation, no need to do extra setting
  • Transmit HDMI signal over 50m via single Cat5e/​6 without signal loss
  • The CAT5e/​6 follows standard of IEEE-568B
  • Support high definition resolution up to Full HD 1080p
  • Support Dolby True-HD, DTS-HD Master audio
  • EDID reading and saving from display
  • Bandwidth can be up to 6.75 Gbps
  • Deep colour up to 36 bit
  • 3D compatible
  • 2x DC 5V 1A power supply (included)
  • 4K/​2K incompatible
Got the right cable?

Please note: IEEE-568B standard cables are recommended for this kit.

Wiring diagram

Specifications

Operating Temperature Range −5 to +35°C
Operating Humidity Range 5 to 90%RH (No Condensation)
Input Video Signal 0.5-1.0 Volts P-P
Input DDC Signal 5 volts p-p (TTL)
Support Video Format DTV/​HDTV 480i/​576i/​480P/​576P/​720P/​1080i/​1080P
3D video
Video Output HDMI, HDCP
Support Audio Format DTS-HD Master Audio Dolby True-HD etc.
Transmission Distance 1080P 8-bit 50m (Maximum) over single CAT5E/​6 / 24AWG/​Solid
Power consumption 5 watts (Maximum)
Dimension (L×W×H) 83x48x25mm
Net Weight 250g (Pair)
