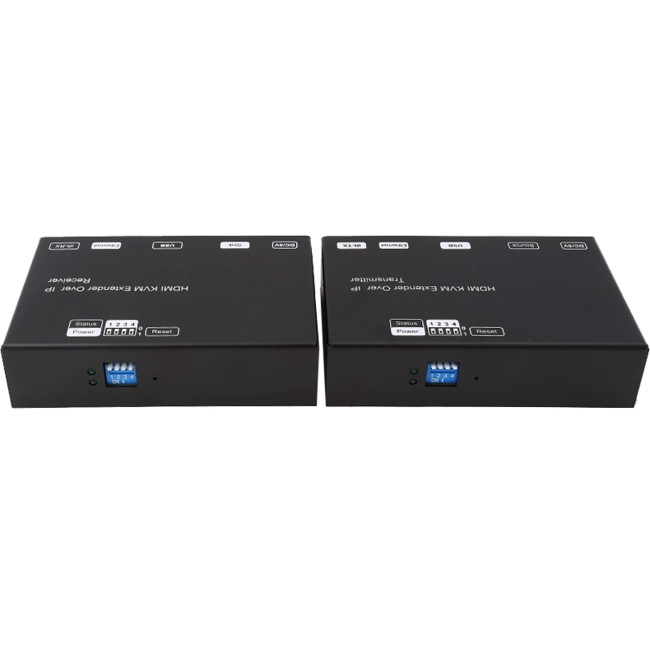

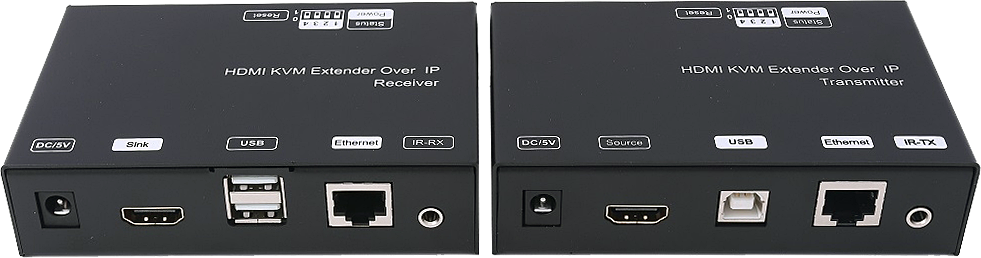

HDMIKVM HDMI USB KVM EXTENDER OVER IP

Features

  • 1080p and 720p video compatible, plus 2-channel audio
  • Uses off-the-shelf gigabit IP switches for extension anddistribution
  • Plug-and-play operation-no programming or setup required
  • Extends 1080p HDMI signals up to 120m over a single Cat5e/​6 cable
  • Traffic can be unicast, multicast or broadcast for different applications

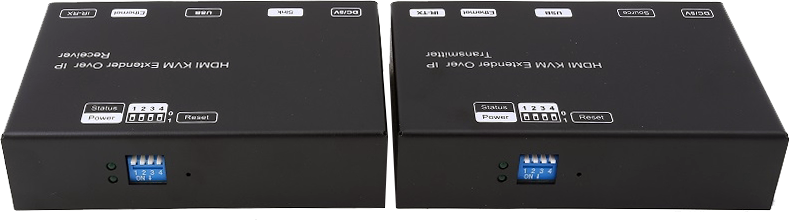

  • Build-in DIP swith to change Group ID for multiple displays
  • Can be cascaded for many layers by daisychain Ethernet switches
  • Allows wide-band IR (38-56KHZ) remote control of sources devices
  • HDCP Compatible
  • Supports USB
  • DC 5V Power supply (included)

Wiring Diagram

Specifications

Operating Temperature Range −5 to 35°C
Operating Humidity Range 5 to 90%RH (No Condensation)
Support Video Format DTV/​HDTV:480i/​576i/​480P/​576P/​720P/​1080i/​1080P
Output Video HDMI, HDCP
Transmission Distance 1080P @60Hz 120m (Maximum) over single CAT5E/​6 / 24AWG/​Solid
Power consumption 5V/​1A DC Power consumption: Max. 4W
Dimension (L×W×H) L94xW93.5xH24.6mm
IR frequency range 38-56kHz
Net Weight Receiver:255g, Transmitter:255g
TX Default IP address:192.168.168.55;
MAC address:00:0b:78:00:60:01
Group IP address: 239.168.168.xx, (xx is the value of bits[2:0])
RX Default IP address:192.168.168.56;
MAC address:00:0b:78:00:60:02
Group IP address: 239.168.168.xx, (xx is the value of bits[2:0])

Note: IP and MAC address must be different for one TX to many RX or many TX to many RX configuration.
