Features

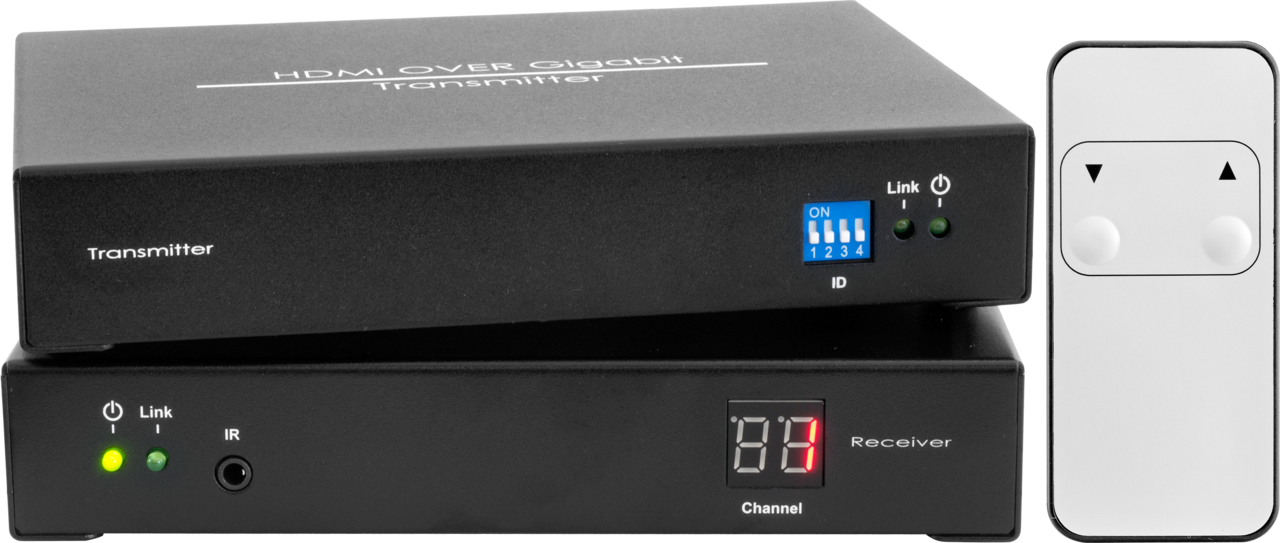

The HDMIIPLR HDMI over CAT6 Extender will send HDMI signal (up to 1080p@60Hz) with Deep Colour™ support over a single CAT6 cable to a distance of up to 100 metres.
Use the HDMIIPLR and the HDMIIPLRS Spare Receiver to create a system with up to 16 Sources (Transmitters) & 200 Outputs (Receivers)! IR Pass-through means no more running aseparate IR extender system to control your sources.
- HDCP Compliant
- Distribute HD signals in 576p / 720p / 1080p using a CAT6 cable
- 1080p resolution up to 100m/330ft
- Create a transmitter/receiver cascade to extend distance and build up a HDMI splitter system
-
Easy installation via a single CAT6 cable
– no need to adjust gain or equalizer settings - IR pass-through function to switch HDMI source device, IR frequency range: 38-56kHz
- High quality metal chassis
- No video quality loss
- VESA compatible mounting holes
- LED source input display
- IR Remote control for changing receiver source
Diagrams & Downloads
Specifications
| Video Amplifier Bandwidth | 225 MHz |
| Video Output | 1080p/60 and 1920×1200 max. res |
| Input DDC Signal | 5 Volts p-p (TTL); Input Video Signal: 1.2 Volts p-p |
| HDMI Connector | Type A, 19 Pin Female |
| Link Connector | RJ45 Shielded |
| Power Supply | 5V DC / Power Consumption: 5 Watts max. |
| Operating Temperature | 0°C – 40°C |
|
PERFORMANCE |
|
|
Accepted HDTV Resolutions |
480p, 576p, 720p, 1080i, 1080p |
|
Standard TV Resolution |
480i |
|
Maximum HDMI Cable Length |
Input: 15 feet Max, Output: 180 feet Max |
|
Video Bandwidth |
6.95Gbps |
|
Input Video Signal |
1.2 Volts P-P |
|
Input DDC Signal |
5.0 Volts P-P |
|

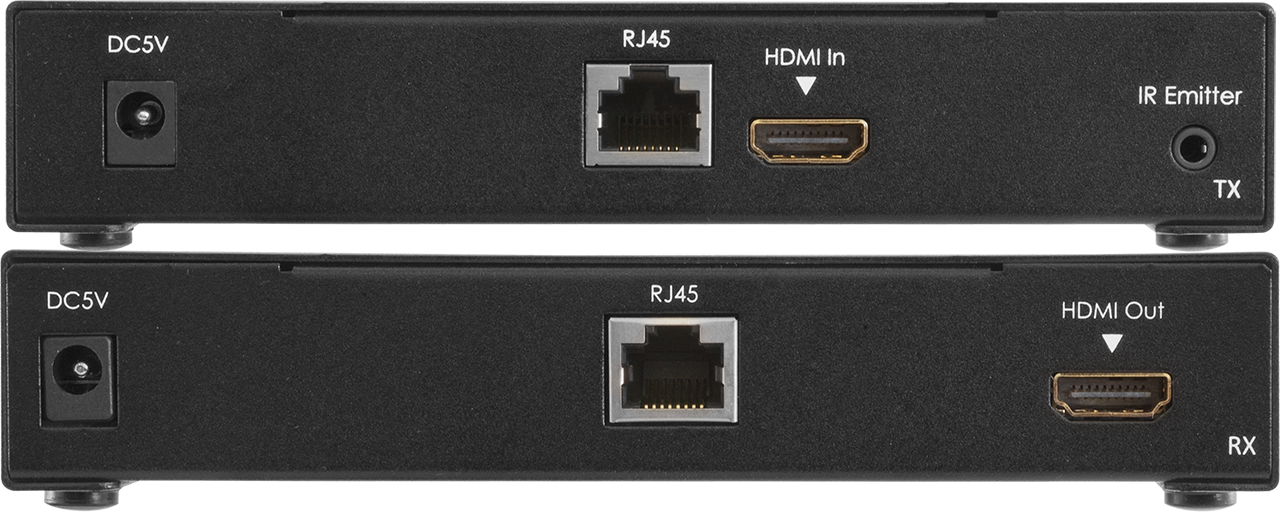

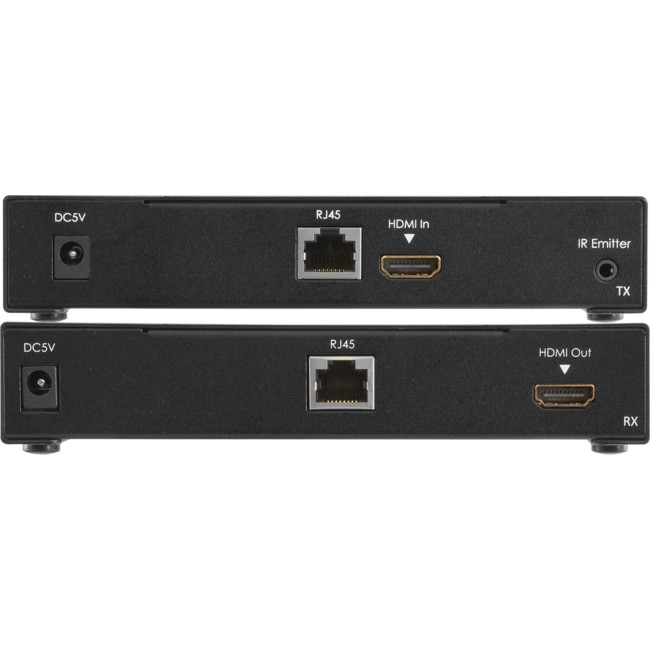

I/O CONNECTORS |
|
|
Transmitter |
|
|
Inputs |
1 HDMI-A 19PIN Socket |
|
Outputs |
1 RJ45 Jack |
|
1 3.5mm Jack-IR Emitter |
|
|
Receiver |
|
|
Inputs |
1 RJ45 Jack |
|
1 IR Receiver Module |
|
|
Outputs |
1 HDMI-A 19PIN Socket |
|
MECHNICAL |
|
|
Transmitter |
|
|
Dimensions (H-W-D) |
162.3×114.85x30mm |
|
Weight |
0.5kg |
|
Receiver |
|
|
Dimensions (H-W-D) |
162.3×141.85x30mm |
|
Weight |
0.5kg |
|
WARRANTY |
|
|
Limited Warranty |
1 Year Parts and Labor |
|
ENVIRONMENTAL |
|
|
Operating Temperature |
0° to 40°C (32°to 104°F) |
|
Operating Humidity |
10% to 85% (Non-condensing) |
|
Storage Temperature |
-20°to +60° (+20°to +140°F) |
|
Storage Humidity |
10% to 85% (Non-condensing) |
|
REMOTE CONTROL |
|
|
Infrared |
Yes (Sensor on front of receiver) |
| Pass-through | Yes; 38-56kHz frequency range |
|
POWER REQUIREMENTS |
|
|
External Power Supply |
5VDC@2A |
|
Power Consumption |
10 Watts (Max.) |
|
SAFETY |
|
|
Certificate |
FCC, CE, RoHS |
|
Power Adapter |
UL, CE, CSA, CEC, RoHS |
|
ACCESSORIES |
|
|
AC Power Adapter x 2 |
|
| IR emitter x 1 | |
|
IR sensor/receiver x 1 |
|
| Remote Control (IR) x 1 | |
|
Instruction Manual x 1 |
|
FAQs
- I’m inputting 1080i resolution from my Foxtel IQ2, yet my display is receiving 720P. Is this correct?
- The HDMIIPLR will output in 576P, 720P or 1080P. If your signal is 1080i, it will output 720P on the display.
- What was our measured current draw for the transmitter and receiver?
- The max. current draw that we measured was 1.1A (5V) for the transmitter and 0.9A (5V) for the receiver.
- Is there 3D support?
- Please note that the HDMIIPLR does not support 3D
- I added a new receiver/transmitter but I’m getting no picture
- If you have added a new spare receiver (HDMIIPLRS) or transmitter to your existing setup and are getting no picture, or an "Invalid Format" message, just makesure that your source device is set to output either 720p or1080p.
