PRO1351WP BLUETOOTH WALL PLATE AMP

Features

Use the PRO1351WP to power in-ceiling speakers with the audio from any Bluetooth enabled device, or other source device such as computers, DVD players, and TVs! Creates a neat, clean solution for permanent audio installations that makes it perfect for entertaining areas, and even bedrooms

Perfect for upgrading existing wallplate amp modules withits rear/​in-wall power and audio connections! Add Bluetooth to your existing multi-room local input amp.

The unique Decora-style wallplate design ensures a professional and clean installation without the need to loose or extra ‘boxes’ lying around! Great for indoor/​outdoor speaker systems where simple and discrete convenience is paramount.

Ideal for use with:

  • Mobile devices with Bluetooth audio
  • DVD players
  • TV’s
  • Indoor/​Outdoor Speakers
  • In-ceiling/​in-wall Speakers
  • Bluetooth wireles audio receiver built-in
  • Switch between Bluetooth or 3.5mm (line) inputs

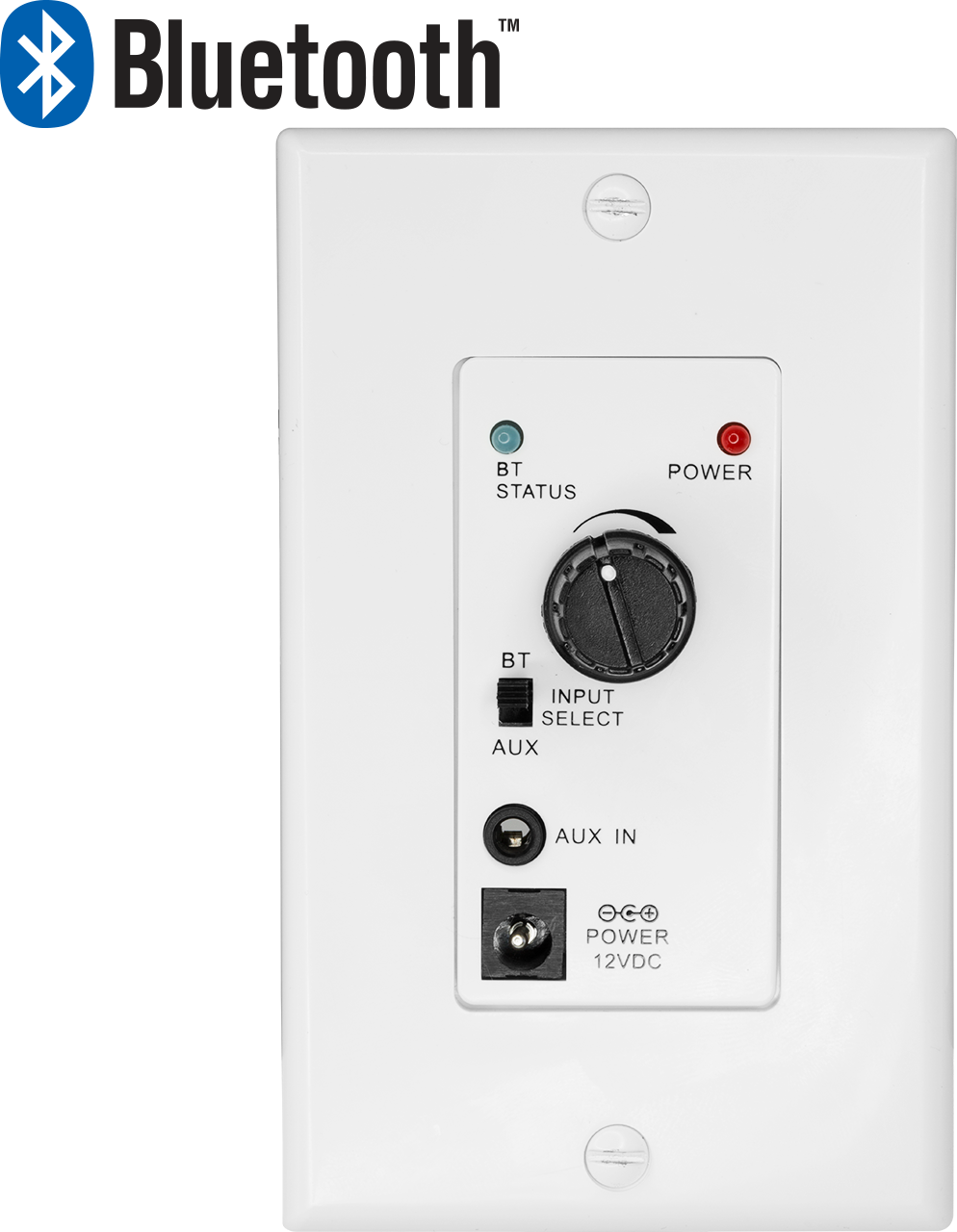

  • Discrete and compact Decora-style wall-plate design
  • Volume control
  • Suitable for 4Ω, 6Ω and 8Ω speakers
  • Speaker screw terminals handle wire sizes from 24 to 12 gauge

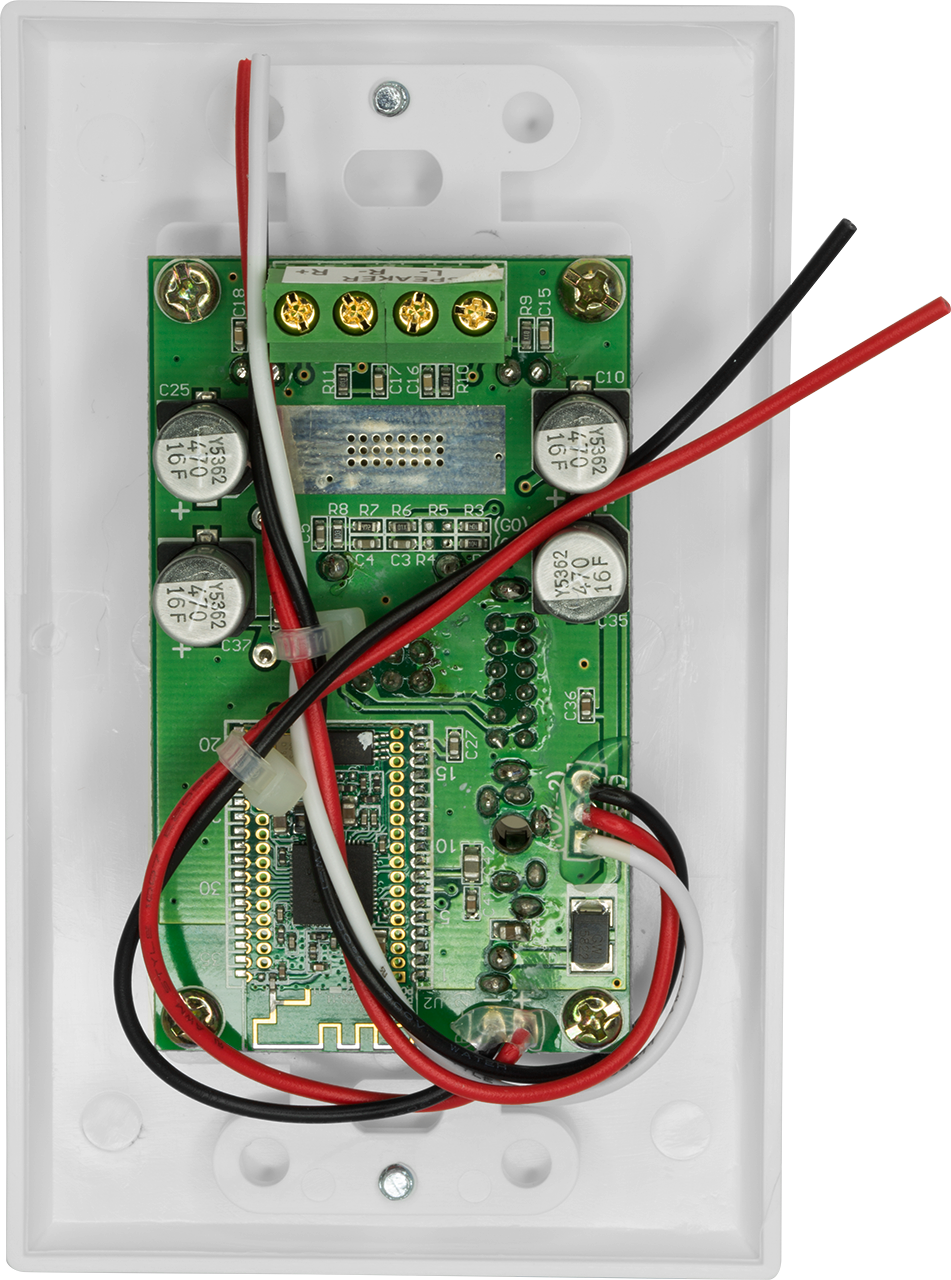

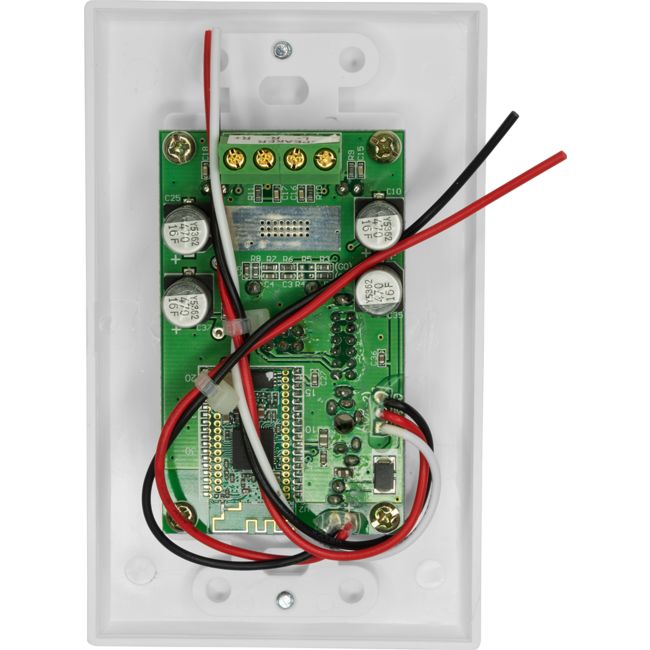

  • Rear and front Power and Audio input connections for neat installation
  • Includes Speaker Protection circuit

Specifications

.rpg_table { border-collapse: collapse; margin: 15px; } .rpg_table th, .rpg_table td { padding: 5px; line-height:30px; } .rpg_table td, .rpg_table th { text-align: left; vertical-align: top; border-top: solid 1px #cccccc; border-bottom: solid 1px #cccccc; } .rpg_table th, .rpg_table .header { font-weight: bold; text-align: left } .rpg_table th[align=center], .rpg_table td[align=center] { text-align:center !important; } .rpg_table .spacer { border: 0 !important; width:15px !important; } .rpg_table .no-wrap { white-space: nowrap !important; }
Audio Inputs Bluetooth Receiver or stereo audio line level
Bluetooth Receive Distance 10 Metres
Bluetooth Version 3.0 EDR compliant
Power Amplifier Type Stereo Class-D
Output power 15W (rms) per channel (@ RL=4 ohm)
THD+N 0.06 % (@ RL=8 ohm, f = 1 kHz)
Minimum Load Resistance 4 Ohm

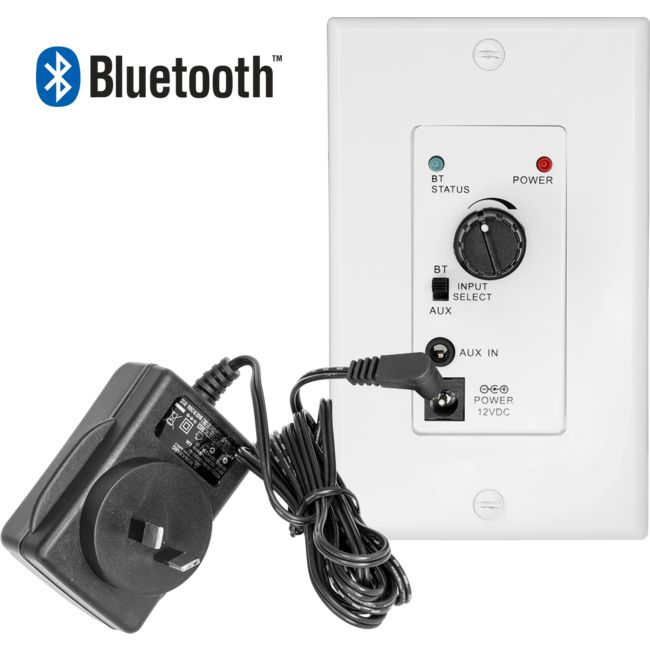

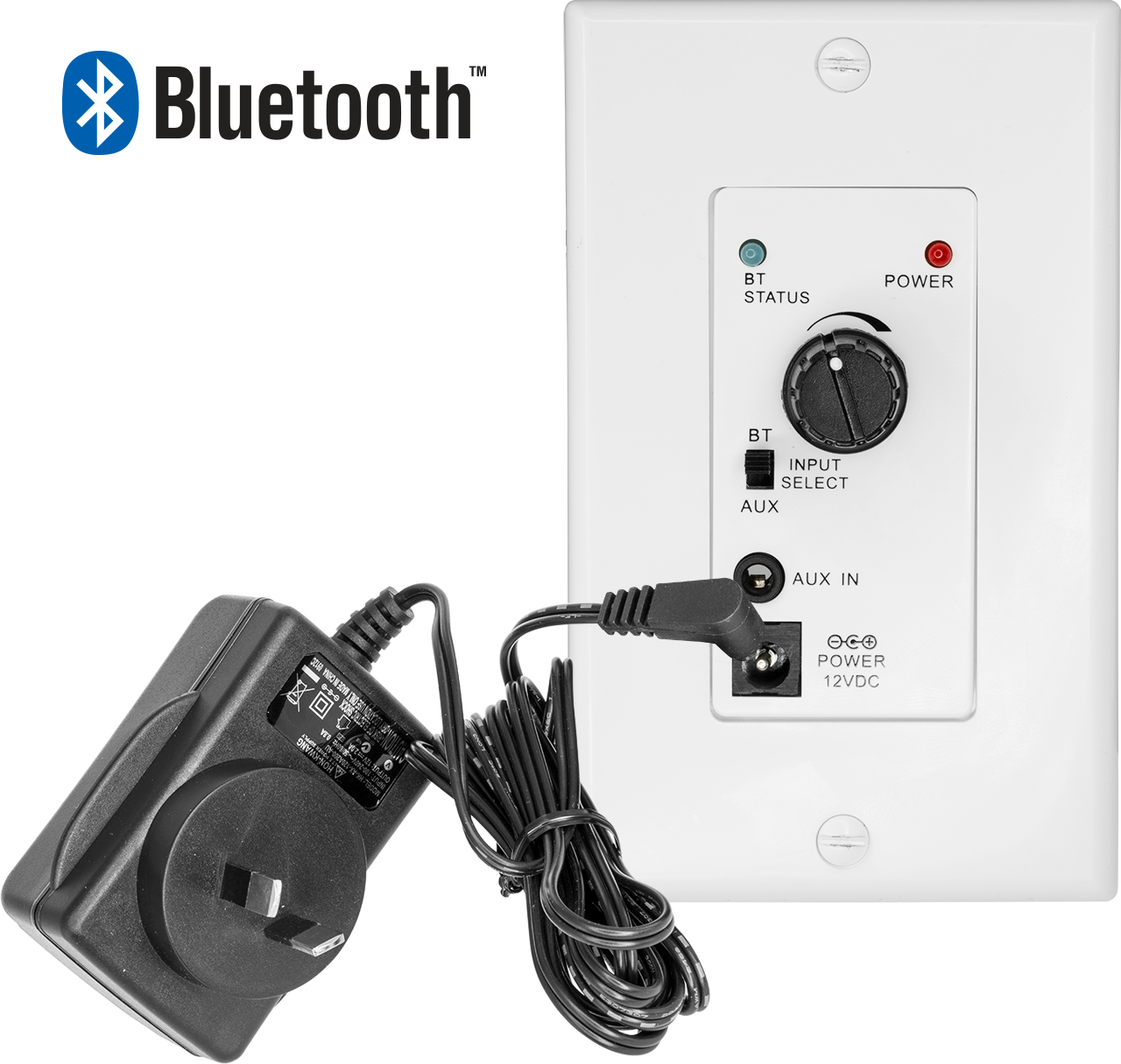

Power Source 12 VDC/​2A (INCLUDED)
